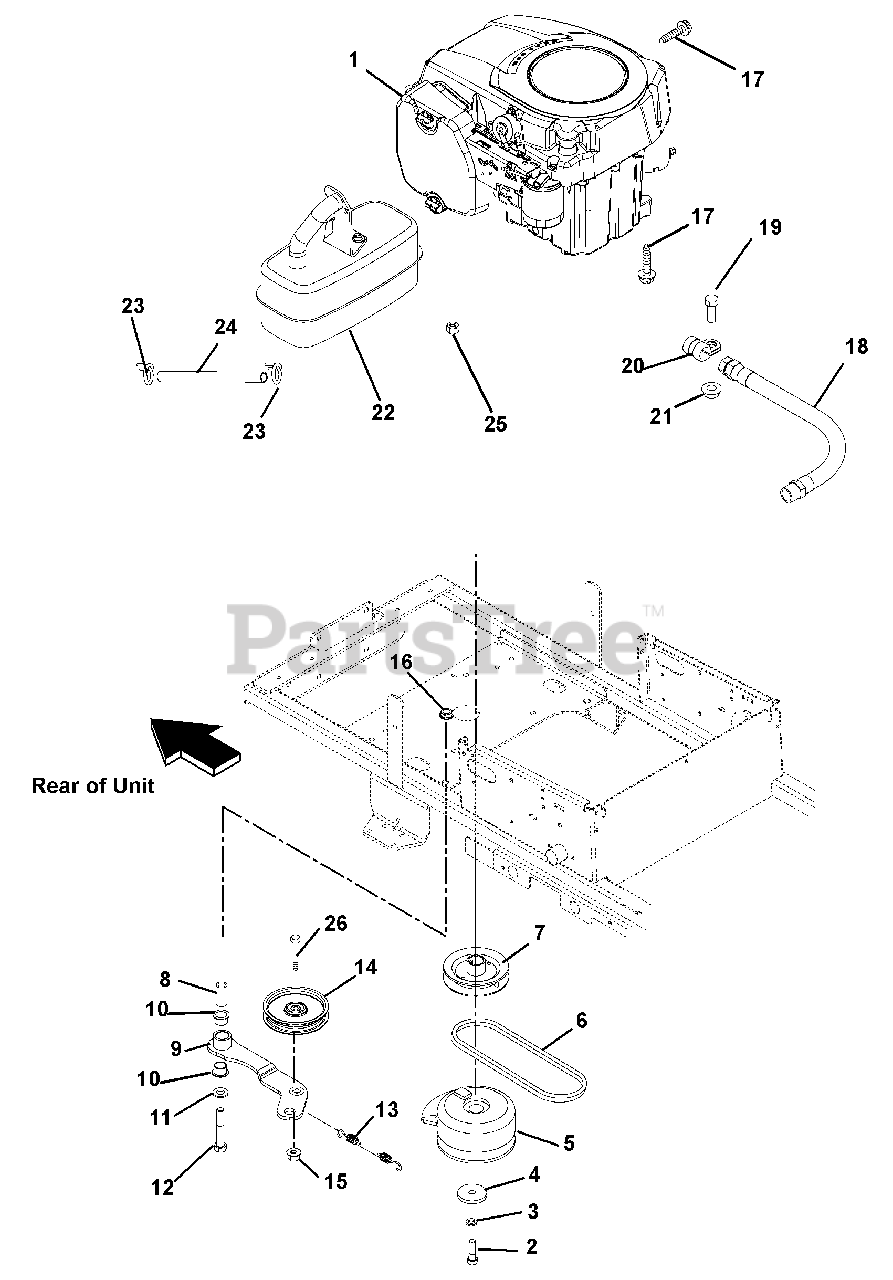

915092 (ZT XL 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 08200103

Engine, 16 HP Kohler Single

$

$

Not available

2

Gravely 05900026

7/16 - 20 x 3-1/4 HHCS Grade 8

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

4

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

5

Gravely 00617400

RMS Clutch, Electric
(Superseded to 03292300)

$374.99

$

Usually ships in 4-12 days

0

6

Gravely 07237900

Belt, HA 61.24 Wrapped

$50.99

$

Usually ships in 4-12 days

0

7

Gravely 00480700

Sheave, Ground Drive
(Superseded to 51518400)

$103.99

$

In Stock, only 3 left!

0

8

Gravely 05516400

Bushing, Sleave .500 x .750 x .1.560

$5.99

$

In Stock, only 4 left!

0

9

Gravely 00604000

Weldment, Idler

$103.99

$

In Stock, only 1 left!

0

10

Gravely 05500039

Bushing, Flange .75 x .875 x .625 x 1.125

$7.49

$

In Stock, only 2 left!

0

11

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05960000

Bolt, Hex .50-13 x 3.25
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

14

Gravely 07312500

Idler, Flanged 4.00
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

15

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 00588700

Hose, Hydraulic, .38-11-0K M6N0-F6J0

$50.99

$

Usually ships in 4-12 days

0

19

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06900036

Clamp, Cushioned Steel .75

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00435800

Muffler, Weldment
(Superseded to 03373800)

$104.99

$

Usually ships in 4-12 days

0

23

Gravely 06939100

Clamp, Hose Wire .490/.510 x .116

$3.99

$

In Stock, Qty 15

0

24

Gravely 00924300

Gas Line, Bulk 1/4" I.D.x 28"
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06500007

Nut, Top Lock Flange 8 x 1.25

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 05963300

Bolt, Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!
