915092 (ZT XL 1634) - Gravely 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Discharge Chute Parts Diagram

34" Zero-Turn Mower, 16hp Kohler

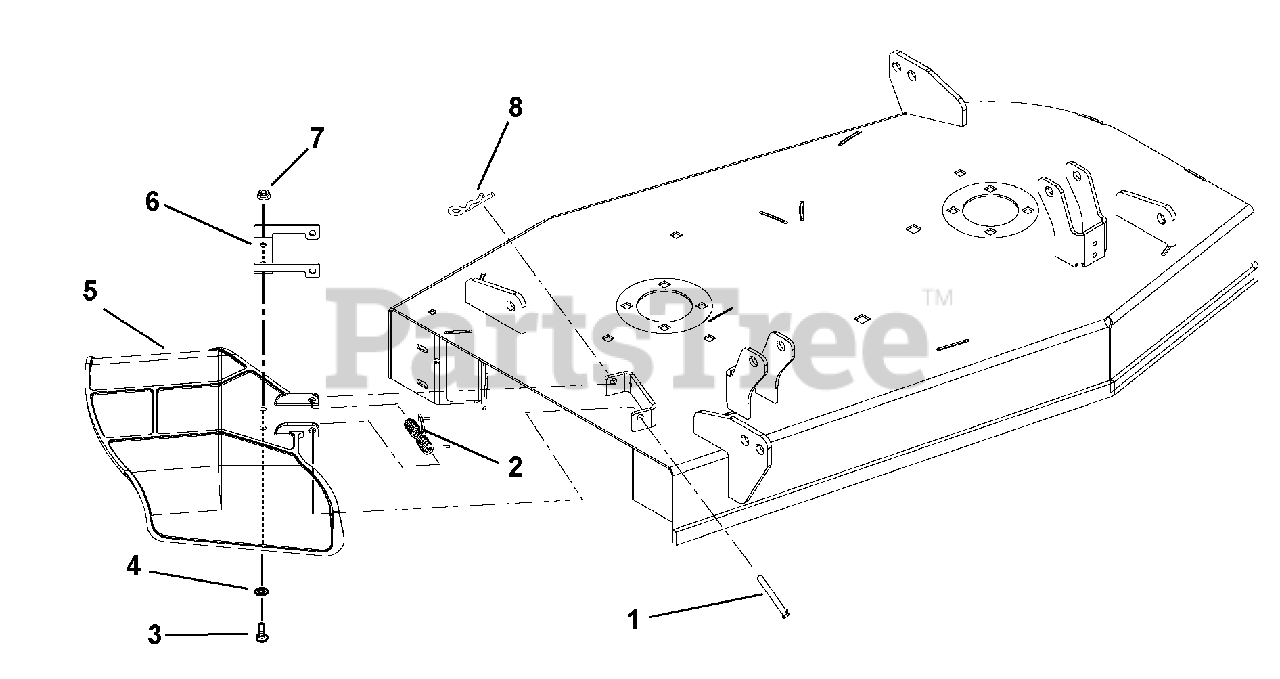

Discharge Chute Parts Diagram

  • Title
1

Gravely 06800002

Pin, 5/16 x 3.88"

$9.49

$

Usually ships in 4-12 days

0

2

Gravely 01258100

Spring, Torsion

$9.49

$

In Stock, Qty 8

0

3

Gravely 05920900

Screw, Socket Head, Button Head .31-18 x .75

$3.99

$

In Stock, only 2 left!

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00499900

Molded Chute
(Superseded to 03994300)

$54.99

$

In Stock, only 1 left!

0

6

Gravely 00662651

Chute Reinforcement

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 06543100

Nut, Locking, Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06713500

Pin, Hair .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0
