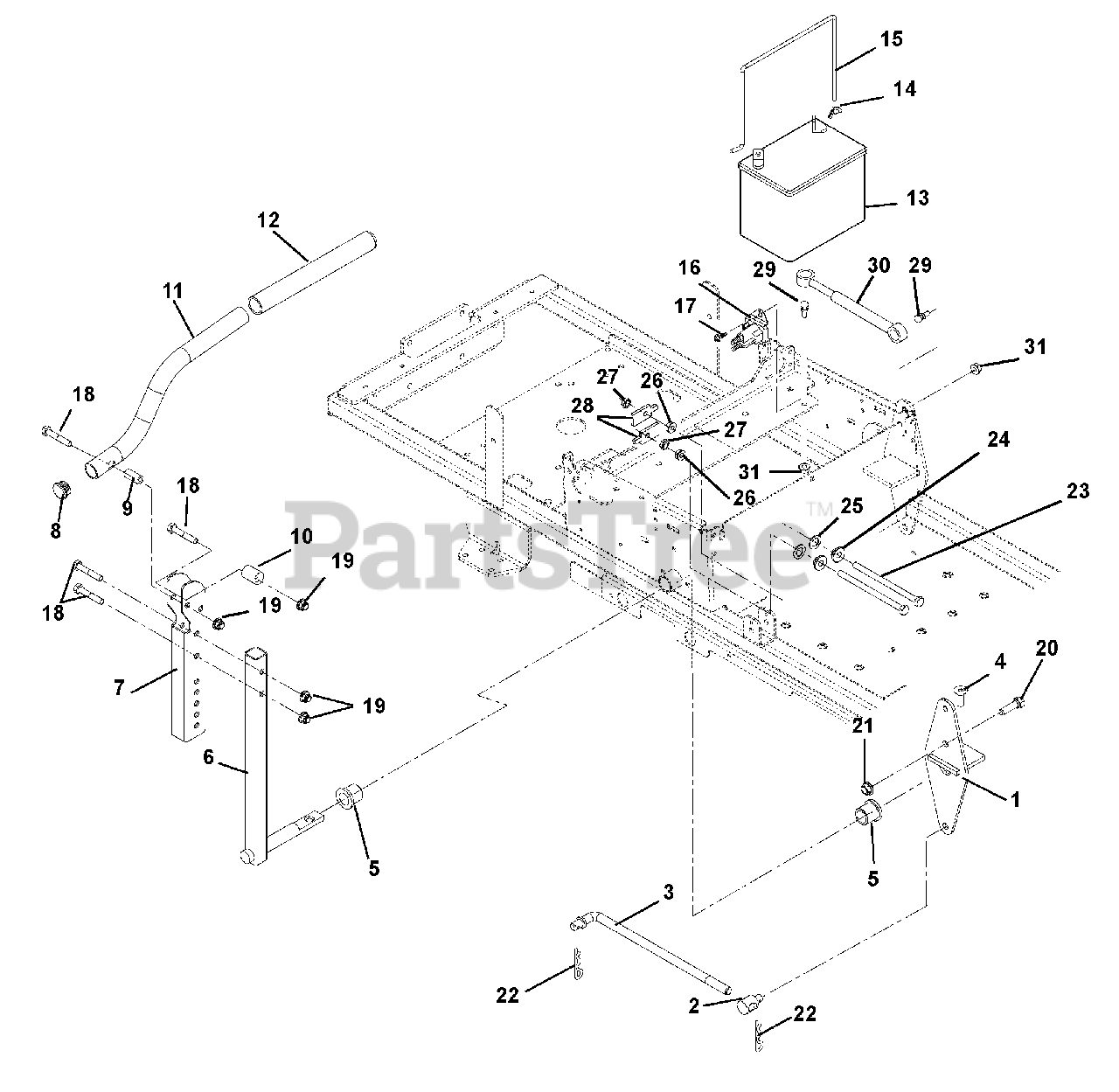

915089 (1634) - Ariens Zoom 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Steering Controls - SN under 50,000 Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Kohler

Steering Controls - SN under 50,000 Parts Diagram

  • Title

1

Ariens 00477451

CONTROL LINK WELDMENT

$

$

Not available

2

Ariens 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

3

Ariens 00292100

LINK,WIREFORM

$

$

Not available

4

Ariens 05900018

BOLT, 3/8-16X1 FSHCS PLN

$

$

Not available

5

Ariens 01591100

BUSHING-1"X.75"X1"

$

$

Not available

6

Ariens 00477151

WELDMENT, CONTROL ARM

$

$

Not available

7

Ariens 00481751

CHANNEL, UPPER HANDLEBAR

$44.99

$

Usually ships in 4-12 days

0

8

Ariens 07533300

CAPLUG, HANDLEBAR

$2.49

$

In Stock, only 3 left!

0

9

Ariens 00364900

BSHG, SPCR .330X.500X1.01 PM

$6.49

$

In Stock, only 2 left!

0

10

Ariens 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, only 4 left!

0

11

Ariens 00354951

HANDLE BAR

$

$

Not available

12

Ariens 01570000

GRIP - HANDLEBAR

$17.99

$

In Stock, only 2 left!

0

13

Battery, Exide Sealed Maintenance Free U1-250 (Purchase replacement locally)

Note: (Purchase replacement locally)

$

$

Not available

14

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

15

Ariens 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

16

Ariens 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

17

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

19

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 05900027

BLT-HEX,5/16-18X5 G2 HH YWZC

$

$

Not available

24

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 1 left!

0

25

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 1 left!

0

26

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 00581600

STOP TAB

$

$

Not available

29

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

30

Ariens 09273400

DAMPER, CONTROL

$71.99

$

In Stock, only 4 left!

0

31

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
