915089 (1634) - Ariens Zoom 34" Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) Parking Brake - SN 50,000 and up Parts Diagram

Zoom 34" Zero-Turn Mower, 16hp Kohler

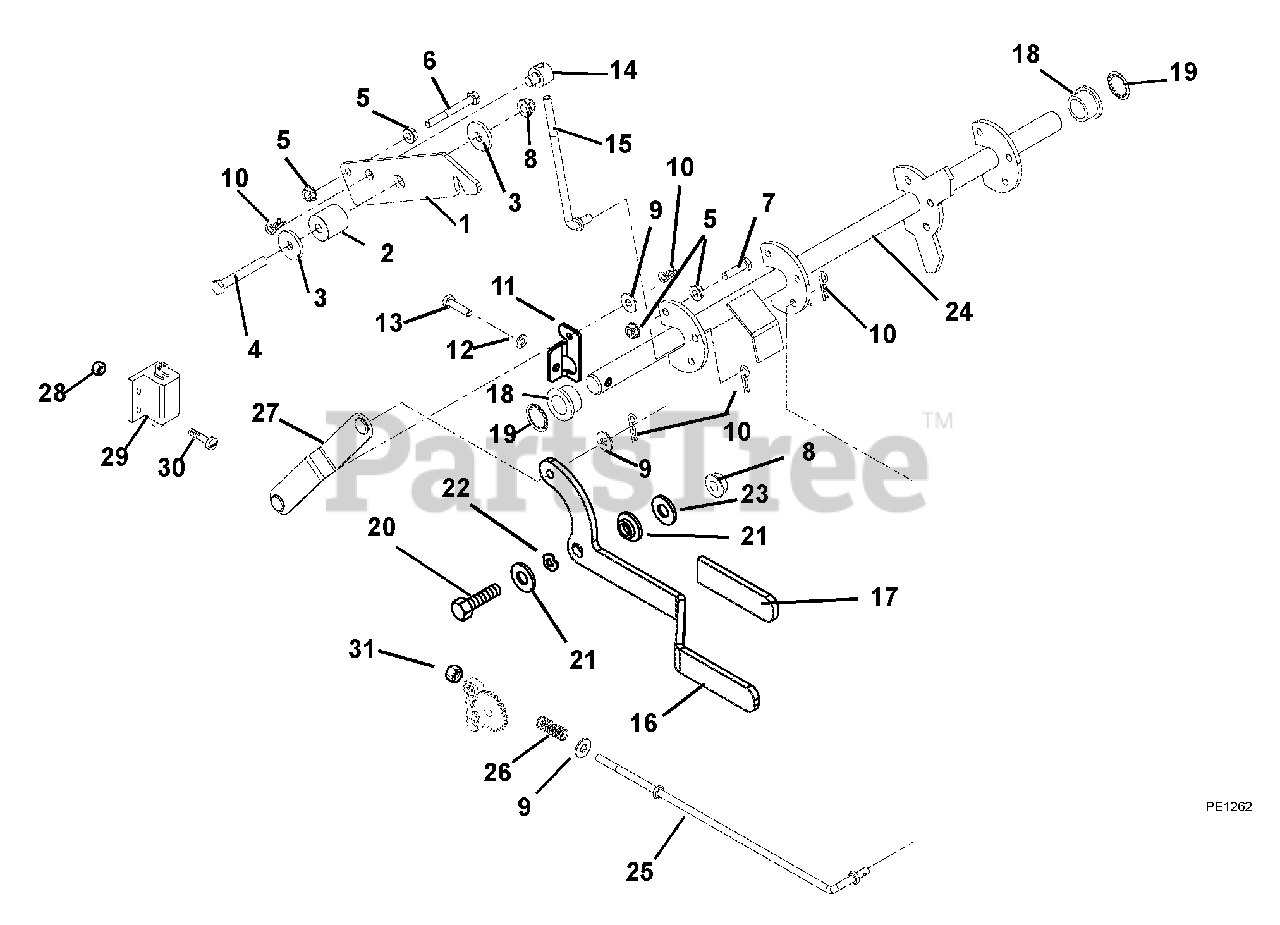

Parking Brake - SN 50,000 and up Parts Diagram

  • Title

1

Ariens 00476251

LATCH, NEUTRAL
(Superseded to 00476200)

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 00476300

SPCR, FLG .32X.49X.192X1.00

$16.99

$

Usually ships in 4-12 days

0

3

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

4

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05956700

@BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

8

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 00872051

CRANK, PARKING BRAKE

$

$

Not available

12

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

14

Ariens 01596400

TRUNNION, BRAKE .31-18 UNC

$51.99

$

Usually ships in 4-12 days

0

15

Ariens 00349800

BRAKE LINK

$

$

Not available

16

Ariens 00672251

HANDLE, PARKING BRAKE

$

$

Not available

17

Ariens 07523000

GRIP,HANDLE

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 7

0

19

Ariens 07000036

NUT, PUSH -.75" SHAFT

$

$

Not available

20

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

21

Ariens 05515400

BSHG-FLG .325X.501X.250X1.120

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

23

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

24

Ariens 00477700

WELDMENT, BRAKE SHAFT

$129.99

$

Usually ships in 4-12 days

0

25

Ariens 00667200

ROD - BRAKE

$24.99

$

Usually ships in 4-12 days

0

26

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 7

0

27

Ariens 00478000

WELDMENT, BRAKE LINK

$58.99

$

Usually ships in 4-12 days

0

28

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

30

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

31

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0
