915085 (2350) - Ariens HVZ 50" Zero-Turn Mower, 23hp Kohler (SN: 010000 - 034999) Frame, Footrest, Casters And Tires Parts Diagram

HVZ 50" Zero-Turn Mower, 23hp Kohler

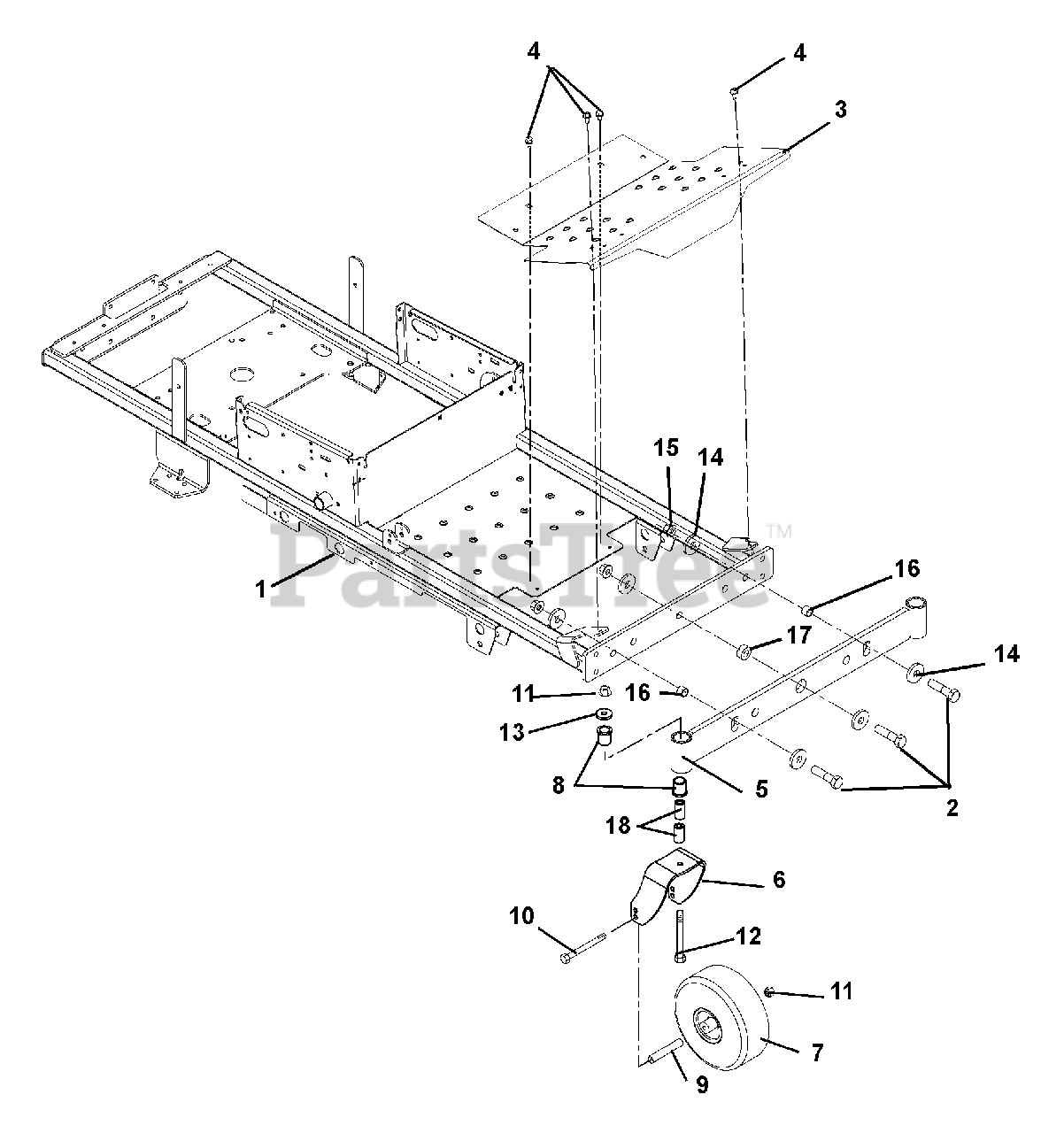

Frame, Footrest, Casters And Tires Parts Diagram

  • Title

1

Ariens 00600951

WMT, ZOOM FRAME

$

$

Not available

2

Ariens 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

In Stock, only 1 left!

0

3

Ariens 00460559

FOOTREST, MZ/ZOOM

$

$

Not available

4

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00475651

WELDMENT, FRONT AXLE

$193.99

$

Usually ships in 4-12 days

0

6

Ariens 00469351

FORK, CASTER- WELDED
(Superseded to 03368551)

$72.99

$

In Stock, Qty 11

0

7

Ariens 07144100

T/WHL 11X4.00-5 RIBBED
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

8

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

9

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

10

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

11

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

13

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

14

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 06540700

@NUT-LK-NYL .625-11 YWZC

$3.99

$

In Stock, only 2 left!

0

16

Ariens 00271800

SPACER, .750 D X .558 LONG

$17.99

$

In Stock, only 1 left!

0

17

Ariens 01600400

BUSHING, AXLE PIVOT

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$6.99

$

In Stock, only 4 left!

0
