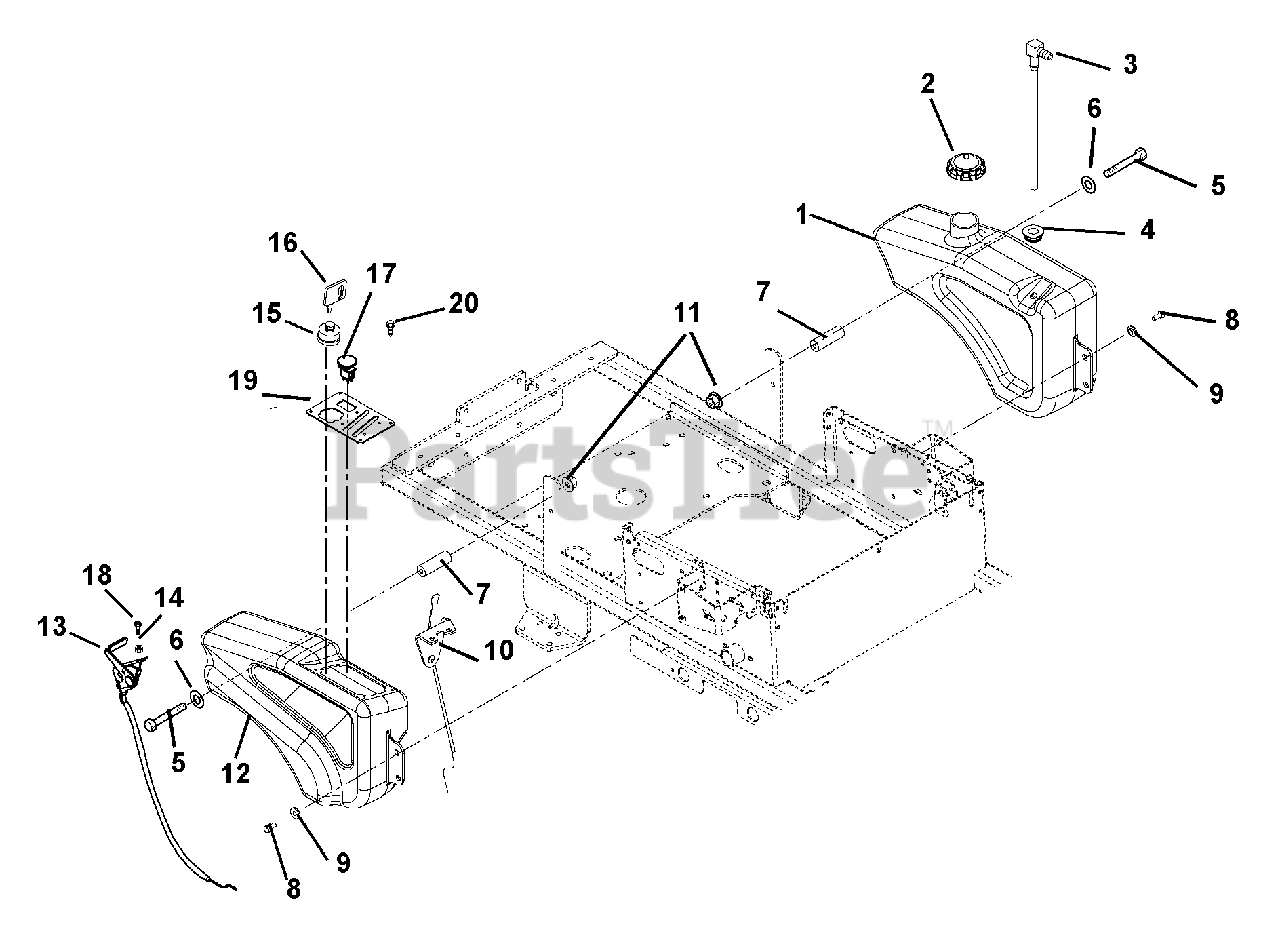

915085 (2350) - Ariens HVZ 50" Zero-Turn Mower, 23hp Kohler (SN: 000101 - 009999) Fuel Tank Parts Diagram

HVZ 50" Zero-Turn Mower, 23hp Kohler

Fuel Tank Parts Diagram

  • Title

1

Ariens 00479500

GAS TANK, ZOOM

$

$

Not available

2

Ariens 01538400

FUEL CAP

$15.99

$

In Stock, only 1 left!

0

3

Ariens 09112300

FITTING, TANK
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

4

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

5

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$

$

Not available

6

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00480900

SPCR, FLG .32X.49X.15X2.64

$20.99

$

In Stock, only 1 left!

0

8

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

10

Ariens 00581800

CABLE, CHOKE CABLE

Note: (085)

$54.99

$

Usually ships in 4-12 days

0

Ariens 00619600

THROTTLE/CHOKE CABLE

Note: (087)

$62.99

$

In Stock, Qty 5

0

11

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00479600

FENDER, ZOOM

$

$

Not available

13

Ariens 00581700

CABLE, ZOOM THROTTLE

Note: (085)

$39.99

$

In Stock, only 1 left!

0

14

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (085)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 01588300

KEY SWITCH

$30.99

$

In Stock, only 1 left!

0

16

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

17

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

18

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (085)

$2.49

$

In Stock, Qty 15

0

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

Note: (087)

$2.49

$

In Stock, Qty 5

0

19

Ariens 00479351

PANEL, ZOOM CONTROL

$

$

Not available

20

Ariens 06830000

RIVET, PLASTIC .195 DIA.

$2.49

$

In Stock, Qty 20+

0
