915084 (ZT 2350) - Gravely 50" Zero-Turn Mower, 23hp Kohler (SN: 001000 & Above) Fuel Tank Parts Diagram

50" Zero-Turn Mower, 23hp Kohler

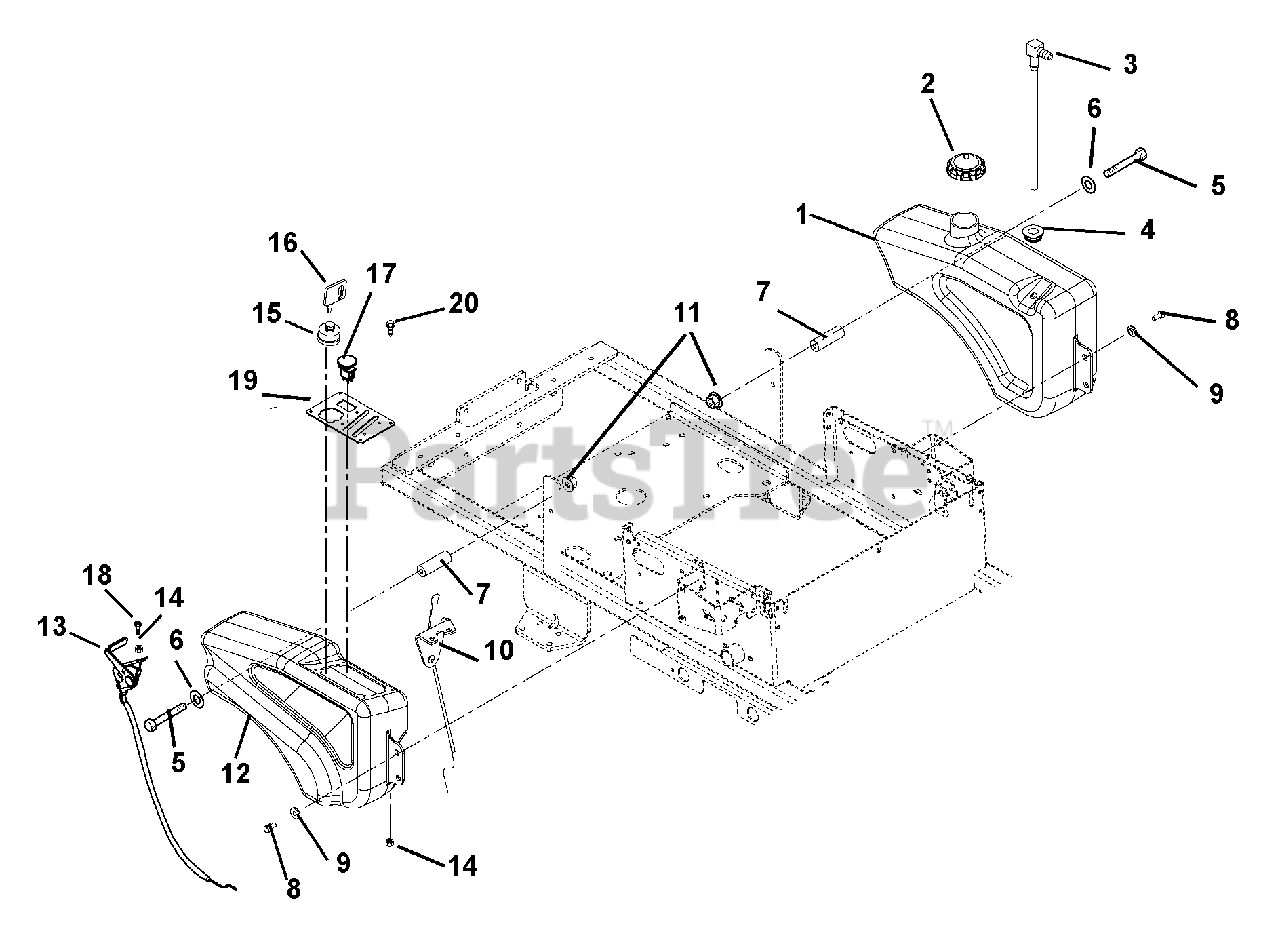

Fuel Tank Parts Diagram

  • Title

1

Gravely 00479500

Gas Tank HVZ

$

$

Not available

2

Gravely 01538400

Fuel Cap

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

4

Gravely 07511400

Bushing, Flange .375 x 1.062 x .625

$3.49

$

In Stock, Qty 20+

0

5

Gravely 05948000

Bolt, Hex .31-18 x 3.50 Grade 5

$

$

Not available

6

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00480900

Spacer, HVZ Tank Mount

$20.99

$

In Stock, only 1 left!

0

8

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 01305900

Shoulder Spacer

$2.49

$

In Stock, only 1 left!

0

10

Gravely 00581800

Cable, Choke Cable

$54.99

$

Usually ships in 4-12 days

0

11

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00479600

Fender HVZ

$

$

Not available

13

Gravely 00581700

Cable, Throttle

$39.99

$

In Stock, only 1 left!

0

14

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

16

Gravely 02460700

Key, w/cap

$7.99

$

In Stock, Qty 20+

0

17

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

18

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

19

Gravely 00479351

Control Panel

$

$

Not available

20

Gravely 06830000

Rivet, Plastic .195 Diameter

$2.49

$

In Stock, Qty 20+

0
