915082 (ZT 2552) - Gravely 52" Zero-Turn Mower, 25hp Kohler (SN: 035000 & Above) Electrical System Parts Diagram

52" Zero-Turn Mower, 25hp Kohler

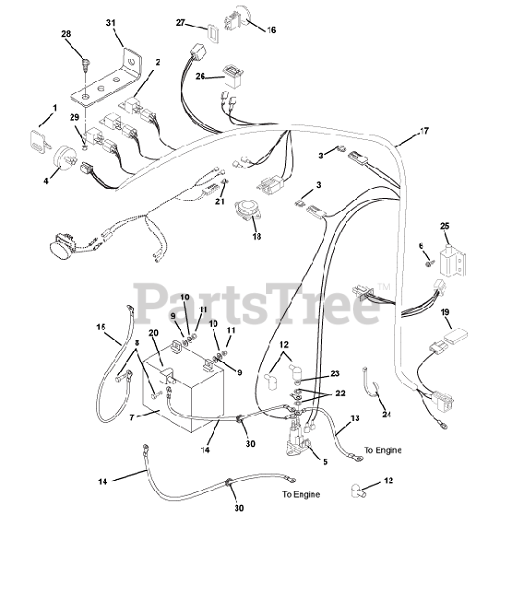

Electrical System Parts Diagram

  • Title
1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 00432100

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

5

Gravely 00696900

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Gravely 07415800

Screw, Tapping 10- 24 x .50 Hex Washer Head
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

7

Gravely 01554800

Battery, Filled

$

$

Not available

8

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

13

Gravely 00145900

Starter Cable 6.75"

$13.99

$

In Stock, only 1 left!

0

14

Gravely 02727900

Starter Cable 16"

$35.99

$

In Stock, only 1 left!

0

15

Gravely 03111100

Ground Cable
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

16

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

17

Gravely 00363400

Wire Harness, Zoom
(Superseded to 00363401)

$193.99

$

Usually ships in 4-12 days

0

18

Gravely 02754100

Switch, Snap Mounting (N.O.)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

19

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

20

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 00580600

Fuse, 20 AMP

$5.99

$

In Stock, Qty 12

0

22

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

23

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

24

Gravely 07517300

Cable Tie

$

$

Not available

25

Gravely 03606600

Switch, Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

26

Gravely 04935700

Hour Meter
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

27

Gravely 00289200

Shim, PTO Switch

$

$

Not available

28

Gravely 06116700

Screw,Machine 10-24 x .50 Slotted Hex
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 07506500

Grommet .125 x 1.000 ID

$3.49

$

In Stock, only 1 left!

0

31

Gravely 00382600

Bracket, Relay

$

$

Not available
