915082 (ZT 2552) - Gravely 52" Zero-Turn Mower, 25hp Kohler (SN: 020000 - 034999) Parking Brake Parts Diagram

52" Zero-Turn Mower, 25hp Kohler

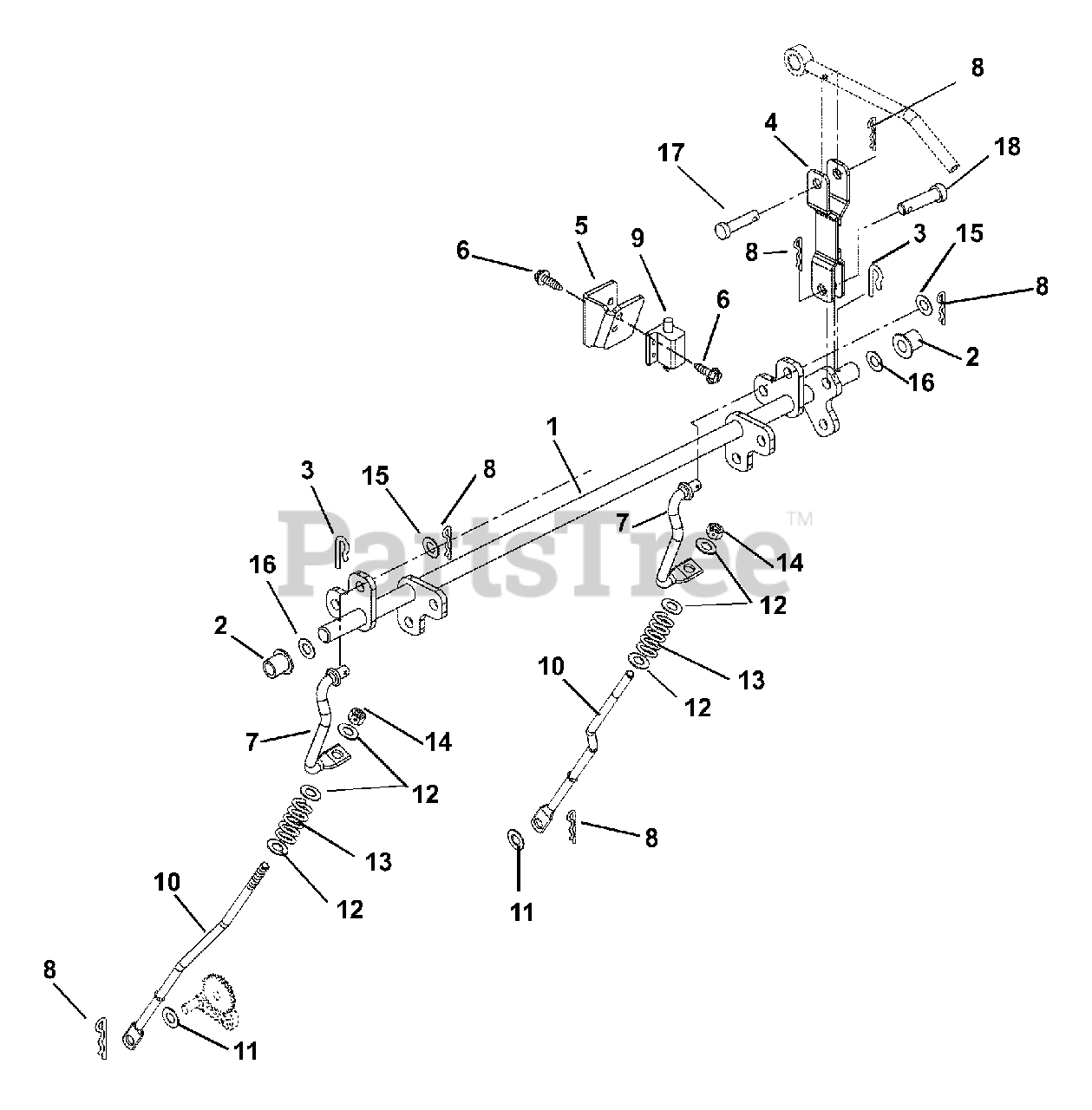

Parking Brake Parts Diagram

  • Title

1

Gravely 00361200

Weldment, Brake Rod

$

$

Not available

2

Gravely 045787

Bushing, Flange .63 x 1.00 x .625 Nylon
(Superseded to 05517400)

$

$

Not available

3

Gravely 06714500

Pin, Spring Clip

$2.49

$

In Stock, Qty 20+

0

4

Gravely 00379800

Clevis Weldment

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 00183700

Bracket, Brake Switch

$

$

Not available

6

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

7

Gravely 01589200

Rod, Over Center

$

$

Not available

8

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 03606600

Switch, Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

10

Gravely 00425300

Rod, Park Brake IZT

$

$

Not available

11

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 08300028

Spring, Compression .063 x .53 x 1.187

$4.99

$

In Stock, Qty 6

0

14

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06408900

Washer, Flat Steel .627 x .99 x .032

$

$

Not available

17

Gravely 06810200

Pin, Clevis .037 x 1.50

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06811900

Pin, Clevis .375 x .948

$4.99

$

In Stock, Qty 5

0
