915080 (ZT 2348) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 020000 - 034999) Frame, Hood And Footrest Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

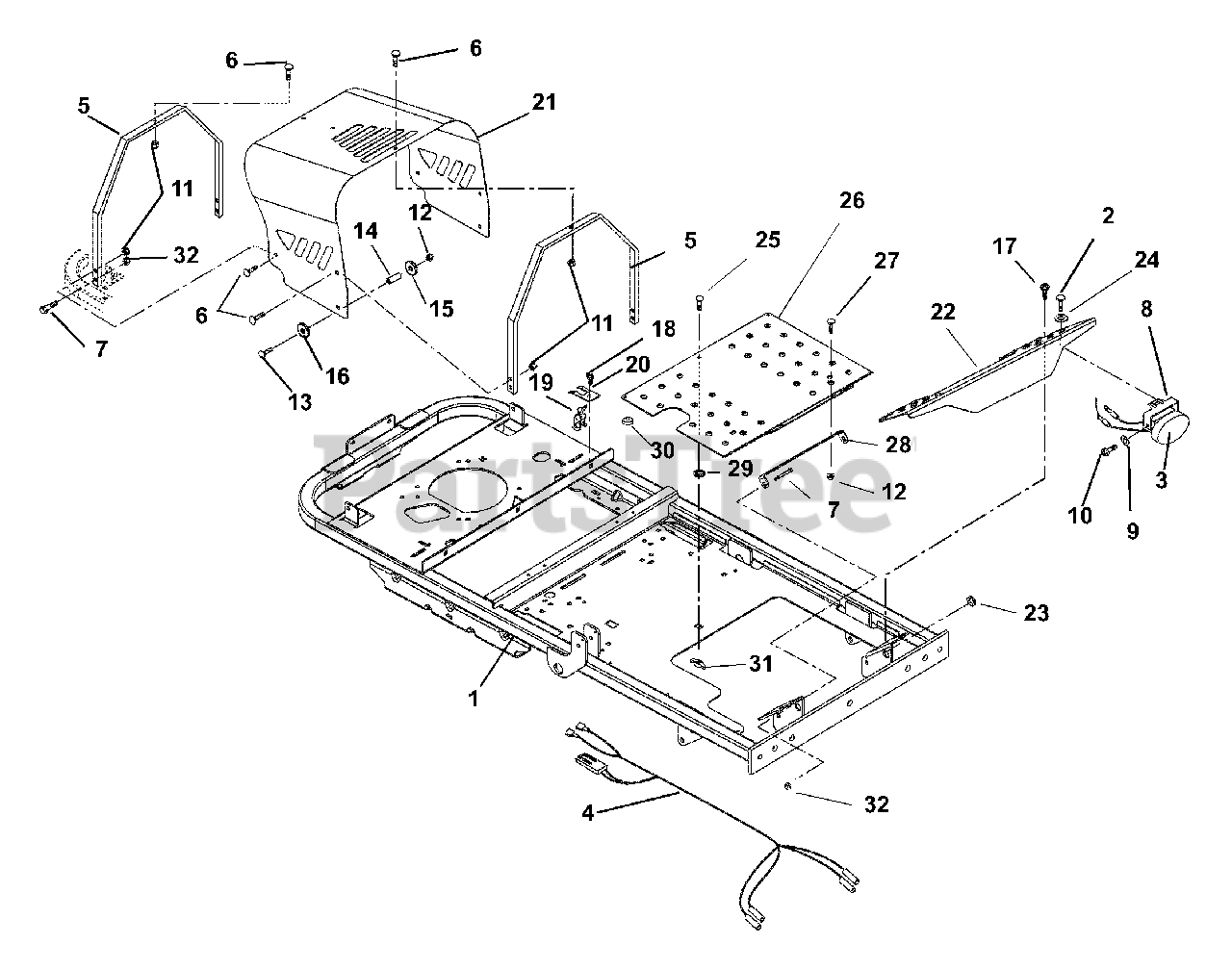

Frame, Hood And Footrest Parts Diagram

  • Title

1

Gravely 00458151

Weldment, Frame

$

$

Not available

2

Gravely 039062

Screw-Cap Button Head .31-18 x .50 Grade 5
(Superseded to 07008100)

$

$

Not available

3

Gravely 01588200

Assembly, Light

Note: (Includes Halogen H3 12 Volt 55 Watt Bulb)

$

$

Not available

4

Gravely 00474000

Harness, Light

$

$

Not available

5

Gravely 01605151

Brace, Hood

$114.99

$

In Stock, only 1 left!

0

6

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

8

Gravely 01603100

Bracket, Light

$64.99

$

Usually ships in 4-12 days

0

9

Gravely 06311200

Washer, Locking 4MM x 1MM Regular Cone Lock

$

$

Not available

10

Gravely 05980400

Screw, Socket Head Cap M4 x .07 x 8

$1.99

$

In Stock, only 2 left!

0

11

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06220500

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

14

Gravely 00363800

Hood Snap

$18.99

$

In Stock, only 1 left!

0

15

Gravely 06425500

Washer, Flat Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07411500

Screw, Tap .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07412000

Screw, Tap .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 00366700

Hood Clip

$9.49

$

In Stock, only 2 left!

0

20

Gravely 00372700

Bracket, Hood Clip

$29.99

$

Usually ships in 4-12 days

0

21

Gravely 00454253

Hood, Zoom

$

$

Not available

22

Gravely 00457853

Foot Rest

$

$

Not available

23

Gravely 07500010

Grommet, Rubber .38 I.D.

$

$

Not available

24

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00457951

Plate, Deck Access

$

$

Not available

27

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

28

Gravely 00458051

Bracket, Deck Access

$

$

Not available

29

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

30

Gravely 07503100

Grommet, Bumper

$3.49

$

In Stock, only 3 left!

0

31

Gravely 07531700

Knob, Wing .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 06542000

Nut-Locking-Top-Flange .31-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
