915077 (1840) - Ariens Zoom 40" Zero-Turn Mower, 18hp Kohler (SN: 020000 - 024999) Seat And Seat Support Parts Diagram

Zoom 40" Zero-Turn Mower, 18hp Kohler

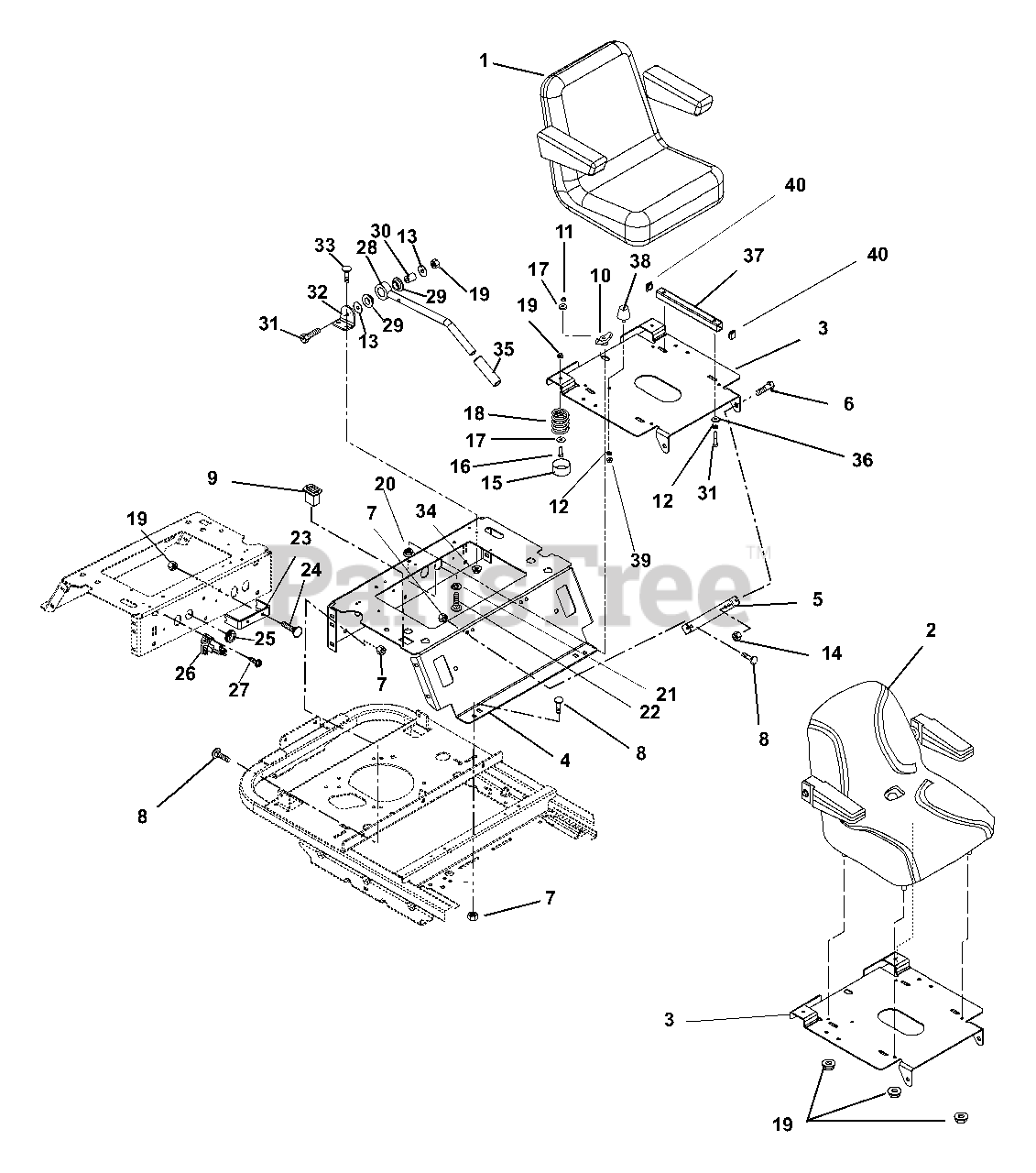

Seat And Seat Support Parts Diagram

  • Title

1

Ariens 00366300

SEAT,V-2505 MICHIGAN W/ARM

Note: (075, 502)

$

$

Not available

2

Ariens 00367800

ASSM, SEAT W/REPLA ARMRESTS

Note: (077, 079, 081, 083, 501)

$

$

Not available

2

Ariens 59205800

KIT, COMPLETE ARMREST
(Superseded to 71509500)

Note: (Fits 00367800)

$129.99

$

In Stock, only 1 left!

0

3

Ariens 00440651

BRACKET, SEAT PLATE

$

$

Not available

4

Ariens 00360151

SEAT SUPPORT

$

$

Not available

5

Ariens 00174151

BRACKET, SEAT PLATE

$

$

Not available

6

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

7

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

9

Ariens 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

Note: (077, 079, 081, 083, 501)

$23.99

$

In Stock, only 2 left!

0

9

Ariens 00539300

PLUG, HOUR METER

Note: (075, 502)

$9.99

$

Usually ships in 4-12 days

0

10

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

Note: (075, 077, 079, 081, 083)

$3.49

$

In Stock, Qty 20+

0

11

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (501, 502)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

14

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

16

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

Note: (075, 077, 079, 081, 083)

$3.99

$

In Stock, only 3 left!

0

17

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

Note: (501, 502)

$3.99

$

In Stock, only 3 left!

0

18

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

19

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (077, 079, 081, 083, 501)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (075, 502)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$2.99

$

In Stock, only 4 left!

0

23

Ariens 00362151

BRAKE ROD SUPPORT

$

$

Not available

24

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

26

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

27

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 00379700

WMT, PARK BRAKE

$

$

Not available

29

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$

$

Not available

30

Ariens 09235400

SPACER .328 X .76 X 1.01

$

$

Not available

31

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

32

Ariens 00379400

BRKT, BRAKE HANDLE PIVOT

$

$

Not available

33

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

34

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 00380800

GRIP

$

$

Not available

36

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

Note: (075, 502)

$3.49

$

In Stock, only 2 left!

0

37

Ariens 00479051

SPACER, SEAT (LOW BACK)

Note: (075, 502)

$

$

Not available

38

Ariens 07533000

BUMPER, RUBBER CONE,STUD MOUNT

Note: (077, 079, 081, 083, 501)

$14.99

$

Usually ships in 4-12 days

0

39

Ariens 06534600

@NUT-SPNLK-FLG .312-24 YWZC

Note: (077, 079, 081, 083, 501)

$

$

Not available

40

Ariens 00166800

CAPLUG SQR 1-14-20

Note: (075, 502)

$

$

Not available
