915076 (ZT 1840) - Gravely 40" Zero-Turn Mower, 18hp Kohler (SN: 035000 & Above) Deck Lift Parts Diagram

40" Zero-Turn Mower, 18hp Kohler

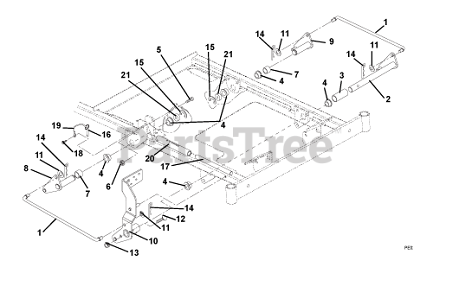

Deck Lift Parts Diagram

  • Title

1

Gravely 00270400

Rod, Lift

$39.99

$

In Stock, only 2 left!

0

2

Gravely 00186200

Weldment, Front Lift

$74.99

$

Usually ships in 4-12 days

0

3

Gravely 00178700

Bushing, Front

$7.49

$

Usually ships in 4-12 days

0

4

Gravely 05503500

Bushing-Flange 1.00 x 1.12 x .62 x 1.50 Bronze

$12.99

$

In Stock, Qty 20+

0

5

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

6

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 01591800

Bushing, Rear

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 01591700

Weldment, Lift, Rear Right Hand

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 01591600

Weldment, Lift, Rear Left Hand

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 00161600

Weldment, Foot Pedal

Note:

$

$

Not available

11

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05963300

Bolt, Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

13

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06714900

Pin, Hair External

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05716800

Ring, Retaining .82 x 1.50 x .05

$3.49

$

In Stock, only 3 left!

0

16

Gravely 01593500

Pin, Spring Ball .375 O.D. x 1.50

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 00165100

Rod, Lift

$

$

Not available

18

Gravely 07411600

Screw-Tapping .250-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06927100

Hood Cable

$14.99

$

In Stock, only 1 left!

0

20

Gravely 00165000

Tube, Lift Stop

$

$

Not available

21

Gravely 00182500

Spacer, Rear Lift

$5.99

$

Usually ships in 4-12 days

0
