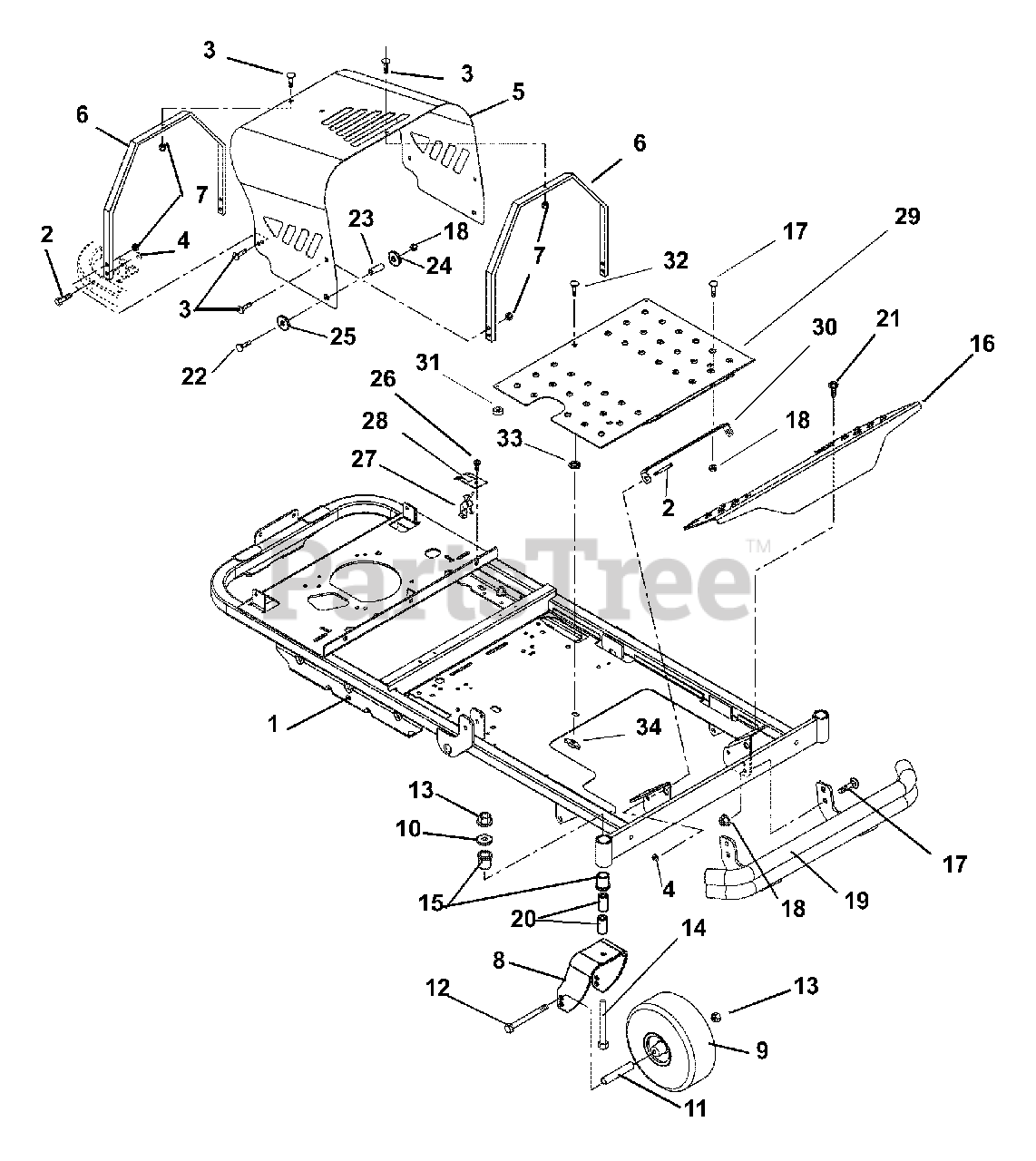

915076 (ZT 1840) - Gravely 40" Zero-Turn Mower, 18hp Kohler (SN: 020000 - 034999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

40" Zero-Turn Mower, 18hp Kohler

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Gravely 00458351

Weldment, Frame

$

$

Not available

2

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

3

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00454253

Engine Hood

$

$

Not available

6

Gravely 01605151

Brace, Hood

$114.99

$

In Stock, only 1 left!

0

7

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00469351

Fork, Caster
(Superseded to 03368551)

$72.99

$

In Stock, Qty 11

0

9

Gravely 01588100

Assembly, Tire 4 x 11- 4 Ply
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

10

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

12

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

13

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

16

Gravely 00457853

Foot Rest

$

$

Not available

17

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

18

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00482151

Bumper, Zoom

$

$

Not available

20

Gravely 00363100

Spacer, Caster

$6.99

$

In Stock, only 4 left!

0

21

Gravely 07411500

Screw, Tap .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06220500

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06224300)

$3.99

$

In Stock, only 4 left!

0

23

Gravely 00363800

Hood Snap

$18.99

$

In Stock, only 1 left!

0

24

Gravely 06425500

Washer, Flat Steel .375 x 1.125 x .065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

25

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 07412000

Screw, Tap .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 00366700

Hood Clip

$9.49

$

In Stock, only 2 left!

0

28

Gravely 00372700

Bracket, Hood Clip

$29.99

$

Usually ships in 4-12 days

0

29

Gravely 00457951

Plate, Deck Access

$

$

Not available

30

Gravely 00458051

Bracket, Deck Access

$

$

Not available

31

Gravely 07503100

Grommet, Bumper

$3.49

$

In Stock, only 3 left!

0

32

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.0 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

34

Gravely 07531700

Knob, Wing .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+
