915074 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Kohler (SN: 020000 & Above) Mower Deck, Belt, Idlers And Blades SN 025000 & Up Parts Diagram

40" Zero-Turn Mower, 16hp Kohler

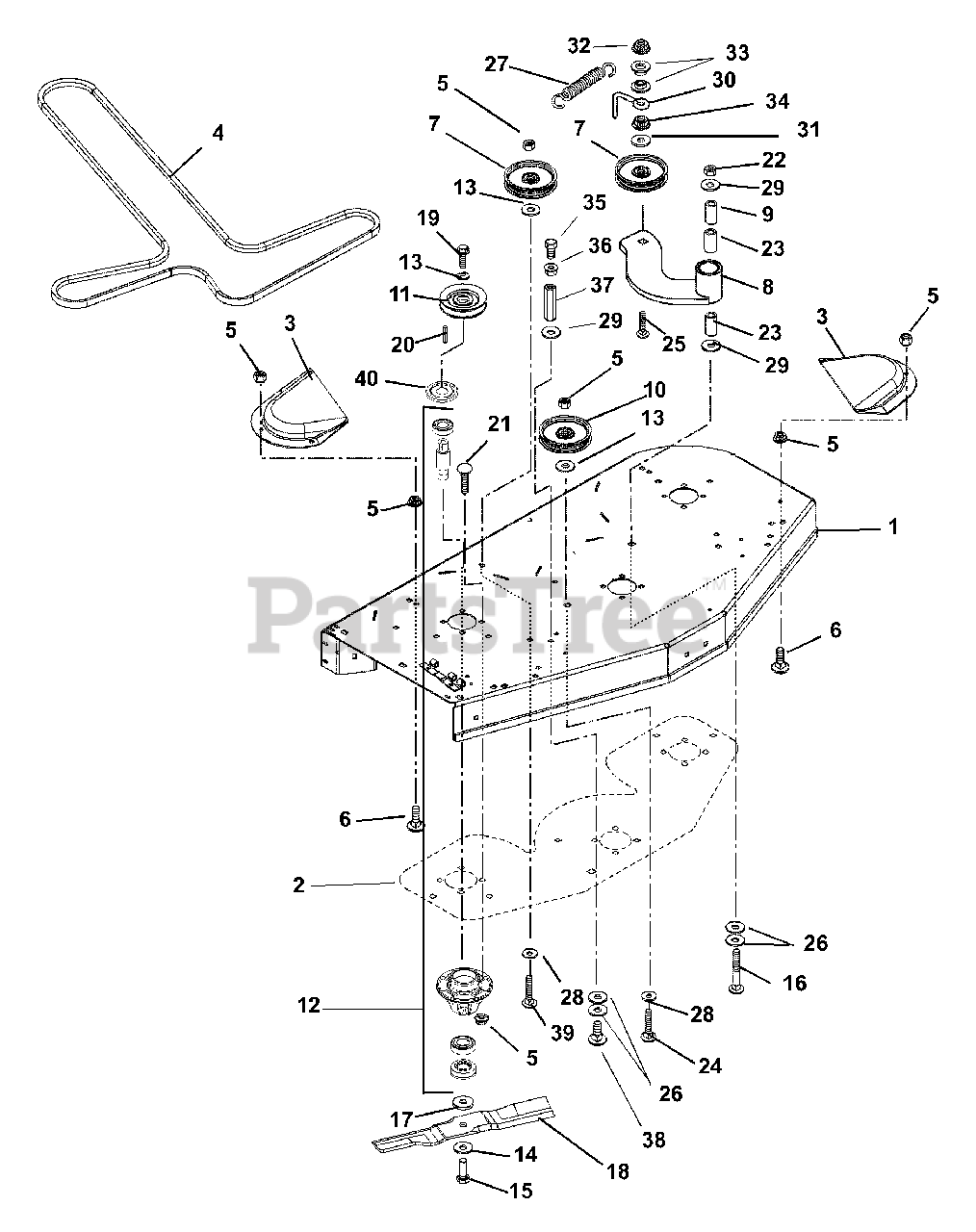

Mower Deck, Belt, Idlers And Blades SN 025000 & Up Parts Diagram

  • Title

1

Gravely 00428951

40" Mower Deck

Note: (074, 076)

$

$

Not available

1

Gravely 00440351

44" Mower Deck
(Superseded to 51529500)

Note: (078)

$805.99

$

Usually ships in 4-12 days

0

1

Gravely 00440451

48" Mower Deck
(Superseded to 51522600)

Note: (080)

$814.99

$

Usually ships in 4-12 days

0

1

Gravely 00440551

52" Mower Deck
(Superseded to 51529700)

Note: (082)

$451.99

$

Usually ships in 4-12 days

0

2

Gravely 00429551

Plate, 40" Doubler

Note: (074, 076)

$150.99

$

Usually ships in 4-12 days

0

3

Gravely 01520100

Cover

$67.99

$

Usually ships in 4-12 days

0

4

Gravely 07200037

V-Belt

Note: (074)

$80.99

$

In Stock, only 2 left!

0

4

Gravely 07219600

V-Belt

Note: (076)

$83.99

$

In Stock, only 2 left!

0

4

Gravely 07242900

V-Belt

Note: (078)

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 07200022

V-Belt

Note: (080)

$109.99

$

In Stock, Qty 6

0

4

Gravely 07200023

V-Belt

Note: (082)

$87.99

$

In Stock, Qty 20+

0

5

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

7

Gravely 07300006

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

8

Gravely 00429900

Weldment, Idler Arm

$82.99

$

Usually ships in 4-12 days

0

9

Gravely 01581700

Spacer, Powdered Metal

$5.99

$

In Stock, Qty 20+

0

10

Gravely 07327100

Pulley, Idler 4.00

$37.99

$

In Stock, Qty 16

0

11

Gravely 01593800

Sheave, Spindle 4.00 Dia.

Note: (074)

$28.99

$

In Stock, only 2 left!

0

11

Gravely 01599400

Sheave, Spindle 4.25 Dia.

Note: (076)

$26.99

$

In Stock, Qty 10

0

11

Gravely 01599500

Sheave, Spindle 4.50 Diameter

Note: (078)

$28.99

$

In Stock, only 2 left!

0

11

Gravely 01610400

Sheave, Spindle 4.25 Diameter

Note: (080)

$45.99

$

In Stock, only 1 left!

0

11

Gravely 01610300

Sheave, Spindle 4.75 Diameter
(Superseded to 07330267)

Note: (082)

$52.99

$

In Stock, only 1 left!

0

12

Gravely 51510000

Assembly, Spindle

$227.99

$

In Stock, Qty 12

0

13

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06445700

Washer, Bellville .63 x 1.625 x .140

$4.99

$

In Stock, Qty 6

0

15

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

17

Gravely 06435200

Washer, Flat .64 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

18

Gravely 014668

Blade, Mower
(Superseded to 03498400)

Note: (13.88) (074, 076)

$19.99

$

In Stock, Qty 20+

0

18

Gravely 01593900

Blade, Mower

Note: (15.50) (078)

$23.99

$

In Stock, Qty 20+

0

18

Gravely 04919100

Blade, Mower

Note: (16.25) (080)

$26.99

$

In Stock, Qty 20+

0

18

Gravely 04916400

Blade, Mower

Note: (18.00) (082)

$27.99

$

In Stock, Qty 20+

0

19

Gravely 05974500

Bolt, Hex .38-16 x 1.00 Grade 8 with Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06224200

Bolt, Round Head Square Neck .38-16 x 1.50
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 6

0

24

Gravely 06220500

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

25

Gravely 06228100

Bolt, Round Head Square Neck .38-16 x 3.00 Grade 5
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

26

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

27

Gravely 08300020

Spring, Extension

$26.99

$

In Stock, only 2 left!

0

28

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

29

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 2 left!

0

30

Gravely 00391900

Finger, Belt

$20.99

$

In Stock, only 2 left!

0

31

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 05515800

Bushing, Sleeve .752 x .877 x .75 Bronze

$9.49

$

In Stock, only 4 left!

0

34

Gravely 06543900

Nut, Spiral Lock Flange .50-13

$6.99

$

In Stock, Qty 6

0

35

Gravely 05959700

Bolt, Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

36

Gravely 06537300

Nut, Hex .50-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

37

Gravely 06500013

Coupling .50-13 x 1.75

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 06224700

Bolt, Round Head Square Neck .50-13 x 1.25 Grade 5
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

39

Gravely 06225400

Bolt, Round Head Square Neck .38-16 x 2.75 Grade 5
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

40

Gravely 00587400
