915074 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Kohler (SN: 020000 & Above) Mower Brackets And Rollers Parts Diagram

40" Zero-Turn Mower, 16hp Kohler

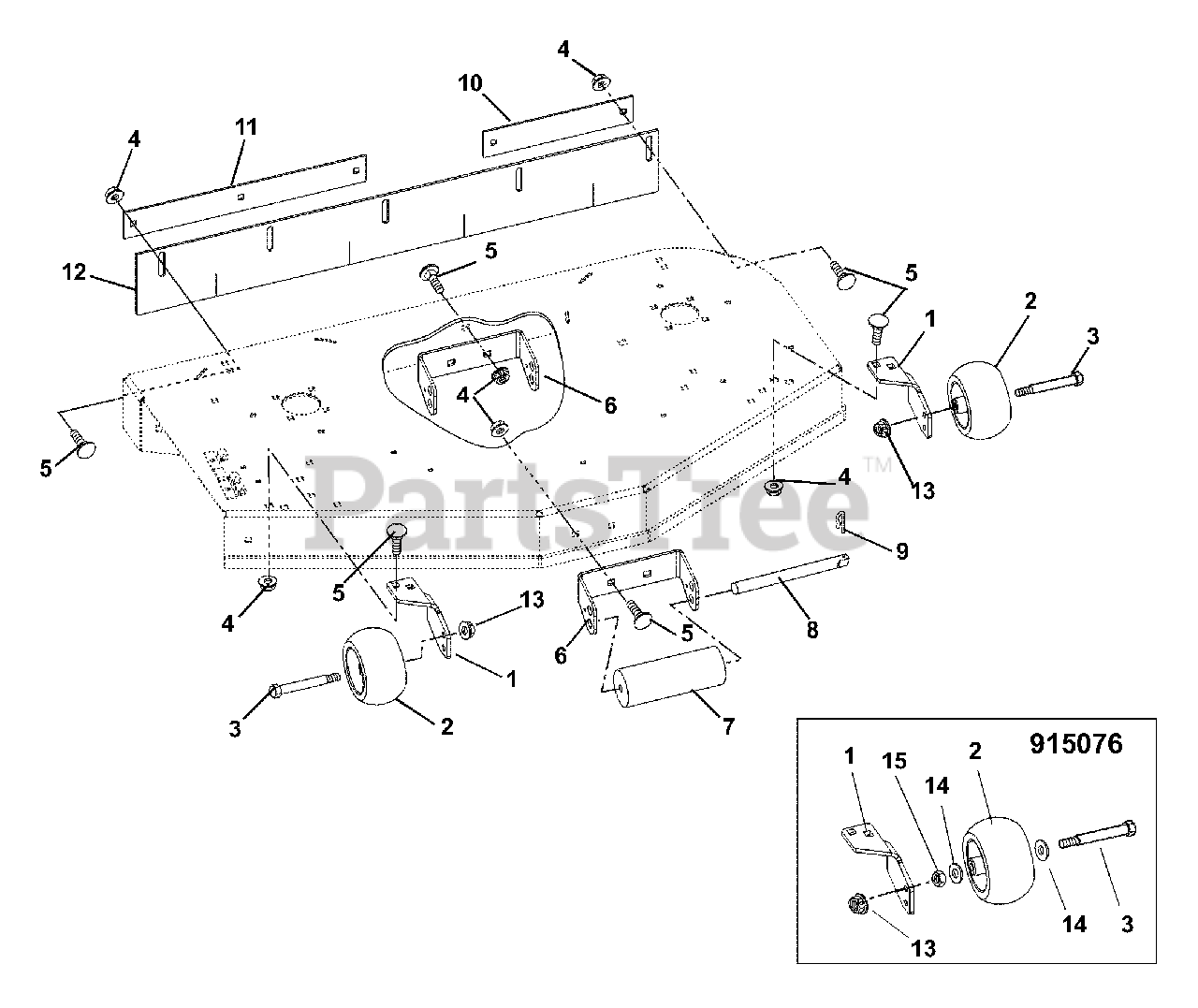

Mower Brackets And Rollers Parts Diagram

  • Title

1

Gravely 01574851

Bracket, Anti-Scalp
(Superseded to 02950351)

Note: (078, 080, 082)

$29.99

$

In Stock, Qty 9

0

1

Gravely 00344151

Bracket, Anti-Scalp

Note: (076)

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

Note: (078, 080, 082)

$15.99

$

In Stock, Qty 20+

0

2

Gravely 02745400

Roller

Note: (076)

$15.99

$

In Stock, Qty 20+

0

3

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

Note: (078, 080, 082)

$6.99

$

In Stock, Qty 20+

0

3

Gravely 05960900

Bolt, Shoulder .38-16 x 3.50 Hex Washer Head Grade 5
(Superseded to 05901818)

Note: (076)

$3.99

$

In Stock, Qty 20+

0

4

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

Note: (076, 078, 080,082)(076, 078, 080, 082)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

Note: (074)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

Note: (076, 078, 080, 082)

$2.49

$

In Stock, Qty 10

0

5

Gravely 06223600

Bolt- Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

Note: (074)

$2.49

$

In Stock, Qty 10

0

6

Gravely 00355651

Bracket, Roller Mount

Note: (076, 078, 080, 082)

$61.99

$

In Stock, only 4 left!

0

6

Gravely 00355651

Bracket, Roller Mount

Note: (074)

$61.99

$

In Stock, only 4 left!

0

7

Gravely 039563

Roller
(Superseded to 03114100)

Note: (076, 078, 080, 082)

$22.99

$

In Stock, Qty 20+

0

7

Gravely 03114100

Roller

Note: (074)

$22.99

$

In Stock, Qty 20+

0

8

Gravely 00356500

Pin, Roller

Note: (076, 078, 080, 082)

$34.99

$

In Stock, only 1 left!

0

8

Gravely 00356500

Pin, Roller

Note: (074)

$34.99

$

In Stock, only 1 left!

0

9

Gravely 06714500

Pin, Spring Clip

Note: (076, 078, 080, 082)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06714500

Pin, Spring Clip

Note: (074)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 01577451

Bar, Left Hand Retainer Striper

Note: (076, 078, 080, 082)

$17.99

$

In Stock, only 1 left!

0

11

Gravely 01577651

Bar, Retaining Striper

Note: (078)

$

$

Not available

11

Gravely 01577351

Bar, Retaining Striper

Note: (080, 082)

$27.99

$

In Stock, only 1 left!

0

11

Gravely 01576951

Bar, Retaining Striper

Note: (076)

$

$

Not available

12

Gravely 01577500

Striper, Rubber-44"

Note: (078)

$78.99

$

Usually ships in 4-12 days

0

12

Gravely 01577000

Striper, Rubber-48"

Note: (080)

$82.99

$

Usually ships in 4-12 days

0

12

Gravely 01577200

Striper, Rubber-52"

Note: (082)

$

$

Not available

12

Gravely 01576800

Striper, Rubber-40"

Note: (076)

$60.99

$

Usually ships in 4-12 days

0

13

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

Note: (076, 078, 080, 082)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (076)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06537200

Nut, Center Lock Jam .375-16
(Superseded to 06500914)

Note: (076)

$0.99

$

In Stock, Qty 20+
