915069 (1534) - Ariens Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Parking Brake Parts Diagram

Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler

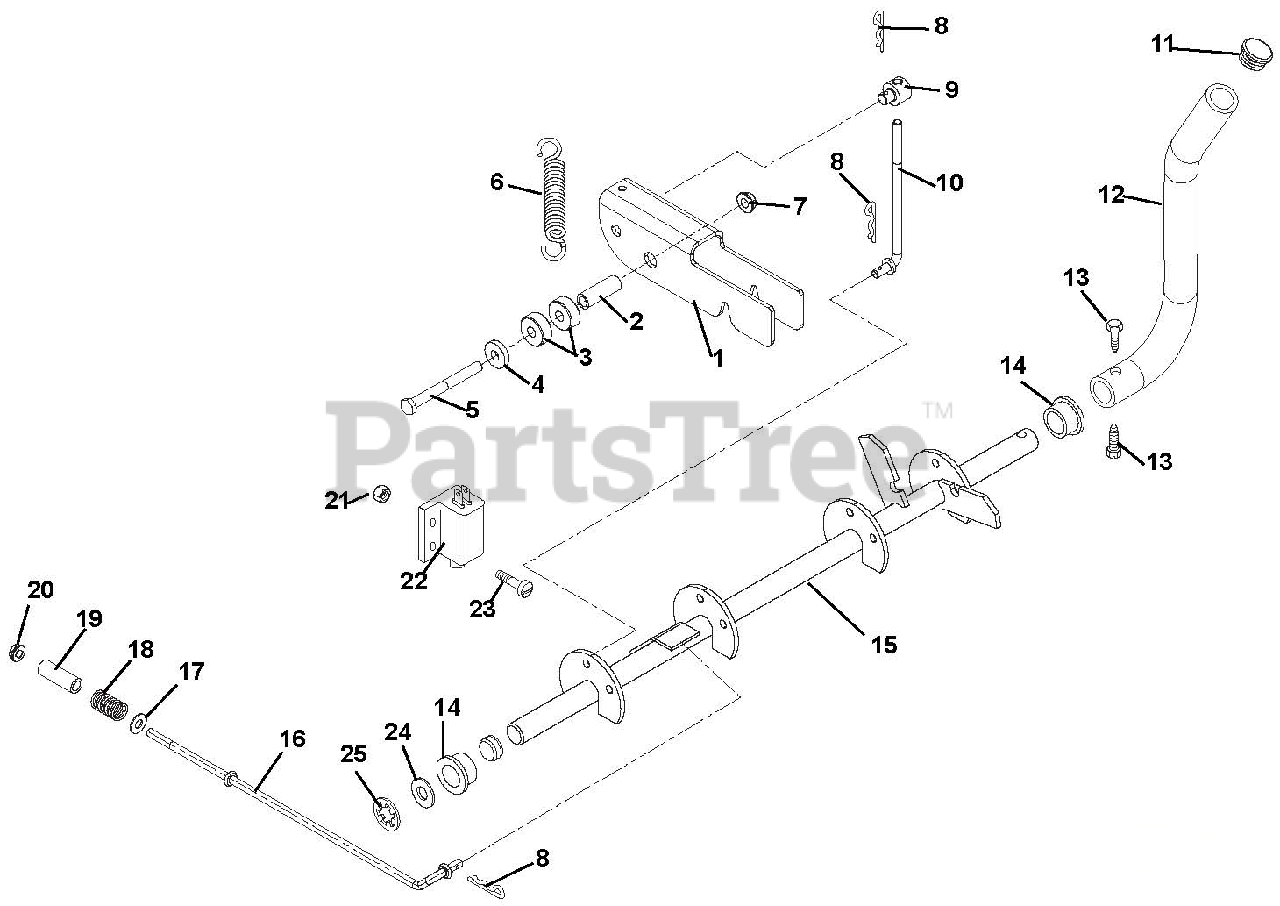

Parking Brake Parts Diagram

  • Title
1

Ariens 00293851

LATCH,NEUTRAL

$

$

Not available

2

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

3

Ariens 01612700

SPACER, .344X1.00X.410

$3.49

$

Usually ships in 4-12 days

0

4

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

5

Ariens 05962500

@BLT-HEX .31-18X3.00 GR5 YWZC
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

6

Ariens 08332000

SG-TENS .069X.62X3.50 WLD20

$11.99

$

In Stock, only 1 left!

0

7

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 01596400

TRUNNION, BRAKE .31-18 UNC

$51.99

$

Usually ships in 4-12 days

0

10

Ariens 00349800

BRAKE LINK

$

$

Not available

11

Ariens 07533300

CAPLUG, HANDLEBAR

$2.49

$

In Stock, only 3 left!

0

12

Ariens 00354151

HANDLE,PARK BRAKE

$

$

Not available

13

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05503900

BSHG-FLG .750X1.000X.625X1.250

$12.99

$

In Stock, Qty 6

0

15

Ariens 00294100

WMT,BRAKE SHAFT

$

$

Not available

16

Ariens 00349700

BRAKE LINK
(Superseded to 00667200)

$24.99

$

Usually ships in 4-12 days

0

17

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 6

0

19

Ariens 00364900

BSHG, SPCR .330X.500X1.01 PM

$6.49

$

In Stock, only 1 left!

0

20

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

23

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

24

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

25

Ariens 05715100

RG-RTNG 1.000X.748

$

$

Not available
