915069 (1534) - Ariens Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

Mini-Zoom 34" Zero-Turn Mower, 15hp Kohler

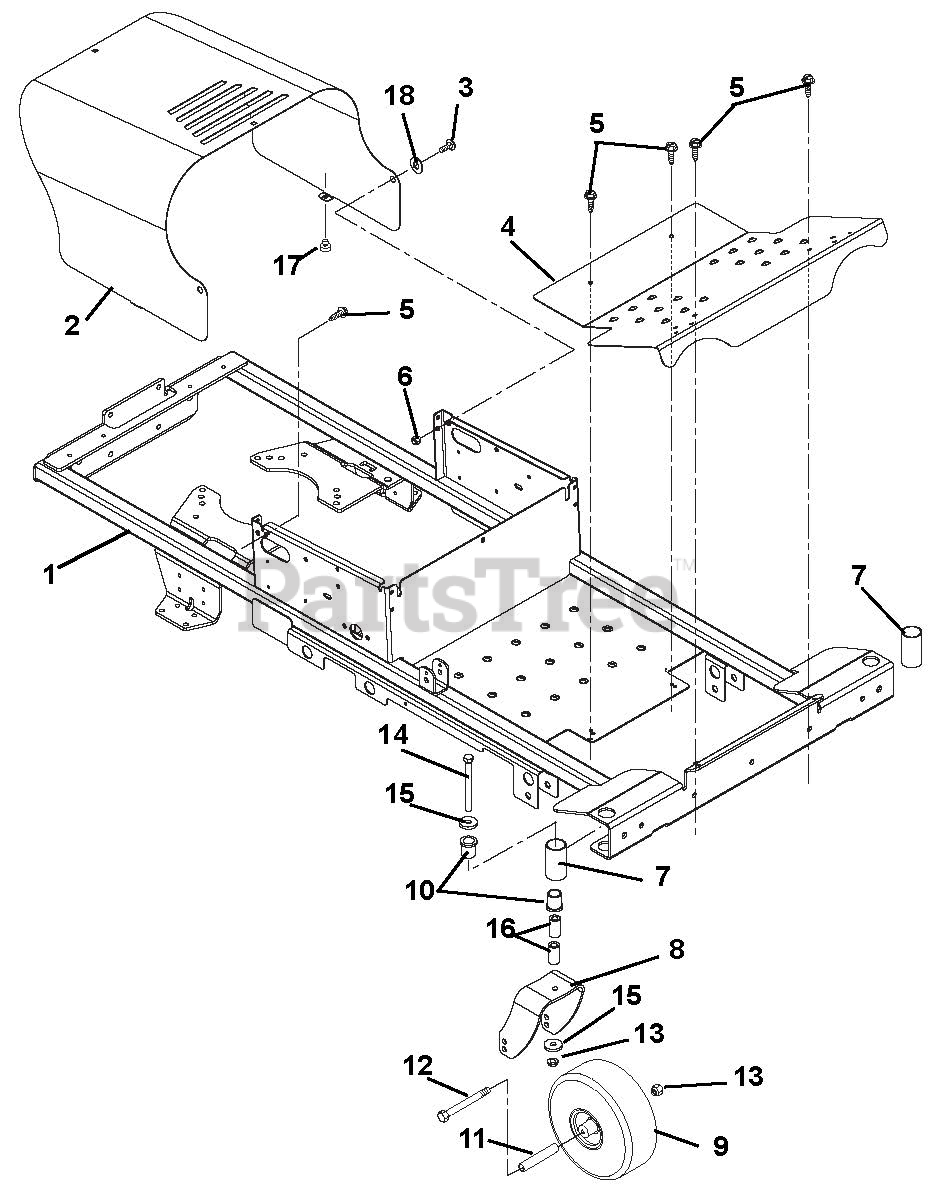

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Ariens 00278851

WMT,MZ FRAME

$

$

Not available

2

Ariens 00288659

ARIENS ENGINE COVER

$

$

Not available

3

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

4

Ariens 00279759

ARIENS FOOTREST,MZ/MZT
(Superseded to 00460559)

$

$

Not available

5

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00354700

SLEEVE,CASTER

$52.99

$

In Stock, only 2 left!

0

8

Ariens 00363351

FORK,CASTER
(Superseded to 03368551)

$72.99

$

In Stock, Qty 11

0

9

Ariens 01588100

ASSY-TIRE 4 X 11 - 4 PLY
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

10

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

11

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

12

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

13

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05975400

@BLT-HEX .50-13X5.00 GR8 YWZC

$5.99

$

In Stock, only 2 left!

0

15

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

16

Ariens 00363100

SPACER, CASTER .50X1.00X1.84

$6.99

$

In Stock, Qty 11

0

17

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

18

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0
