915064 (Mini-ZT 1534) - Gravely 34" Zero-Turn Mower, 15hp Kohler (SN: 020000 & Above) Parking Brake Parts Diagram

34" Zero-Turn Mower, 15hp Kohler

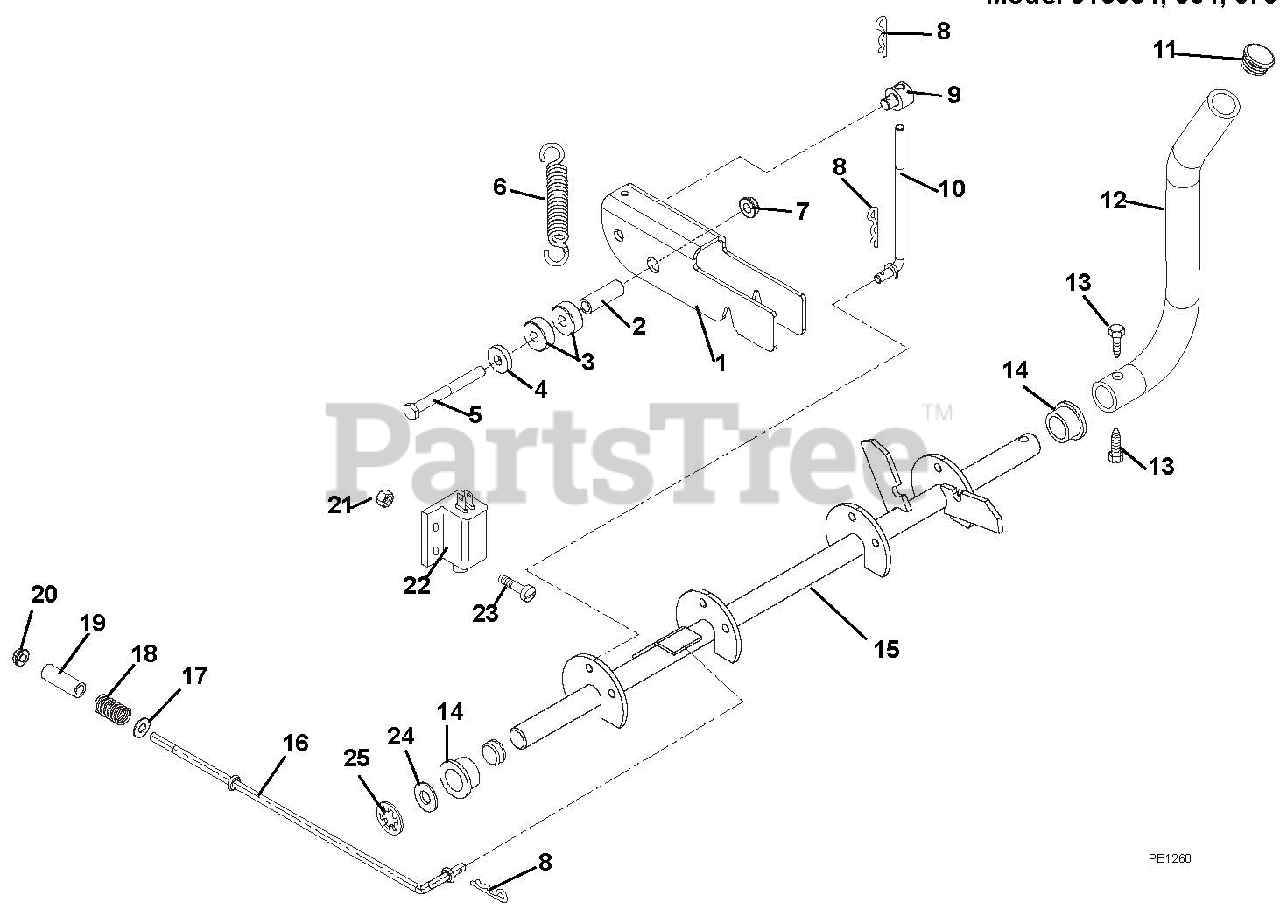

Parking Brake Parts Diagram

  • Title

1

Gravely 00293851

Latch, Neutral

$

$

Not available

2

Gravely 02202900

Bushing, Sleeve .334 x .502 x 1.437

$5.99

$

In Stock, only 4 left!

0

3

Gravely 01612700

Spacer

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 06439100

Washer-Flat-Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

5

Gravely 05962500

Bolt, Hex .31-18 x 3.00 Grade 5
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

6

Gravely 08332000

Spring, Extension .069 x .62 x 3.50

$11.99

$

In Stock, only 1 left!

0

7

Gravely 06545400

Nut, Flange Nyloc 5/16-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06713500

Pin, Hair Int .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 01596400

Trunnion, Brake

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 00349800

Brake, Link

$

$

Not available

11

Gravely 07533300

Caplug, Handlebar

$2.49

$

In Stock, only 3 left!

0

12

Gravely 00354151

Handle, Park Brake

$

$

Not available

13

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05503900

Bushing, Flanged .750 x 1.000 x .625 x 1.250

$12.99

$

In Stock, Qty 7

0

15

Gravely 00294100

Weldment, Brake Shaft

$

$

Not available

16

Gravely 00349700

Brake Link
(Superseded to 00667200)

$24.99

$

Usually ships in 4-12 days

0

17

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 08300600

Spring, Compression .045 x .50 x 1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 7

0

19

Gravely 00364900

Bushing

$6.49

$

In Stock, only 2 left!

0

20

Gravely 06531000

Nut, Locking Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03606600

Switch, Double Pole

$17.99

$

In Stock, only 1 left!

0

23

Gravely 06116900

Screw, Machine 10-24 x .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

24

Gravely 06444200

Washer-Flat-Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

25

Gravely 05715100

Retaining Ring 1.000 x .748

$

$

Not available
