915064 (Mini-ZT 1534) - Gravely 34" Zero-Turn Mower, 15hp Kohler (SN: 020000 & Above) Electrical System Parts Diagram

34" Zero-Turn Mower, 15hp Kohler

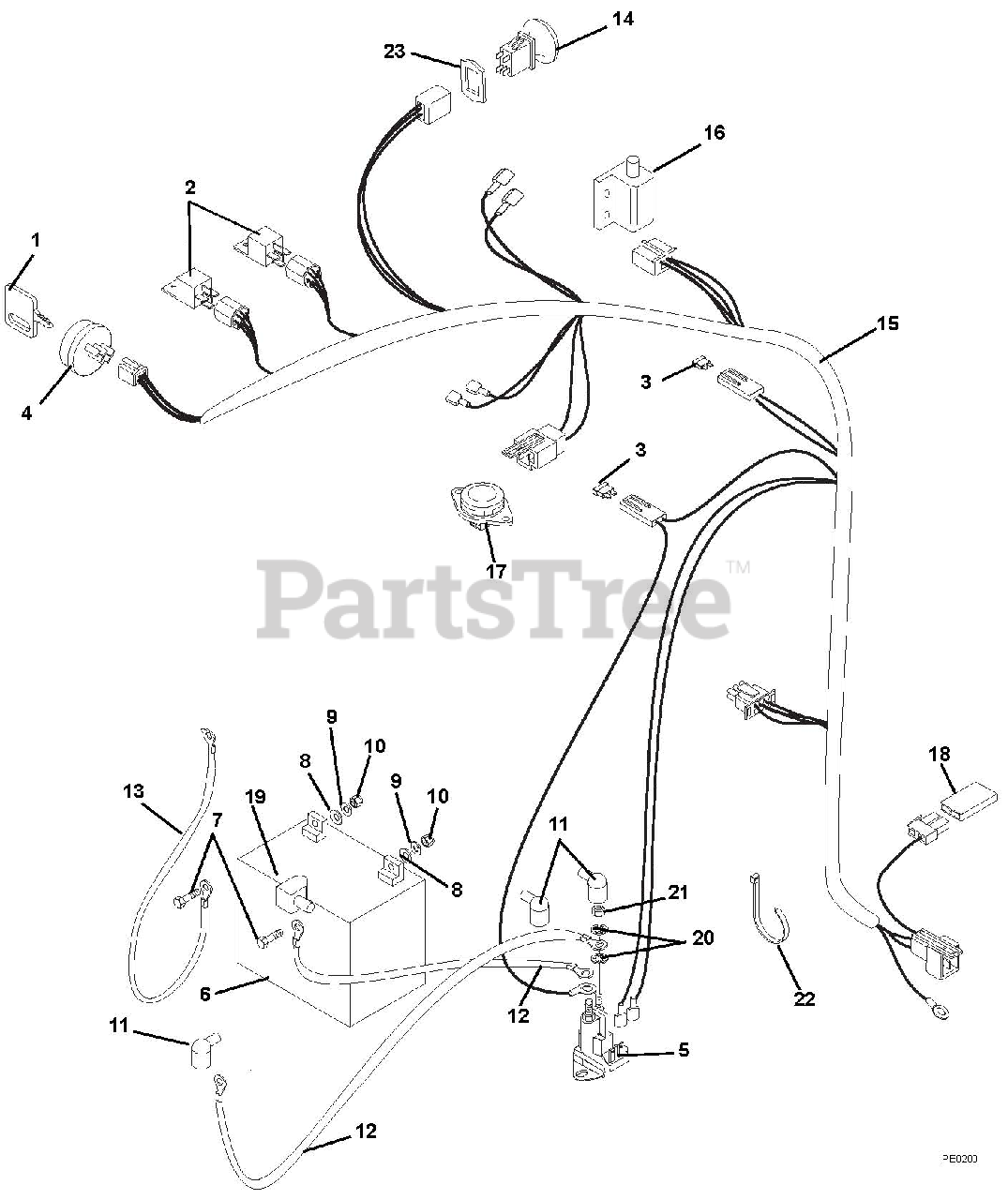

Electrical System Parts Diagram

  • Title
1

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

2

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Gravely 09351100

Fuse, 25 AMP
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

5

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Gravely 01554800

Battery, Filled

$

$

Not available

7

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

11

Gravely 07533200

Boot, Eyelet Terminal

$3.49

$

In Stock, only 3 left!

0

12

Gravely 02727200

Starter Cable 13"
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

13

Gravely 036314

Ground Cable
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

14

Gravely 01545600

Switch, Clutch With Retainer

$25.99

$

In Stock, Qty 20+

0

15

Gravely 00347900

Harness, Mini Zoom
(Superseded to 00347901)

$125.99

$

In Stock, only 4 left!

0

16

Gravely 03606600

Switch, Double Pole N.O. / N.O.

$17.99

$

In Stock, only 1 left!

0

17

Gravely 02754100

Switch, Snap Mounting (N.O.)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

18

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

19

Gravely 039619

Insulator
(Superseded to 07505700)

$9.49

$

Usually ships in 4-12 days

0

20

Gravely 06310500

Washer, Locking .31

$0.99

$

In Stock, only 3 left!

0

21

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

22

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

23

Gravely 00289200

Shim, PTO Switch

$

$

Not available
