915064 (Mini-ZT 1534) - Gravely 34" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 019999) Fuel Tank Parts Diagram

34" Zero-Turn Mower, 15hp Kohler

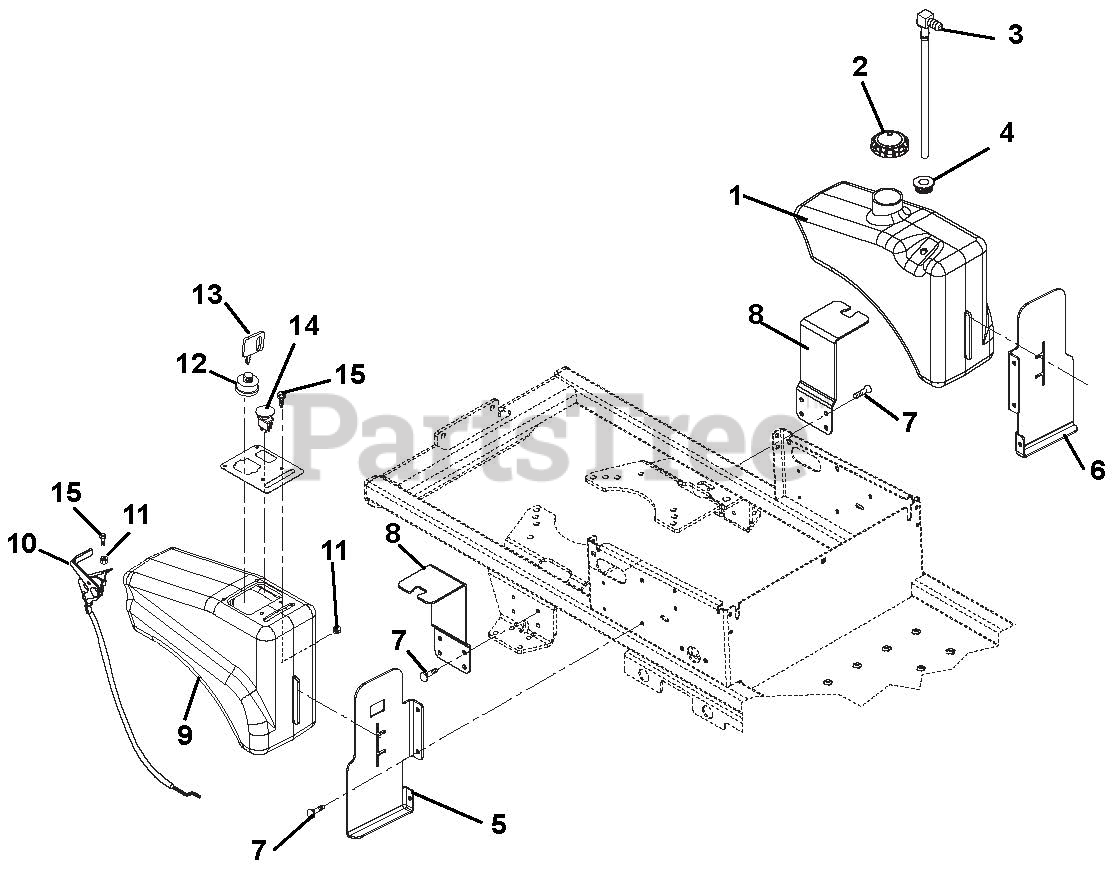

Fuel Tank Parts Diagram

  • Title

1

Gravely 00348500

Tank, Fender - Left Hand

$

$

Not available

2

Gravely 01538400

Fuel Cap

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

4

Gravely 07511400

Bushing, Flange .375 x 1.062 x .625

$3.49

$

In Stock, Qty 20+

0

5

Gravely 00431651

Bracket, Fuel Tank RH

$

$

Not available

6

Gravely 00428851

Bracket, Fuel Tank LH

$71.99

$

Usually ships in 4-12 days

0

7

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00392651

Mount, Fuel Tank

$46.99

$

Usually ships in 4-12 days

0

9

Gravely 00348400

Tank, Fender - Right Hand

$90.99

$

Usually ships in 4-12 days

0

10

Gravely 00366100

Cable, Throttle

$64.99

$

In Stock, only 3 left!

0

11

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

13

Gravely 02460700

Key, w/cap

$7.99

$

In Stock, Qty 20+

0

14

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

15

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

16

Gravely 00373951

Control Panel

$

$

Not available
