915064 (Mini-ZT 1534) - Gravely 34" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 019999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

34" Zero-Turn Mower, 15hp Kohler

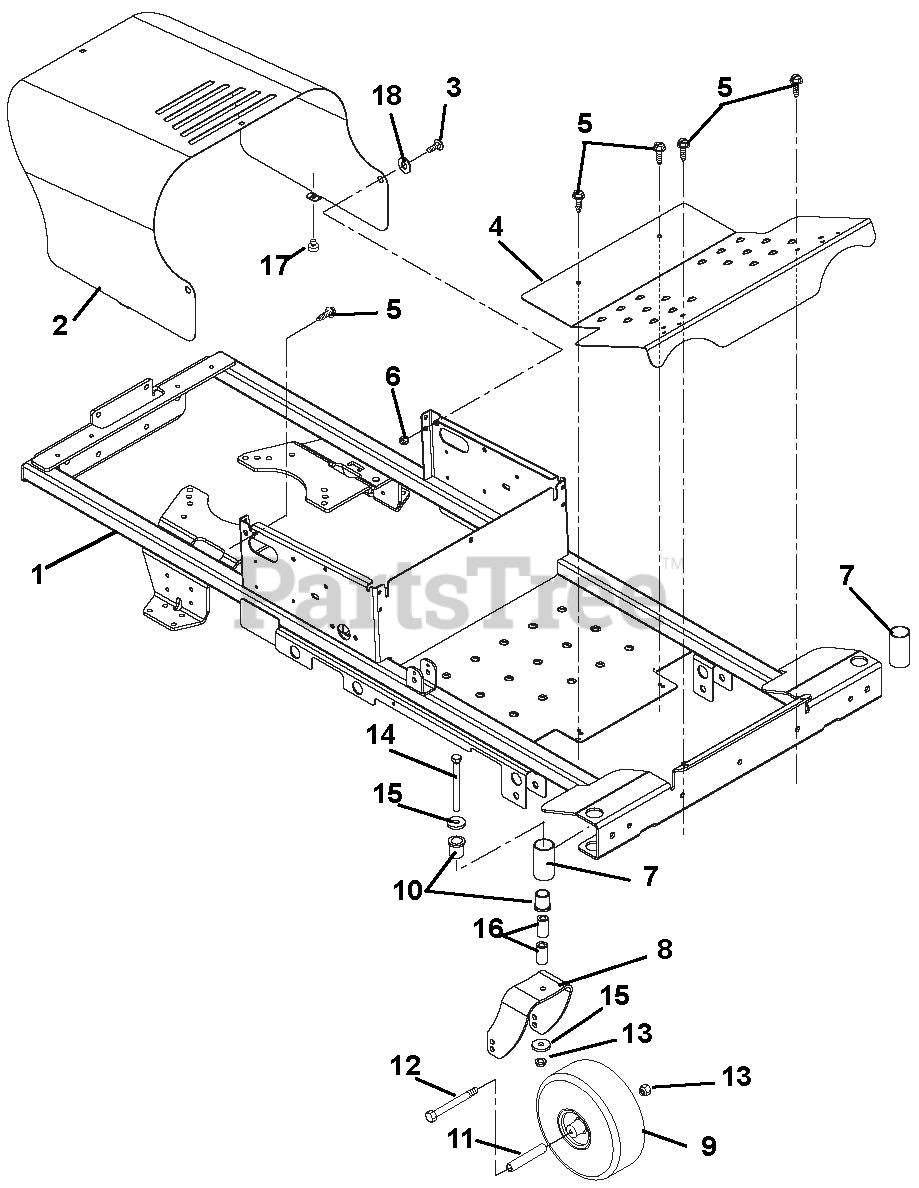

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Gravely 00278851

Weldment, MZ Frame

$

$

Not available

2

Gravely 00288653

Engine Cover

$

$

Not available

3

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

4

Gravely 00279753

Footrest, MZ/MZT
(Superseded to 00460553)

$

$

Not available

5

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00354700

Sleave, Caster

$52.99

$

In Stock, only 2 left!

0

8

Gravely 00363351

Fork, Caster
(Superseded to 03368551)

$72.99

$

In Stock, Qty 11

0

9

Gravely 01588100

Assembly, Tire 4 x 11- 2 Ply
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

10

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

11

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

12

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

13

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05975400

Bolt, Hex .50-13 x 5.00 Grade 8

$5.99

$

In Stock, only 2 left!

0

15

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

16

Gravely 00363100

Spacer, Caster

$6.99

$

In Stock, Qty 11

0

17

Gravely 07516000

Button Bumper

$0.99

$

In Stock, Qty 14

0

18

Gravely 06443300

Washer, Flat Nylon .518 x 1.000 x .080

$0.99

$

In Stock, Qty 20+

0
