915064 (Mini-ZT 1534) - Gravely 34" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 019999) 34" Mower Deck, Belt, Idlers, Blades And Baffles Parts Diagram

34" Zero-Turn Mower, 15hp Kohler

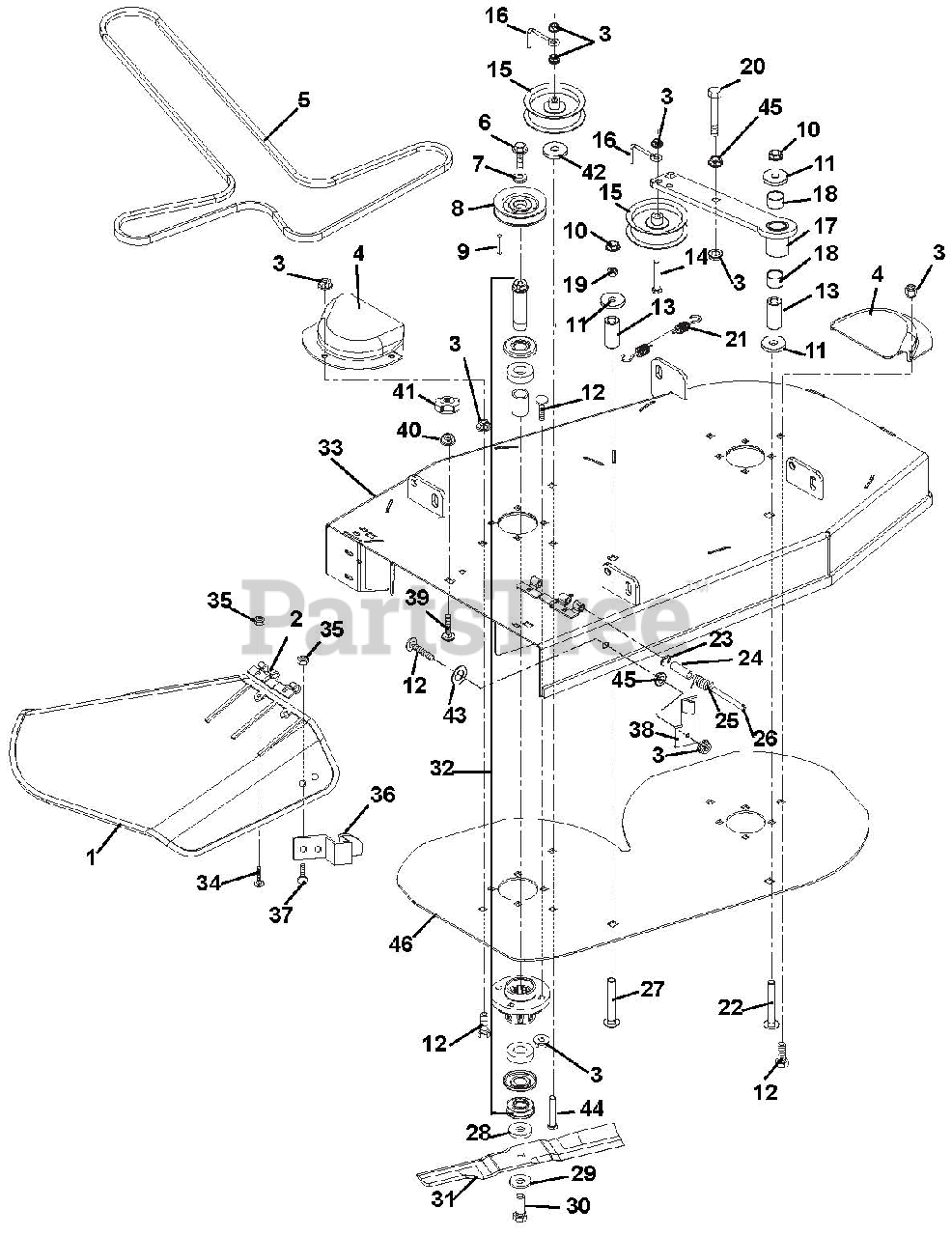

34" Mower Deck, Belt, Idlers, Blades And Baffles Parts Diagram

  • Title

1

Gravely 00348700

Discharge Chute
(Superseded to 01585500)

$78.99

$

In Stock, only 1 left!

0

2

Gravely 02709551

Hinge, Plate

$27.99

$

In Stock, only 1 left!

0

3

Gravely 06545500

Nut, 3/8-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00387800

Belt Cover

$43.99

$

Usually ships in 4-12 days

0

5

Gravely 07200015

V-Belt, HA x 97

$71.99

$

In Stock, only 1 left!

0

6

Gravely 05974500

Bolt, Hex .38-16 x 1.00 Grade 8 w/Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

8

Gravely 01610400

Sheave

$45.99

$

In Stock, only 1 left!

0

9

Gravely 06611100

Key, Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06445000

Washer, Flat Steel .515 x .625 x .250

$5.99

$

In Stock, only 4 left!

0

12

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

13

Gravely 01581700

Spacer

$5.99

$

In Stock, Qty 20+

0

14

Gravely 05958400

Bolt, Hex .38-16 x 2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 07324100

Idler Flanged 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

16

Gravely 03648300

Finger Belt

$21.99

$

In Stock, only 1 left!

0

17

Gravely 00431851

Weldment, Idler Pivot Arm

$

$

Not available

18

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, only 4 left!

0

19

Gravely 06543300

Nut, Spinlock Flange .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 05963300

Bolt, Hex .38-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

21

Gravely 08313300

Spring, Tension .187 x 1.50 x 9.94

$45.99

$

In Stock, only 2 left!

0

22

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

23

Gravely 05706300

Ring, Retaining External .312 x .025

$0.99

$

Usually ships in 4-12 days

0

24

Gravely 035997

Bushing, Sleeve
(Superseded to 02202900)

$5.99

$

In Stock, only 4 left!

0

25

Gravely 035996

Spring, Torsion .095 x .50 x 1.00
(Superseded to 08307200)

$20.99

$

Usually ships in 4-12 days

0

26

Gravely 03624200

Pin

$51.99

$

In Stock, only 1 left!

0

27

Gravely 06218600

Bolt, Round Head Square Neck .50-13 x 3.75

$7.99

$

Usually ships in 4-12 days

0

28

Gravely 06442900

Washer, Flat .688 x 1.75 x .134
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

29

Gravely 06445700

Washer, Beveled .63 x 1.625 x .140

$4.99

$

In Stock, Qty 20+

0

30

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

31

Gravely 08861600

Blade, Mower

Note: (915052, 064)

$23.99

$

In Stock, Qty 20+

0

32

Gravely 51510000

Assembly, Spindle

$216.99

$

In Stock, Qty 14

0

33

Gravely 00290151

34" Zoom/ZT Deck

$711.99

$

Usually ships in 4-12 days

0

34

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 01597751

Flat Spring

$20.99

$

Usually ships in 4-12 days

0

37

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 01599151

Bracket, Chute Lock

$34.99

$

Usually ships in 4-12 days

0

39

Gravely 06221800

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

40

Gravely 06530400

Nut, Spinlock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 07534800

Knob, Clamping

$3.49

$

In Stock, Qty 20+

0

42

Gravely 01594000

Spacer, .39 x 1.50 x .380

$3.99

$

In Stock, only 1 left!

0

43

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

44

Gravely 06225400

Bolt, Round Head Square Neck .38-18 x 2.75 Grade 5
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

45

Gravely 06534900

Nut, Spinlock Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 00385451

Plate, 34" Doubler

$

$

Not available
