915064 (Mini-ZT 1534) - Gravely 34" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Steering Controls Parts Diagram

34" Zero-Turn Mower, 15hp Kohler

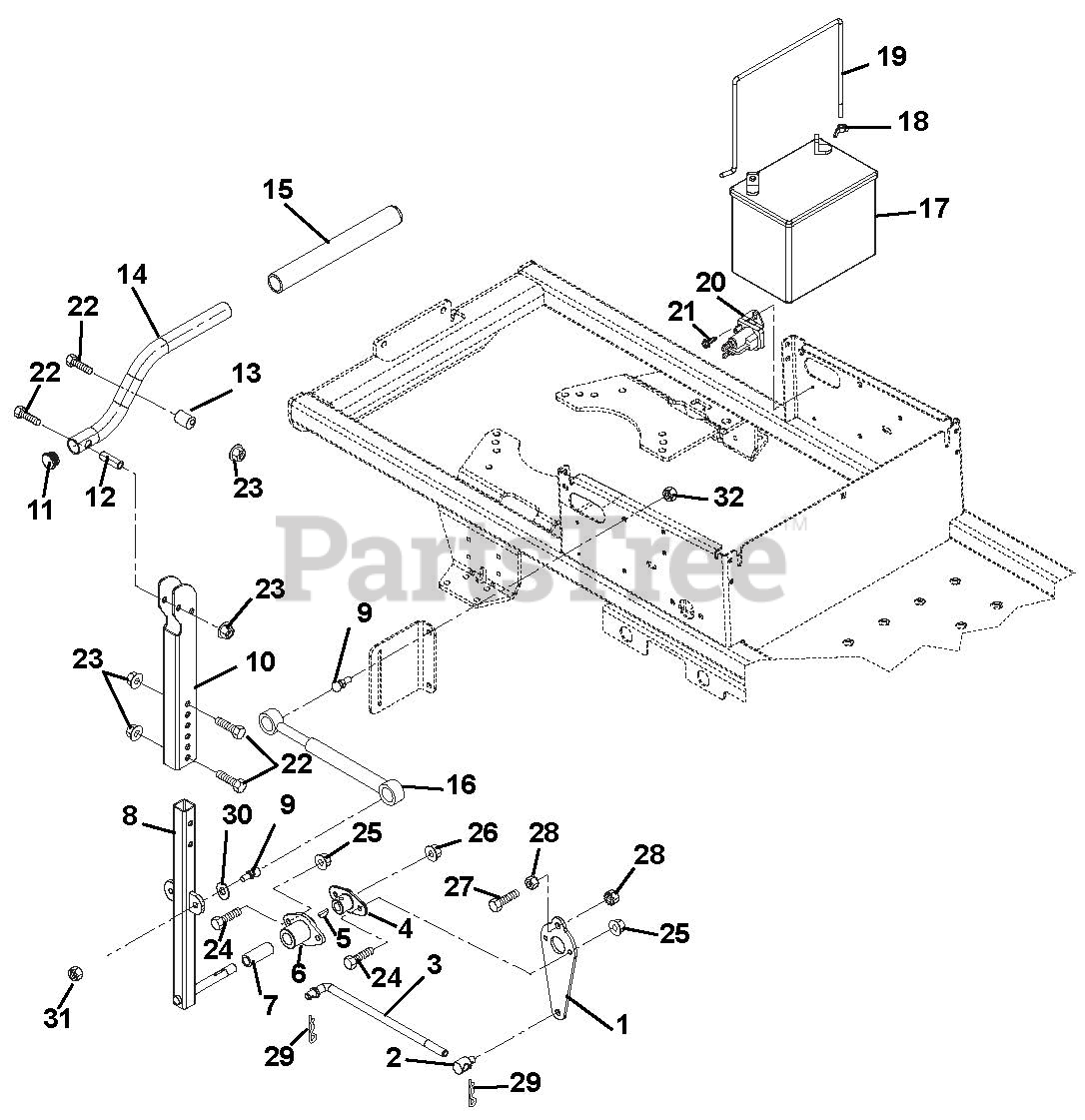

Steering Controls Parts Diagram

  • Title

1

Gravely 00292051

Link, Control

$

$

Not available

2

Gravely 02493000

Pivot, Rod

$

$

Not available

3

Gravely 00292100

Link, Wireform

$

$

Not available

4

Gravely 01525500

Arm, Speed Control

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 06608600

Key, Woodruff .125 x .75

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 00354500

Bushing, Flanged

$

$

Not available

7

Gravely 00354600

Bushing, 1/2 x 3/4 x 1-7/8

$

$

Not available

8

Gravely 00289551

Weldment, Lower Handlebar

$

$

Not available

9

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

10

Gravely 00388051

Channel, Upper Handlebar

$

$

Not available

11

Gravely 07533300

Caplug, Handlebar

$2.49

$

In Stock, only 3 left!

0

12

Gravely 00364900

Bushing

$6.49

$

In Stock, only 2 left!

0

13

Gravely 00372300

Eccentric

$11.99

$

In Stock, only 4 left!

0

14

Gravely 00354951

Handlebar

$

$

Not available

15

Gravely 01570000

Grip, Handlebar

$17.99

$

In Stock, only 2 left!

0

16

Gravely 09273400

Damper, Control

$71.99

$

In Stock, only 4 left!

0

17

Gravely 01554800

Battery

$

$

Not available

18

Gravely 06537500

Nut, Lock Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

19

Gravely 01533400

Battery Rod

$25.99

$

Usually ships in 4-12 days

0

20

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

21

Gravely 07411600

Screw, Tap .250-20 x .37
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

23

Gravely 06545400

Nut, 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06534900

Nut, Spinlock Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06714800

Pin, Hair #25
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
