915064 (Mini-ZT 1534) - Gravely 34" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Seat And Seat Support Parts Diagram

34" Zero-Turn Mower, 15hp Kohler

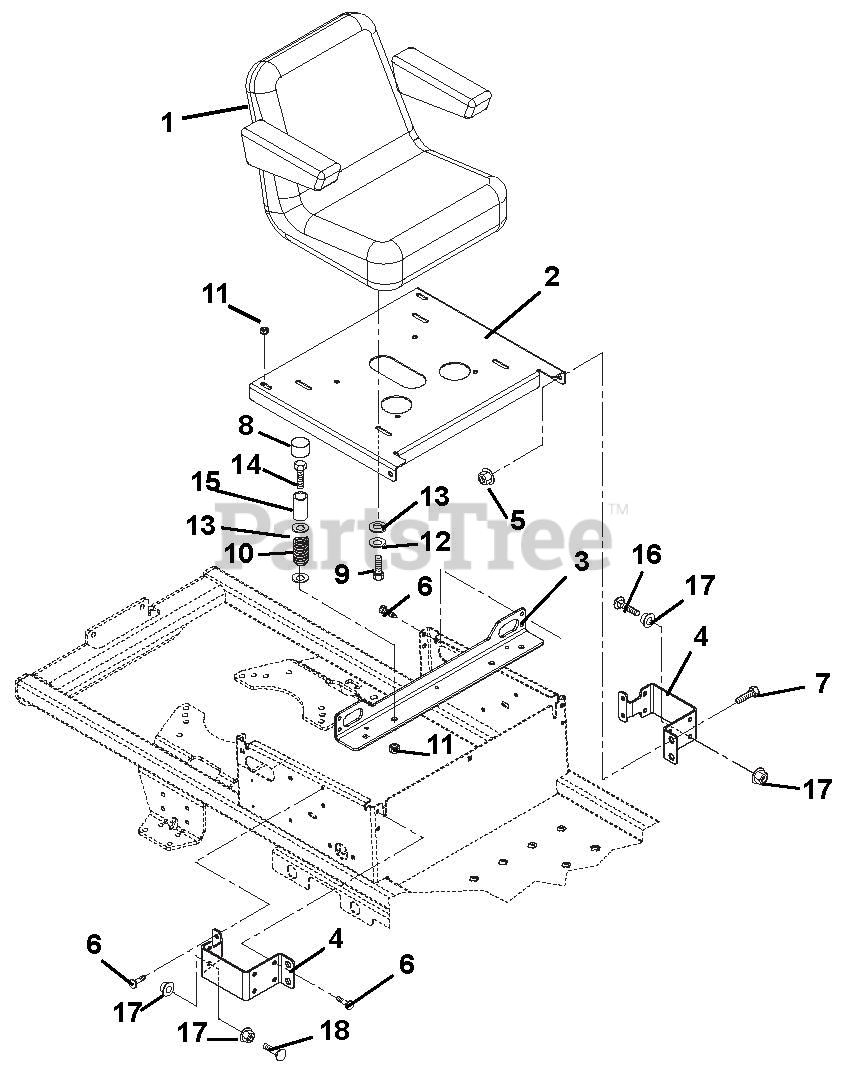

Seat And Seat Support Parts Diagram

  • Title

1

Gravely 00366300

Seat with Arm

$

$

Not available

2

Gravely 00288751

Seat Plate

$

$

Not available

3

Gravely 00288851

Bracket, Seat Spring

$

$

Not available

4

Gravely 00350051

Bracket, Seat Pivot

$

$

Not available

5

Gravely 06542000

Nut, Locking Flange Nyloc .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07411500

Screw, Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07056700

Bolt, Shoulder .375-16 x 1.50

$3.99

$

In Stock, only 2 left!

0

8

Gravely 00337700

Hub Cap

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00571600

Spring, Compression 2.9 x 2.02 O.D.

$

$

Not available

11

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06439100

Washer-Flat-Steel .328 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

14

Gravely 05960600

Bolt, Hex .31-18 x 2.75 Grade 5
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 02202900

Bushing, Sheave .344 x .502 x 1.437

$5.99

$

In Stock, only 4 left!

0

16

Gravely 06219400

Bolt, Round Head Square Neck .31-18 x 2.50
(Superseded to 06200409)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0
