915063 (1540) - Ariens Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 019999) Steering Controls Parts Diagram

Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler

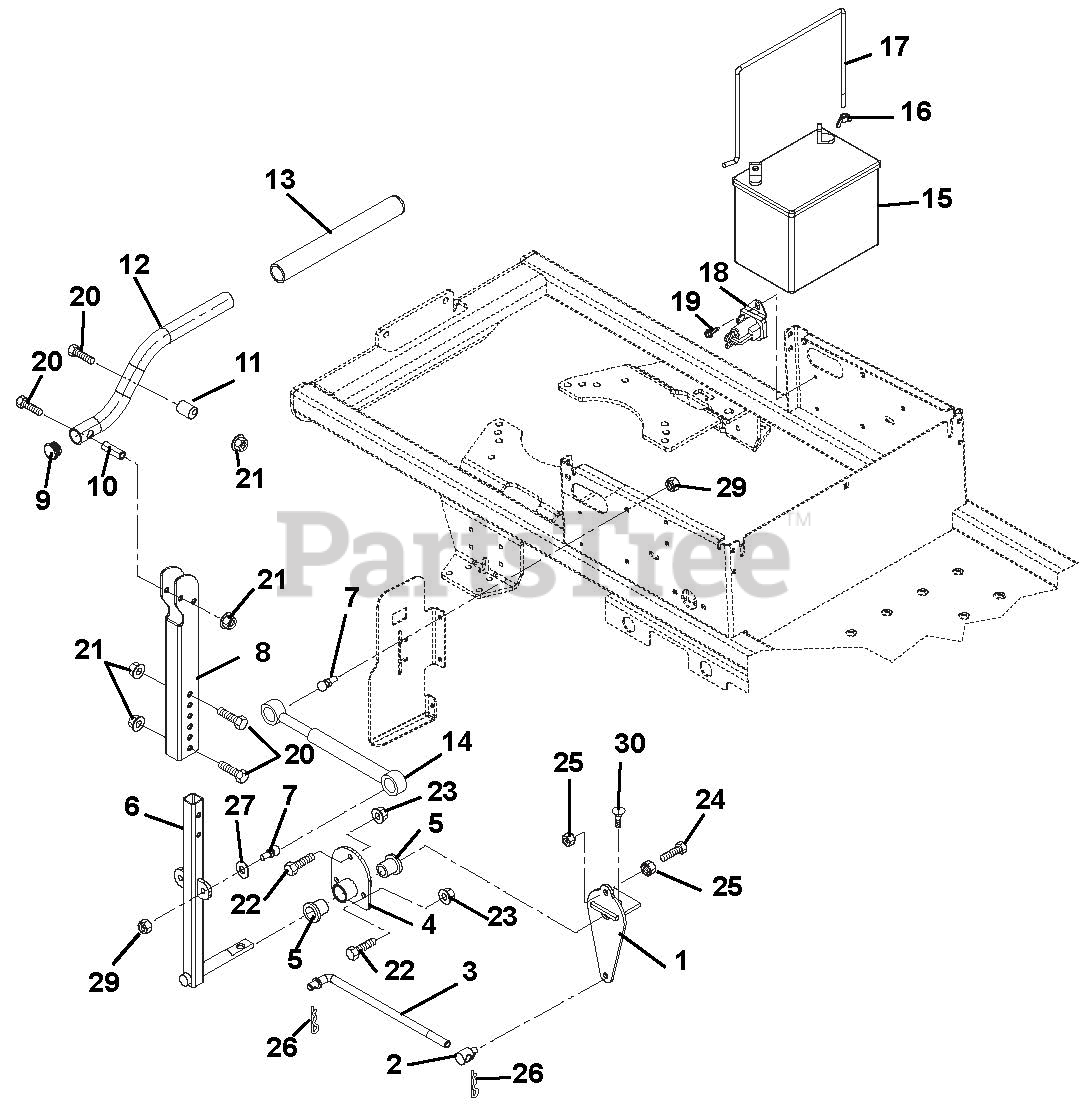

Steering Controls Parts Diagram

  • Title

1

Ariens 00436800

CONTROL LINK WMT

$

$

Not available

2

Ariens 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

3

Ariens 00292100

LINK,WIREFORM

$

$

Not available

4

Ariens 00437800

WMT, STEERING BUSHING
(Superseded to 00437851)

$

$

Not available

5

Ariens 01591100

BUSHING-1"X.75"X1"

$

$

Not available

6

Ariens 00437051

WMT, CONTROL ARM

$

$

Not available

7

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

8

Ariens 00388051

CHANNEL,UPPER HANDLEBAR

$

$

Not available

9

Ariens 07533300

CAPLUG, HANDLEBAR

$2.49

$

In Stock, only 3 left!

0

10

Ariens 00364900

BSHG, SPCR .330X.500X1.01 PM

$6.49

$

In Stock, only 2 left!

0

11

Ariens 00372300

BSHG,ECCEN .328X.750X1.01 PM

$11.99

$

In Stock, only 4 left!

0

12

Ariens 00354951

HANDLE BAR

$

$

Not available

13

Ariens 01570000

GRIP - HANDLEBAR

$17.99

$

In Stock, only 2 left!

0

14

Ariens 09273400

DAMPER, CONTROL

$71.99

$

In Stock, only 4 left!

0

15

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

16

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

17

Ariens 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

18

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

19

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 05900018

BOLT, 3/8-16X1 FSHCS PLN

$

$

Not available
