915063 (1540) - Ariens Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Baffles And Chute Parts Diagram

Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler

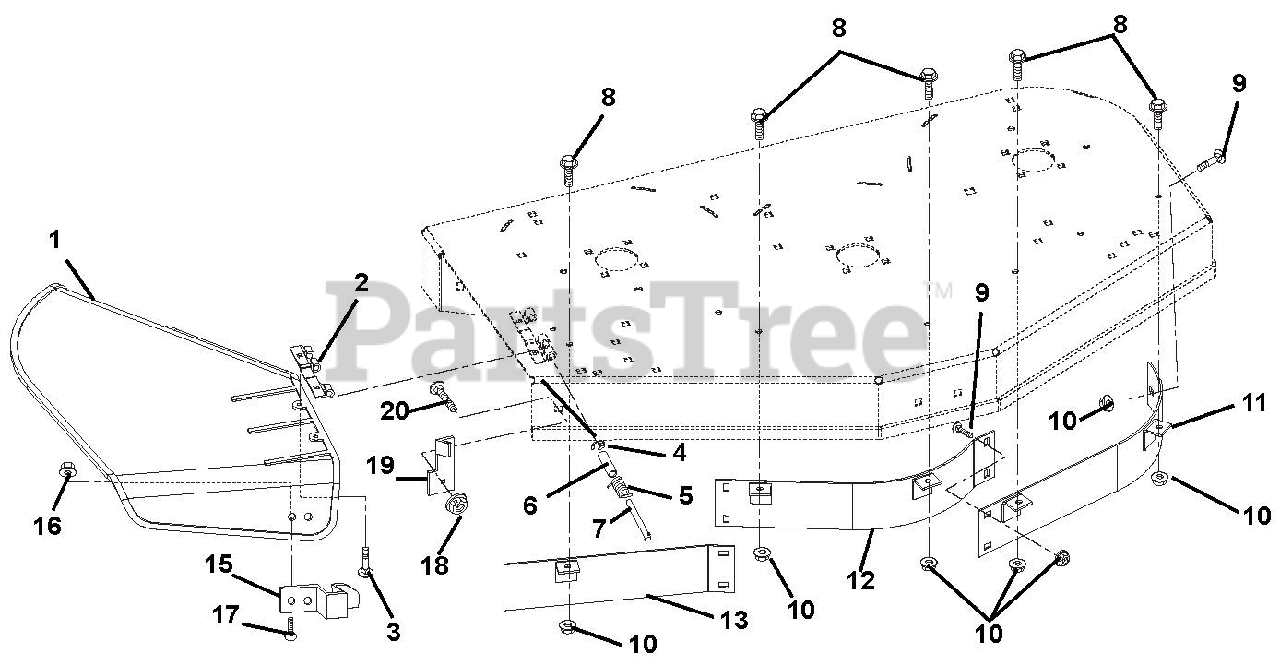

Baffles And Chute Parts Diagram

  • Title

1

Ariens 01585500

DEFLECTOR, CHUTE

$78.99

$

In Stock, only 1 left!

0

2

Ariens 02709551

HINGE PLATE

$27.99

$

In Stock, only 1 left!

0

3

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

4

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

5

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

6

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

7

Ariens 03624200

PIN

$51.99

$

In Stock, only 1 left!

0

8

Ariens 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

9

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 01576151

BAFFLE - LEFT FRONT - 40"

$72.99

$

Usually ships in 4-12 days

0

12

Ariens 01576251

BAFFLE - CENTER FRONT - 40"

$69.99

$

Usually ships in 4-12 days

0

13

Ariens 01576351

BAFFLE - RIGHT FRONT - 40"

$66.99

$

Usually ships in 4-12 days

0

14

Ariens 01576751

DEFLECTOR-40"

Note: Not Shown

$34.99

$

In Stock, only 1 left!

0

15

Ariens 01597751

FLAT SPRING

$20.99

$

In Stock, only 1 left!

0

16

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 01599151

BRACKET, CHUTE LOCK

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0
