915063 (1540) - Ariens Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) 40" Mower Deck, Belt, Idlers And Blades Parts Diagram

Mini-Zoom 40" Zero-Turn Mower, 15hp Kohler

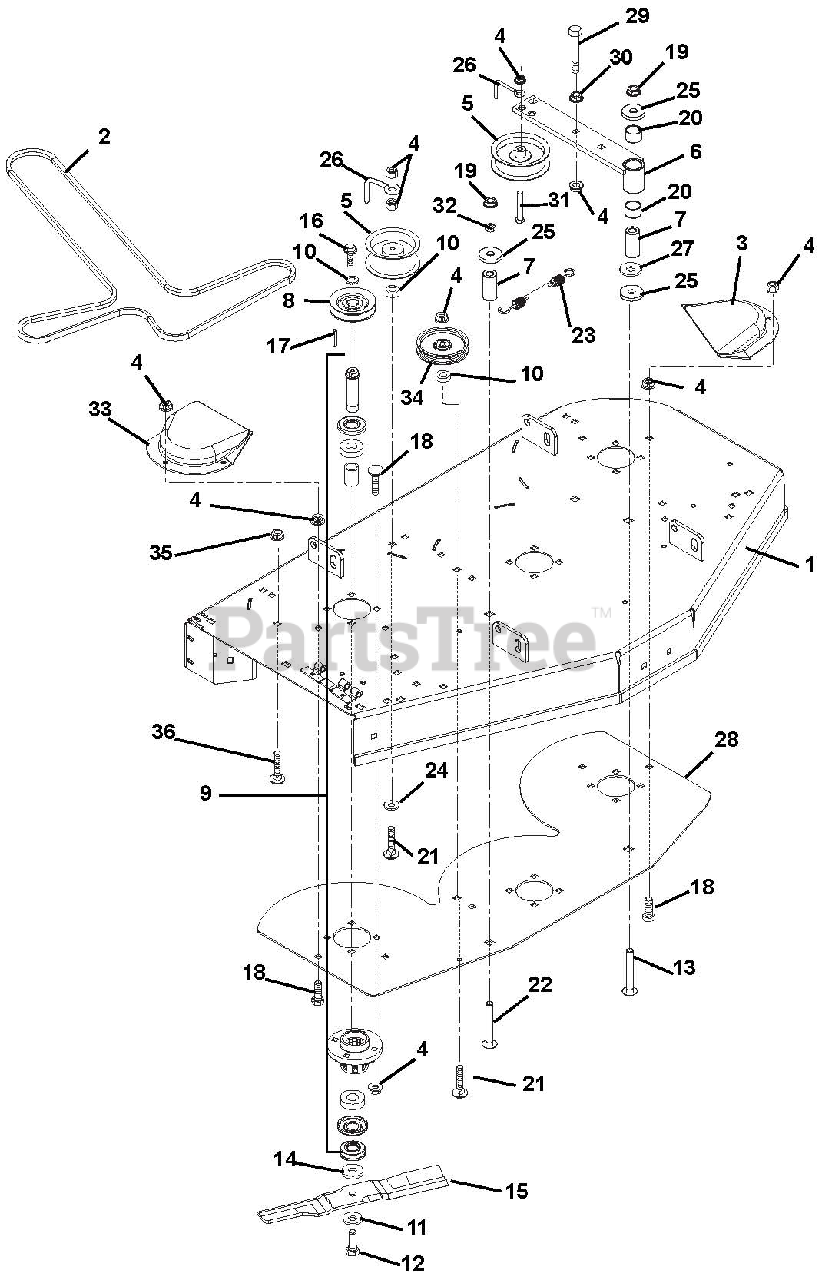

40" Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Ariens 00388651

WMT,40"DECK
(Superseded to 51530400)

$515.99

$

Usually ships in 4-12 days

0

2

Ariens 07200002

V-BELT, HA-WRAPPED

$74.99

$

In Stock, only 1 left!

0

3

Ariens 01520100

COVER

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 07327100

PULLEY, IDLER 4.00

$37.99

$

In Stock, Qty 16

0

6

Ariens 09286451

WMT - IDLER PIVOT ARM

$170.99

$

Usually ships in 4-12 days

0

7

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

8

Ariens 01593800

SHEAVE, SPINDLE - 4.00 DIA.

$28.99

$

In Stock, only 2 left!

0

9

Ariens 51510000

ASSEMBLY, SPINDLE

$216.99

$

In Stock, Qty 14

0

10

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

11

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 20+

0

12

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

13

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

14

Ariens 06442900

@WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

15

Ariens 03498400

MOWER BLADE, 13.94"

Note: (13.88)

$19.99

$

In Stock, Qty 20+

0

16

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

17

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

19

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, only 4 left!

0

21

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

22

Ariens 06218600

@BLT-RDHDSQNK .50-13X3.75 G5YZ

$7.99

$

Usually ships in 4-12 days

0

23

Ariens 08313300

SG-TENS .187X1.50X9.94 WLD 40

$45.99

$

In Stock, only 2 left!

0

24

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 6

0

26

Ariens 00391900

BELT FINGER

$20.99

$

In Stock, only 2 left!

0

27

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

28

Ariens 00388751

PLATE,40"DOUBLER

$

$

Not available

29

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

30

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 00390000

BELT COVER

$107.99

$

In Stock, only 1 left!

0

34

Ariens 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

35

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0
