915057 (2148) - Ariens Zoom 48" Zero-Turn Mower, 21hp Kohler (SN: 010000 & Above) Mower Brackets And Rollers Parts Diagram

Zoom 48" Zero-Turn Mower, 21hp Kohler

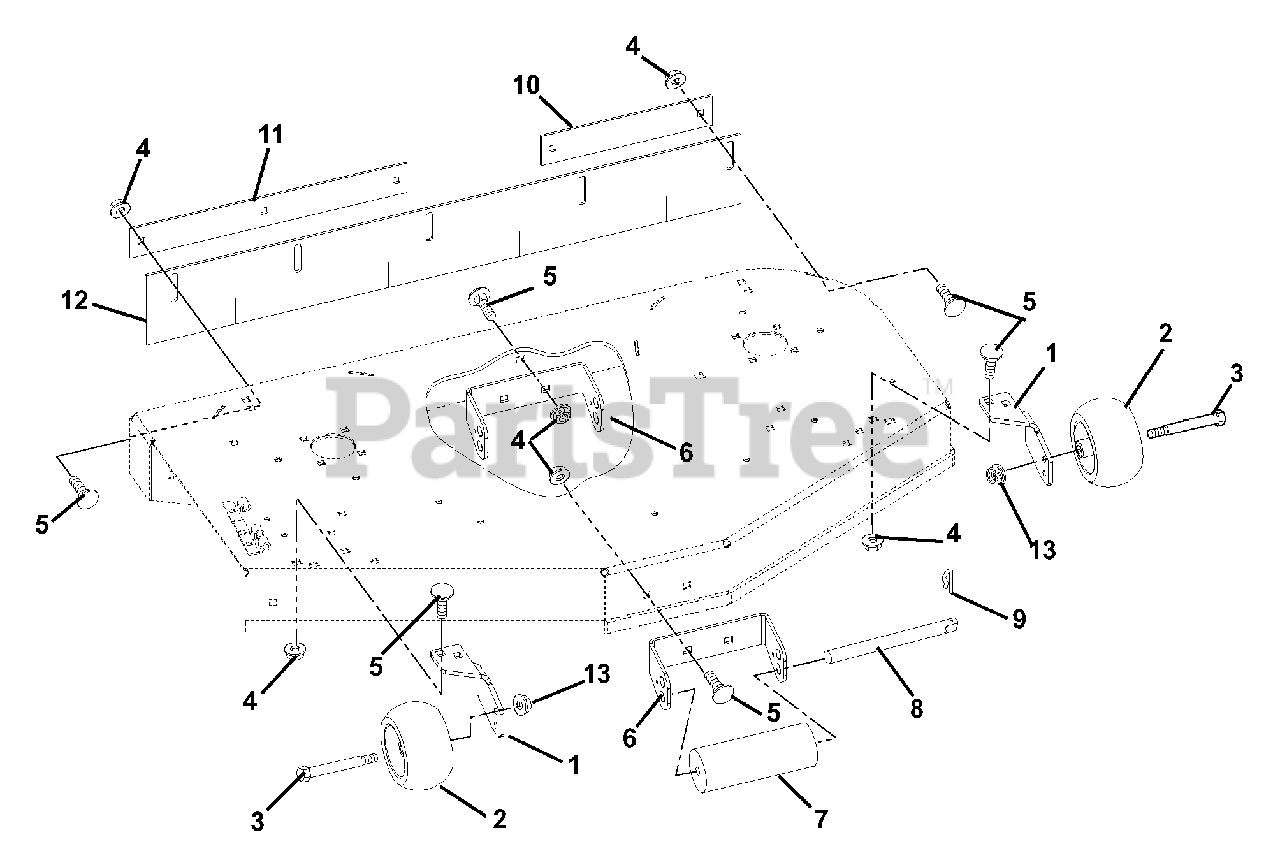

Mower Brackets And Rollers Parts Diagram

  • Title
1

Ariens 01574851

BRACKET, ANTI SCALP
(Superseded to 02950351)

Note: (915055, 057, 059, 067, 501)

$29.99

$

In Stock, Qty 7

0

2

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

Note: (915055, 057, 059, 067, 501)

$15.99

$

In Stock, Qty 20+

0

3

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

Note: (915055, 057, 059, 067, 501)

$6.99

$

In Stock, Qty 20+

0

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (915055, 057, 059, 067, 501)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (915065, 502)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (915055, 057, 059, 067, 501)

$2.49

$

In Stock, Qty 10

0

5

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

Note: (915065, 502)

$2.49

$

In Stock, Qty 10

0

6

Ariens 00355651

BRACKET, ROLLER MOUNT

Note: (915055, 057, 059, 067, 501)

$61.99

$

In Stock, only 4 left!

0

6

Ariens 00355651

BRACKET, ROLLER MOUNT

Note: (915065, 502)

$61.99

$

In Stock, only 4 left!

0

7

Ariens 03114100

ROLLER

Note: (915055, 057, 059, 067, 501)

$22.99

$

In Stock, Qty 20+

0

7

Ariens 03114100

ROLLER

Note: (915065, 502)

$22.99

$

In Stock, Qty 20+

0

8

Ariens 00356500

PIN, ROLLER

Note: (915055, 057, 059, 067, 501)

$34.99

$

In Stock, only 1 left!

0

8

Ariens 00356500

PIN, ROLLER

Note: (915065, 502)

$34.99

$

In Stock, only 1 left!

0

9

Ariens 06714500

PIN, SPRING CLIP

Note: (915055, 057, 059, 067, 501)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06714500

PIN, SPRING CLIP

Note: (915065, 502)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 01577451

BAR, LH RETAINER STRIPER

Note: (915055, 057, 059, 067, 501)

$17.99

$

In Stock, only 1 left!

0

11

Ariens 01577651

BAR, RETAINING STRIPER-44"

Note: (915055, 501)

$

$

Not available

11

Ariens 01577351

BAR, RETAINING STRIPER-52"

Note: (915057, 059)

$27.99

$

In Stock, only 1 left!

0

11

Ariens 01576951

BAR, RETAINING STRIPER-40"

Note: (915067)

$

$

Not available

12

Ariens 01577500

STRIPER, RUBBER-44"

Note: (915055, 501)

$78.99

$

Usually ships in 4-12 days

0

12

Ariens 01577000

STRIPER, RUBBER-48"

Note: (915057)

$82.99

$

Usually ships in 4-12 days

0

12

Ariens 01577200

STRIPER, RUBBER-52"

Note: (915059)

$

$

Not available

12

Ariens 01576800

STRIPER, RUBBER-40"

Note: (915067)

$60.99

$

Usually ships in 4-12 days

0

13

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (915055, 057, 059, 067, 501)

$1.49

$

In Stock, Qty 20+

0
