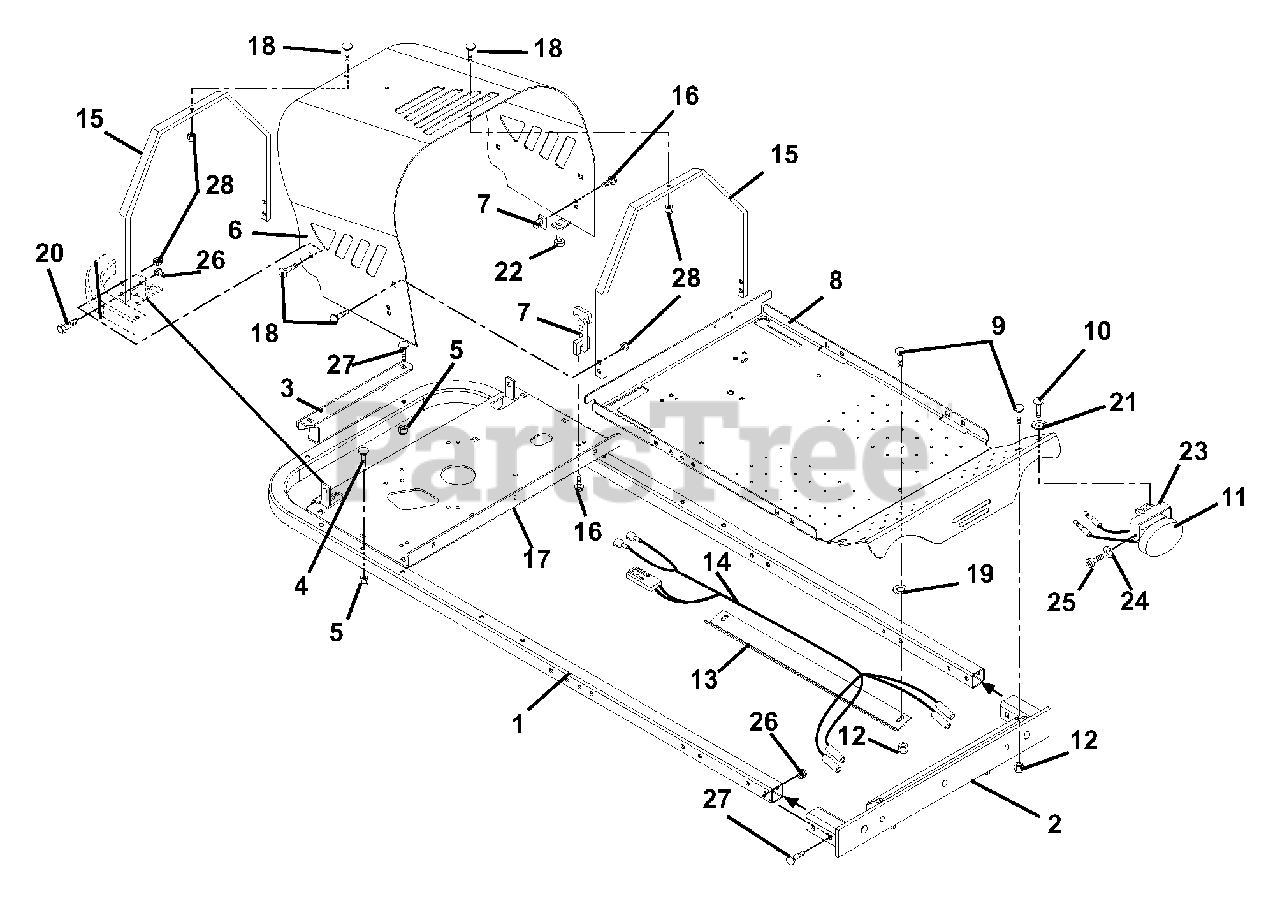

915057 (2148) - Ariens Zoom 48" Zero-Turn Mower, 21hp Kohler (SN: 005000 - 009999) Frame, Hood And Footrest Parts Diagram

Zoom 48" Zero-Turn Mower, 21hp Kohler

Frame, Hood And Footrest Parts Diagram

  • Title
1

Ariens 01581251

TUBE-FRAME BLK

$239.99

$

Usually ships in 4-12 days

0

2

Ariens 01600951

WMT, AXLE MOUNT

$

$

Not available

3

Ariens 51512800

TRAILER HITCH W/DECALS

$83.99

$

Usually ships in 4-12 days

0

4

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

5

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01605059

HOOD, ZOOM

$148.99

$

Usually ships in 4-12 days

0

7

Ariens 09079500

LATCH, RUBBER

$34.99

$

In Stock, only 1 left!

0

8

Ariens 01578359

FOOTREST

$

$

Not available

9

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$

$

Not available

11

Ariens 01588200

LIGHT-CONS RIDE ON- SEE B-2124

Note: (Includes Halogen H3 12 Volt 55 Watt Bulb)

$

$

Not available

12

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 01589951

BKT-HARNESS

$22.99

$

Usually ships in 4-12 days

0

14

Ariens 01587900

HARNESS, LIGHT

$

$

Not available

15

Ariens 01605151

BRACE, HOOD

$114.99

$

In Stock, only 1 left!

0

16

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 00183651

PLATE, ENGINE

$

$

Not available

18

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

20

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

21

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

23

Ariens 01603100

WMT, LIGHT BRACKET

$64.99

$

Usually ships in 4-12 days

0

24

Ariens 06311200

WSHR-LK 4MMX1MM REG CL ZINC

$

$

Not available

25

Ariens 05980400

SCREW-M4X.07X8 SHCS CLZNC

$1.99

$

In Stock, only 2 left!

0

26

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

28

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
