915048 (ZT 2148) - Gravely 48" Zero-Turn Mower, 21hp Kohler (SN: 010000 & Above) Steering Controls IZT Parts Diagram

48" Zero-Turn Mower, 21hp Kohler

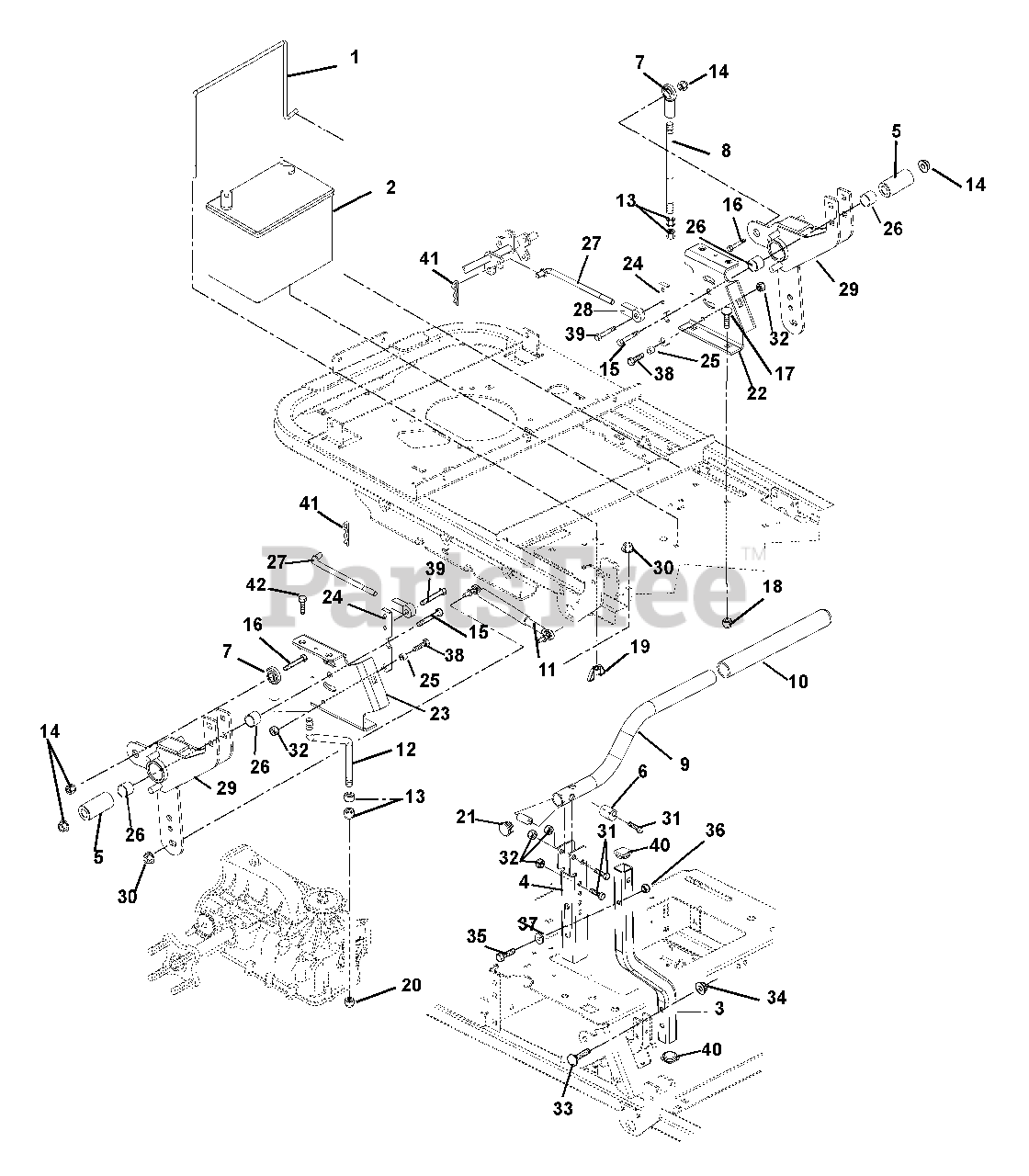

Steering Controls IZT Parts Diagram

  • Title

1

Gravely 01533400

Battery Rod

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 01554800

Battery (12 Volt, 330 CCA, 50 Min. Reserve Cap.)

Note: (12 Volt, 330 CCA, 50 Min. Reserve Cap.)

$

$

Not available

3

Gravely 00361751

Control Arm

$

$

Not available

4

Gravely 00362651

Channel, Handlebar Adjustment

$

$

Not available

5

Gravely 01581700

Spacer

$5.99

$

In Stock, Qty 20+

0

6

Gravely 00372300

Eccentric

$11.99

$

In Stock, only 4 left!

0

7

Gravely 050350

Rod End, .50 Right Hand
(Superseded to 03461700)

$

$

Not available

8

Gravely 01569600

Rod, Transaxle Left Hand

$77.99

$

Usually ships in 4-12 days

0

9

Gravely 00362851

Handlebar

$

$

Not available

10

Gravely 01570000

Grip, Handlebar

$17.99

$

In Stock, only 2 left!

0

11

Gravely 00188700

Damper

$97.99

$

In Stock, only 2 left!

0

12

Gravely 01569500

Rod, Transaxle Right Hand

$75.99

$

In Stock, only 2 left!

0

13

Gravely 06539500

Nut, Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05959900

Bolt, Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

16

Gravely 05970600

Bolt, Hex .50-13 x 1.75 Grade 5
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

18

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 06544000

Nut, Jam Nyloc .50-20 Grade 2
(Superseded to 06500818)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 07533300

Caplug, Handlebar

$2.49

$

In Stock, only 3 left!

0

22

Gravely 00359700

Weldment, Control LH

$

$

Not available

23

Gravely 00359800

Weldment, Control RH

$

$

Not available

24

Gravely 00383200

Bracket, Neutral Stop

$

$

Not available

25

Gravely 00359900

Spacer, Neutral Stop

$

$

Not available

26

Gravely 05435800

Bearing, 1.00 x 1.12 x .75

$9.49

$

In Stock, only 4 left!

0

27

Gravely 00365100

Link, Brake Rod

$34.99

$

In Stock, only 1 left!

0

28

Gravely 03563100

Rod, End .38 RH

$15.99

$

In Stock, only 2 left!

0

29

Gravely 00371951

Weldment, Steering Control
(Superseded to 00371900)

$193.99

$

Usually ships in 4-12 days

0

30

Gravely 06500007

Nut, Locking Top Flange 8 x 1.25

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

32

Gravely 06545400

Nut, 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$2.99

$

In Stock, Qty 6

0

34

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05964700

Bolt, Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

36

Gravely 06531000

Nut, Locking Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 05513400

Bushing, Flange .265 x .437 x .250 x .750

$2.49

$

In Stock, only 3 left!

0

38

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

39

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 00166800

Caplug, Square

$

$

Not available

41

Gravely 06713500

Pin, Hair .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 05900016

Screw, Cap .38-16 x 2
(Superseded to 06000001)

$

$

Not available
