915048 (ZT 2148) - Gravely 48" Zero-Turn Mower, 21hp Kohler (SN: 010000 & Above) Baffles And Chute Parts Diagram

48" Zero-Turn Mower, 21hp Kohler

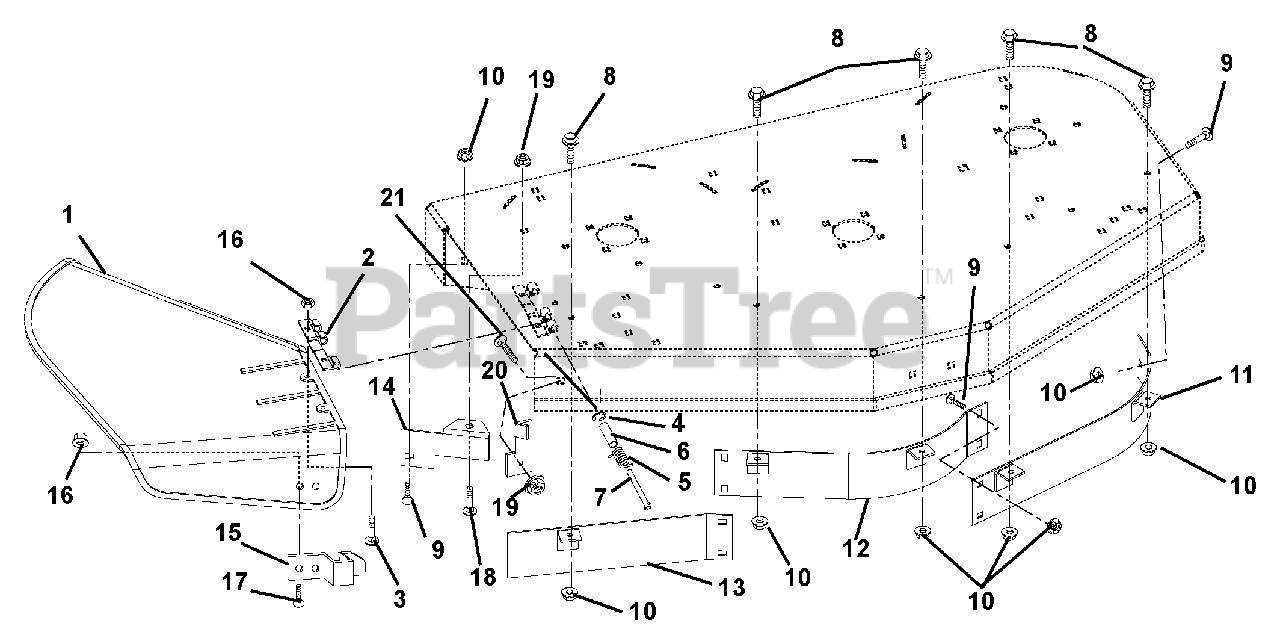

Baffles And Chute Parts Diagram

  • Title

1

Gravely 01585500

Deflector, Chute

$78.99

$

In Stock, only 1 left!

0

2

Gravely 02709551

Hinge, Plate

$27.99

$

In Stock, only 1 left!

0

3

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

4

Gravely 05706300

Ring, Retaining External .312 x .025

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 035996

Spring, Torsion .095 x .50 x 1.00
(Superseded to 08307200)

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 035997

Bushing, Sleeve
(Superseded to 02202900)

$5.99

$

In Stock, only 4 left!

0

7

Gravely 03624200

Pin

$51.99

$

In Stock, only 1 left!

0

8

Gravely 07049600

Bolt, Serrated Hex Flange Washer Head .31-18 x .75

$2.99

$

In Stock, Qty 5

0

9

Gravely 06220800

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06545400

Nut-.312-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 01576151

Weldment, Upper Left Baffle-40" (042, 044)

Note: (042, 044)

$72.99

$

Usually ships in 4-12 days

0

11

Gravely 01572451

Weldment, Upper Left Baffle-44" (046)

Note: (046)

$99.99

$

Usually ships in 4-12 days

0

11

Gravely 01574051

Weldment, Upper Left Baffle-48" (048)

Note: (048)

$79.99

$

In Stock, only 1 left!

0

11

Gravely 01575051

Weldment, Upper Left Baffle-52" (050)

Note: (050)

$

$

Not available

12

Gravely 01576251

Weldment, Upper Center Baffle-40" (042, 044)

Note: (042, 044)

$69.99

$

Usually ships in 4-12 days

0

12

Gravely 01572551

Weldment, Upper Center Baffle-44" (046)

Note: (046)

$75.99

$

Usually ships in 4-12 days

0

12

Gravely 01574151

Weldment, Upper Center Baffle-48" (048)

Note: (048)

$66.99

$

Usually ships in 4-12 days

0

12

Gravely 01575151

Weldment, Upper Center Baffle-52" (050)

Note: (050)

$103.99

$

Usually ships in 4-12 days

0

13

Gravely 01576351

Weldment, Upper Right Baffle-40" (042, 044)

Note: (042, 044)

$66.99

$

Usually ships in 4-12 days

0

13

Gravely 01572651

Weldment, Upper Right Baffle-44" (046)

Note: (046)

$36.99

$

Usually ships in 4-12 days

0

13

Gravely 01574251

Weldment, Upper Right Baffle-48" (048)

Note: (048)

$60.99

$

Usually ships in 4-12 days

0

13

Gravely 01575251

Weldment, Upper Right Baffle-52" (050)

Note: (050)

$55.99

$

Usually ships in 4-12 days

0

14

Gravely 01576751

Deflector, 40" (042, 044)

Note: (042, 044)

$34.99

$

In Stock, only 1 left!

0

14

Gravely 01574651

Deflector, 44"/48" (046, 048)

Note: (046, 048)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 01575951

Deflector, 52" (050)

Note: (050)

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 01597751

Flat Spring

$20.99

$

In Stock, only 1 left!

0

16

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

19

Gravely 06545500

Nut, Flange Nyloc .375-18
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 01599151

Bracket, Chute Lock

$34.99

$

Usually ships in 4-12 days

0

21

Gravely 06224200

Bolt, Round Head Square Neck .38-16 x 1.50
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0
