915048 (ZT 2148) - Gravely 48" Zero-Turn Mower, 21hp Kohler (SN: 005000 - 009999) Frame, Hood And Footrest Parts Diagram

48" Zero-Turn Mower, 21hp Kohler

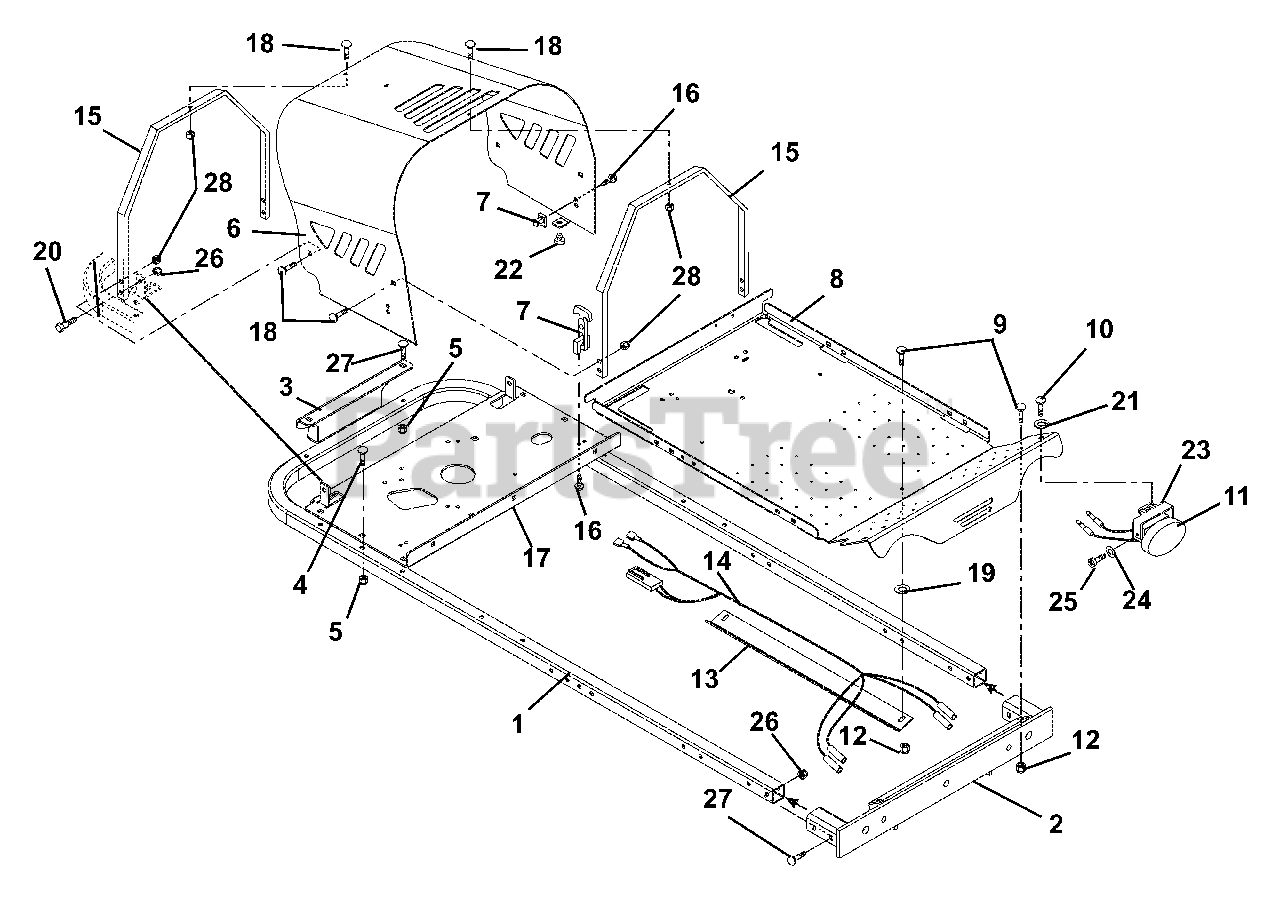

Frame, Hood And Footrest Parts Diagram

  • Title

1

Gravely 01581251

Tube, Frame

$239.99

$

Usually ships in 4-12 days

0

2

Gravely 01600951

Weldment, Axle Mount

$

$

Not available

3

Gravely 51512800

Trailer Hitch with Decal

$83.99

$

Usually ships in 4-12 days

0

4

Gravely 06224400

Bolt, Round Head Square Neck .38-16 x 2.5 Grade 5
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 01605053

Hood, Zoom

$

$

Not available

7

Gravely 09079500

Latch, Rubber

$34.99

$

In Stock, only 1 left!

0

8

Gravely 01578353

Footrest

$176.99

$

Usually ships in 4-12 days

0

9

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 039062

Screw-Cap Button Head .31-18 x .50 Grade 5
(Superseded to 07008100)

$

$

Not available

11

Gravely 01588200

Assembly, Light

Note: (Includes Halogen H3 12 Volt 55 Watt Bulb)

$

$

Not available

12

Gravely 06545400

Nut .312-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 01589951

Bracket, Harness

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 01587900

Harness, Light

$

$

Not available

15

Gravely 01605151

Brace, Hood

$114.99

$

In Stock, only 1 left!

0

16

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 00183651

Plate, Engine

$

$

Not available

18

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

20

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07516000

Button Bumper

$0.99

$

In Stock, Qty 14

0

23

Gravely 01603100

Bracket, Light

$64.99

$

Usually ships in 4-12 days

0

24

Gravely 06311200

Washer, Locking 4MM x 1MM Regular Cone Lock

$

$

Not available

25

Gravely 05980400

Screw, Socket Head Cap M4 x .07 x 8

$1.99

$

In Stock, only 2 left!

0

26

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06213400

Bolt-Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

28

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
