915048 (ZT 2148) - Gravely 48" Zero-Turn Mower, 21hp Kohler (SN: 000101 - 004999) Front Axle, Tires And Bumper Parts Diagram

48" Zero-Turn Mower, 21hp Kohler

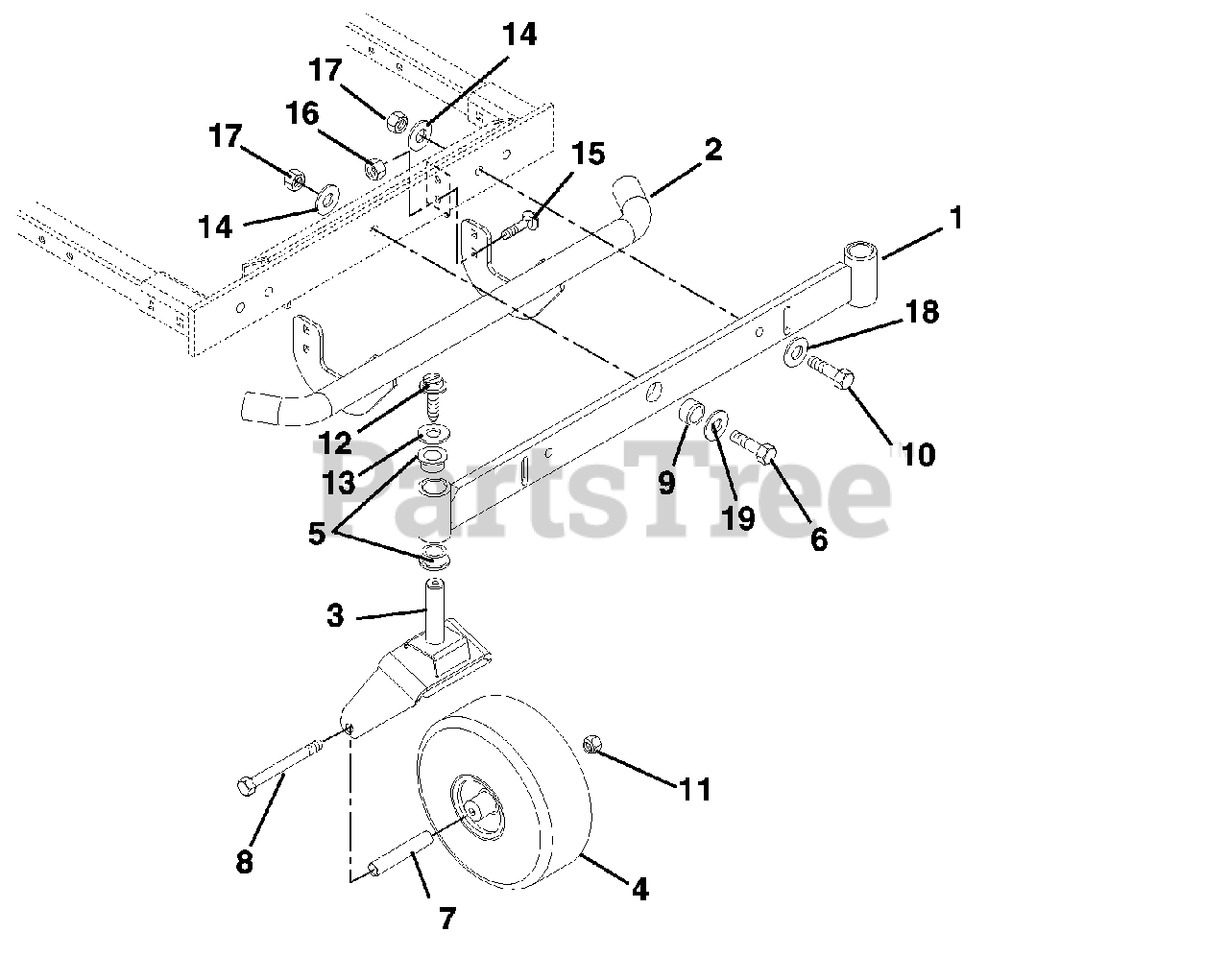

Front Axle, Tires And Bumper Parts Diagram

  • Title
1

Gravely 01600851

Weldment, Front Axle

$307.99

$

In Stock, only 1 left!

0

2

Gravely 01589551

Bumper, Zoom

$

$

Not available

3

Gravely 01547051

Fork, Caster

$151.99

$

Usually ships in 4-12 days

0

4

Gravely 01588100

Assembly, Tire 4 x 11- 2 Ply
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

5

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

6

Gravely 05969300

Bolt, Hex .62-11 x 2.50 Grade 5

$4.99

$

In Stock, only 2 left!

0

7

Gravely 09105200

Bushing, Caster Fork

$37.99

$

In Stock, only 3 left!

0

8

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

9

Gravely 01600400

Bushing, Axle Pivot

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 05979900

Bolt, Shoulder .75 .625-11 x 2.25 Socket Head Cap Skrew

$

$

Not available

11

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07417100

Screw, Tapping .38-16 x 1.25 Hex Washer Head
(Superseded to 07414700)

$2.99

$

In Stock, only 3 left!

0

13

Gravely 06443400

Washer-Flat-Steel .380 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0

14

Gravely 06435200

Washer, Flat .64 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

16

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06540700

Nut, Locking Nylon .625-11

$3.99

$

In Stock, only 2 left!

0

18

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06442900

Washer, Flat Steel .688 x 1.75 x .134
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0
