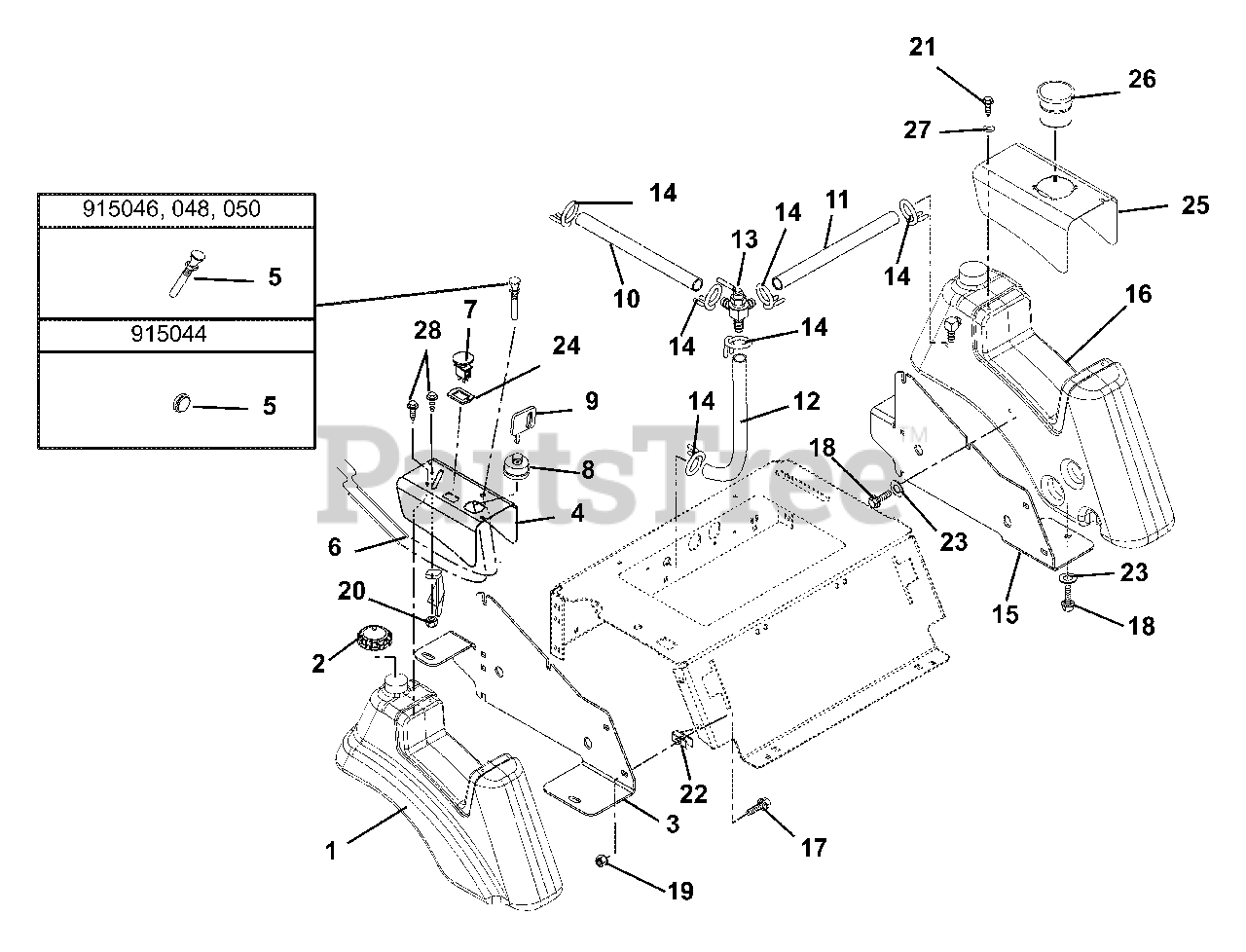

915046 (ZT 1944) - Gravely 44" Zero-Turn Mower, 19hp Kohler (SN: 005000 - 009999) Fuel Tank Parts Diagram

44" Zero-Turn Mower, 19hp Kohler

Fuel Tank Parts Diagram

  • Title

1

Gravely 01614100

Tank, Fuel - Right Hand

$262.99

$

Usually ships in 4-12 days

0

2

Gravely 01538400

Fuel Cap

$15.99

$

In Stock, only 1 left!

0

3

Gravely 00296751

Seat Plate Right Hand

$

$

Not available

4

Gravely 01614551

Right Hand Console

$

$

Not available

5

Gravely 01588400

Choke Cable (046, 048, 050)

Note: (046, 048, 050)

$68.99

$

In Stock, only 1 left!

0

5

Gravely 00529900

Hole Plug, Plastic .44 Hole (044)

Note: (044)

$

$

Not available

6

Gravely 01588500

Throttle Cable (046, 048, 050)

Note: (046, 048, 050)

$

$

Not available

6

Gravely 00355100

Throttle Cable (044)

Note: (044)

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

8

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

9

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

10

Gravely 00924300

Gas Line, Bulk .25 I.D. x 38 Long
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00924300

Gas Line, Bulk .25 I.D. x 27 Long
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00924300

Gas Line, Bulk .25 I.D. x 17 Long (046, 048, 050)
(Superseded to 03278100)

Note: (046, 048, 050)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00924300

Gas Line, Bulk .25 I.D. x 14 Long (044)
(Superseded to 03278100)

Note: (044)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09258200

Valve, Fuel

$47.99

$

In Stock, Qty 20+

0

14

Gravely 06939100

Clamp, Hose Wire .490/.510 x .116

$3.99

$

In Stock, Qty 10

0

15

Gravely 00296851

Seat Plate Left Hand

$

$

Not available

16

Gravely 01614000

Tank, Fuel - Left Hand

$

$

Not available

17

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

18

Gravely 07049600

Bolt, Serrated Hex Flange Washer Head .312-18 x .75

$2.99

$

In Stock, Qty 5

0

19

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06100003

Screw,Machine 10-24 x 3/8 Slotted Hex

$1.99

$

In Stock, Qty 5

0

22

Gravely 00548400

Retainer .38 Push-On

$1.49

$

In Stock, only 2 left!

0

23

Gravely 06437500

Washer, Flat Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

24

Gravely 00289200

Shim, PTO Switch

$

$

Not available

25

Gravely 01614451

Console, Left Hand

$82.99

$

Usually ships in 4-12 days

0

26

Gravely 01528500

Cup Holder

$15.99

$

In Stock, only 2 left!

0

27

Gravely 06400004

Washer, Fender 3/16 x 3/4

$2.49

$

In Stock, only 3 left!

0

28

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0
