915044 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Kohler (SN: 005000 - 009999) Parking Brake Parts Diagram

40" Zero-Turn Mower, 17hp Kohler

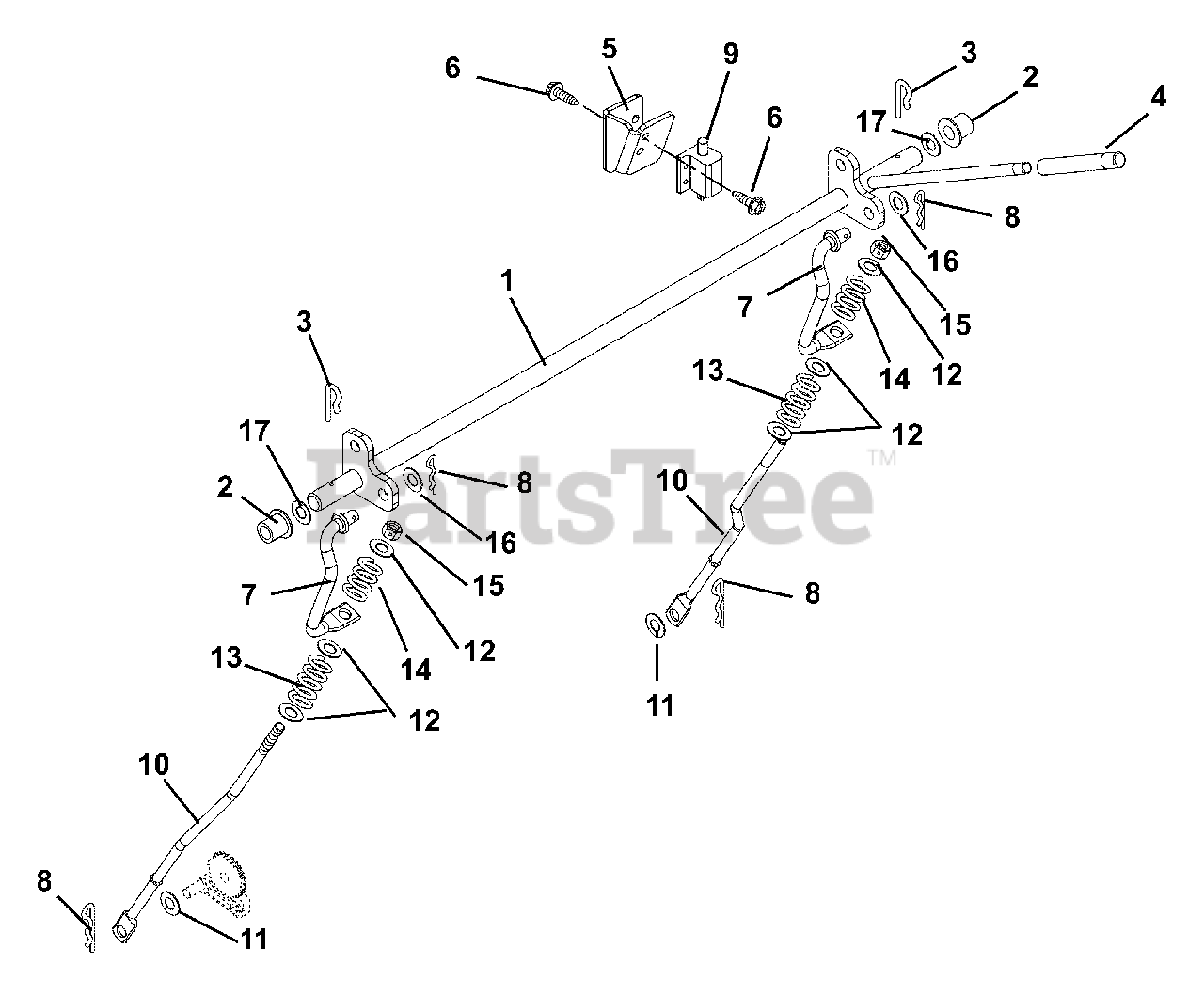

Parking Brake Parts Diagram

  • Title

1

Gravely 01604100

WMT, ZOOM BRAKE ROD

$

$

Not available

2

Gravely 045787

BSHG-FLG .630X1.000X.625 NY
(Superseded to 05517400)

$

$

Not available

3

Gravely 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

4

Gravely 043197

GRIP,HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 00183700

BRACKET, BRAKE SWITCH

$

$

Not available

6

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

7

Gravely 01589200

ROD-OVER CENTER

$

$

Not available

8

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

10

Gravely 01589100

ROD-PARK BRAKE EZT

$17.99

$

In Stock, only 1 left!

0

11

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 08300600

SG-COMP .045X.50X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 7

0

14

Gravely 039611

SPRING, COMPRESSION
(Superseded to 08300028)

$4.99

$

In Stock, Qty 7

0

15

Gravely 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06408900

WSHR-FL-STL .627X.990X.032

$

$

Not available
