915044 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Kohler (SN: 005000 - 009999) Mower Deck Lift Parts Diagram

40" Zero-Turn Mower, 17hp Kohler

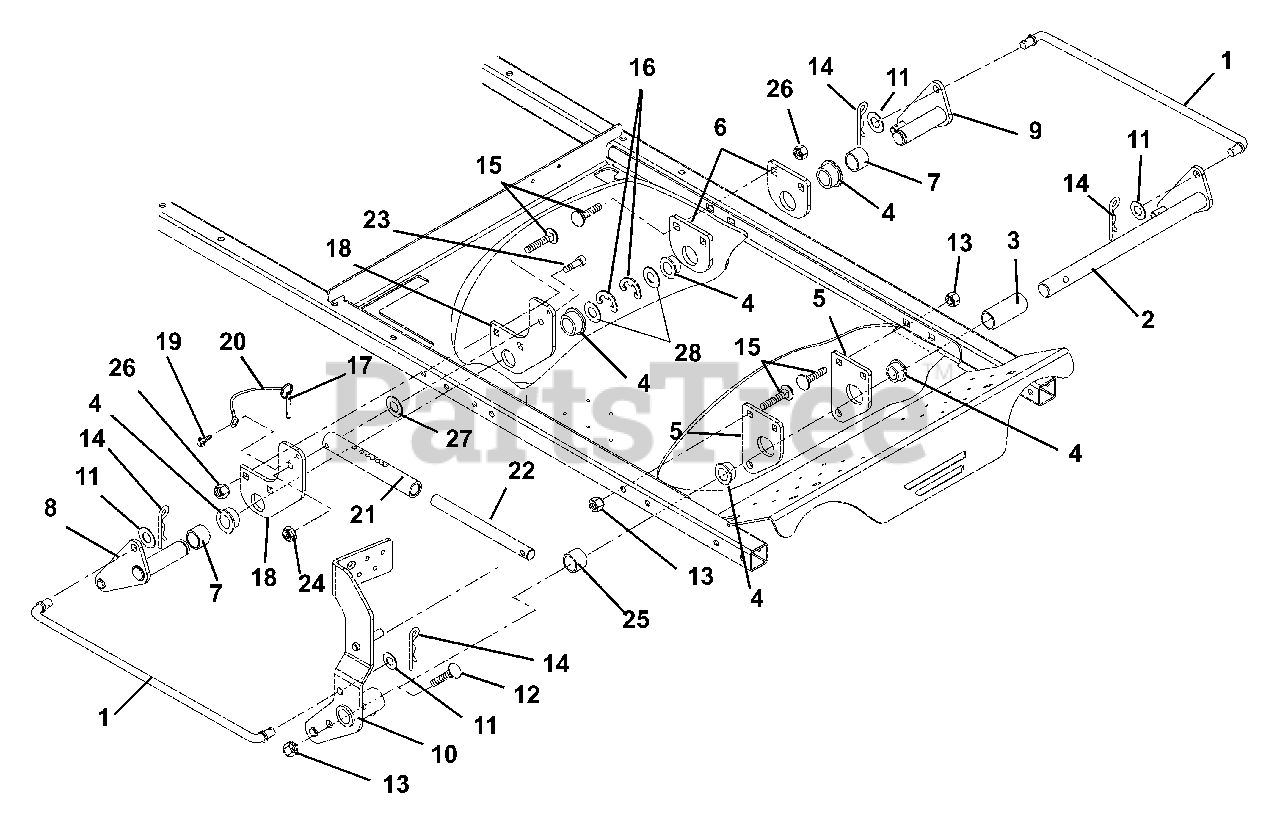

Mower Deck Lift Parts Diagram

  • Title

1

Gravely 00270200

ROD,DRAG LINK

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 00186200

WELDMENT,FRONT LIFT

$74.99

$

Usually ships in 4-12 days

0

3

Gravely 01592200

BUSHING, FRONT

$

$

Not available

4

Gravely 036872

BSHG-FLG 1.000X1.12X.62X1.50BR
(Superseded to 05503500)

$12.99

$

In Stock, Qty 20+

0

5

Gravely 00182851

BRACKET, FRONT PIVOT

$

$

Not available

6

Gravely 00175851

BRACKET,REAR PIVOT

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 01591800

BSHG-SPCR 1.032X1.250X.88 PM

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 01591700

WELDMENT, LIFT, REAR - RH

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 01591600

WELDMENT, LIFT, REAR - LH

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 00161600

WMT, FOOT PEDAL

$

$

Not available

11

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

13

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 05716800

RG-RTNG .822X1.500X.050 TYP E

$3.49

$

In Stock, only 3 left!

0

17

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 00182251

MOUNT, REAR LIFT

$11.99

$

Usually ships in 4-12 days

0

19

Gravely 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06927100

CBL,HOOD

$14.99

$

In Stock, only 1 left!

0

21

Gravely 00165000

TUBE, LIFT STOP

$

$

Not available

22

Gravely 00165100

ROD, LIFT

$

$

Not available

23

Gravely 07000004

BLT, SKH SHLD .31-18X2.25

$

$

Not available

24

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 00182500

BSHG, SPCR 1.032X1.25X.25 PM

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

28

Gravely 06445300

WSHR-FL-STL 1.12X1.500X.092 YZ

$

$

Not available
