915044 (ZT 1740) - Gravely 40" Zero-Turn Mower, 17hp Kohler (SN: 005000 - 009999) Engine, Exhaust, Belts And Idlers Parts Diagram

40" Zero-Turn Mower, 17hp Kohler

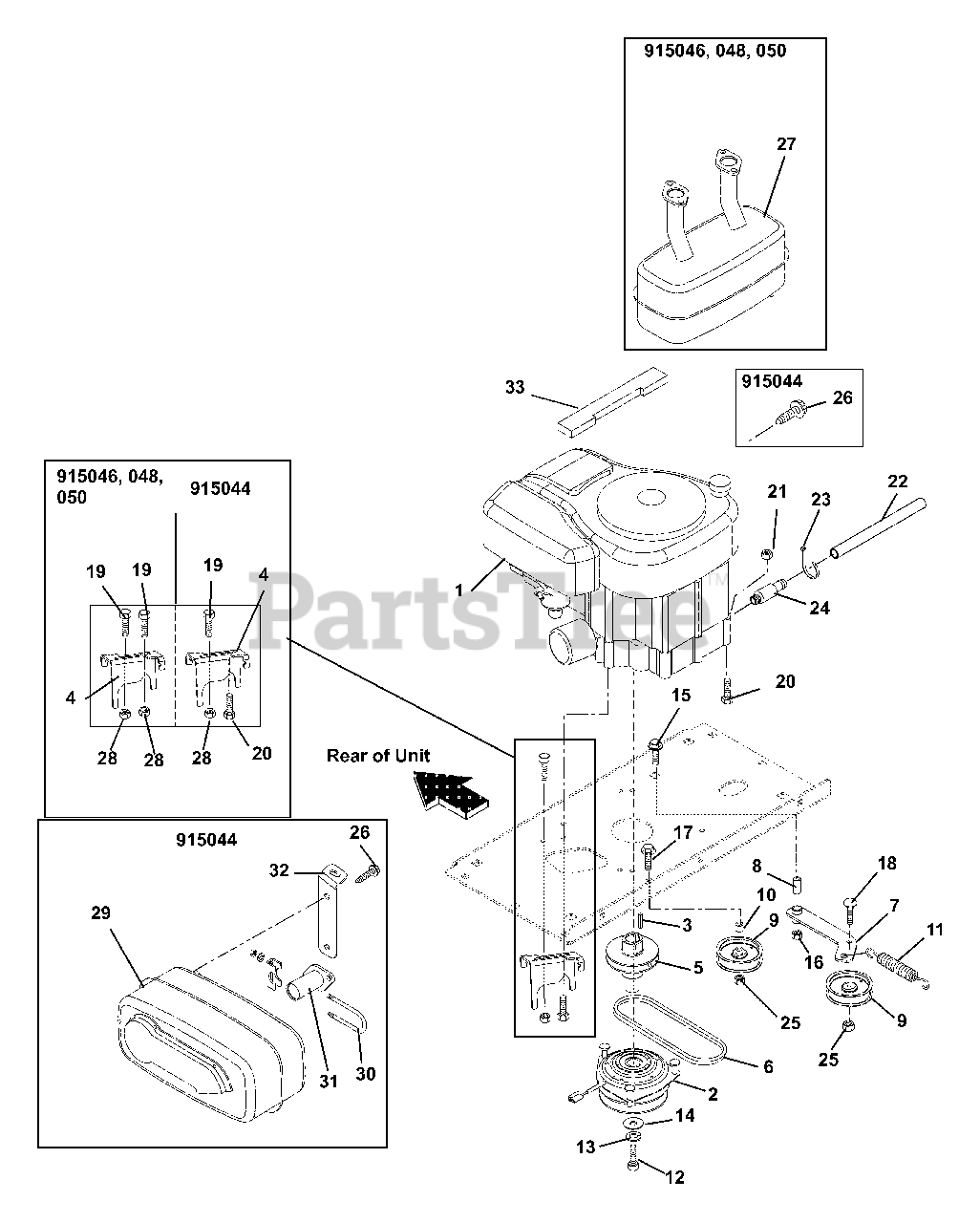

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title
1

Gravely 08200005

ENGINE, KOHLER COURAGE

Note: (044)

$

$

Not available

Gravely 08200006

ENGINE, 19HP KOHLER

Note: (046)

$

$

Not available

Gravely 08200008

ENGINE, 23HP KOHLER

Note: (048)

$

$

Not available

Gravely 08200008

ENGINE, 23HP KOHLER

Note: (050)

$

$

Not available

2

Gravely 04915400

CLUTCH, ELECTRIC

$465.99

$

In Stock, only 2 left!

0

3

Gravely 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 00363751

STOP, CLUTCH

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 01602500

EXTENSION SHAFT
(Superseded to 00363200)

$323.99

$

Usually ships in 4-12 days

0

6

Gravely 07241400

BELT,HA WRAPPED

$52.99

$

In Stock, only 1 left!

0

7

Gravely 00186300

WMT, IDLER
(Superseded to 51516000)

$164.99

$

Usually ships in 4-12 days

0

8

Gravely 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 3 left!

0

9

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

10

Gravely 00186400

BSHG,SPCR .41 X .75 X .88 PM

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

12

Gravely 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

13

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

14

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

15

Gravely 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

16

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, only 3 left!

0

18

Gravely 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (044)

$1.49

$

In Stock, Qty 20+

0

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (046, 048, 050)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (046, 048, 050)

$2.99

$

In Stock, Qty 8

0

Gravely 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (044)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

Note: (046, 048, 050)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00191400

TUBE, OIL DRAIN

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$

$

Not available

24

Gravely 07067800

VALVE, OIL DRAIN

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (044)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 00185300

MUFFLER
(Superseded to 00391700)

Note: (046, 048, 050)

$134.99

$

In Stock, only 1 left!

0

28

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (046, 048, 050)

$1.49

$

In Stock, Qty 20+

0

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (044)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 00182400

MUFFLER, KOHLER COURAGE SINGLE
(Superseded to 51515900)

Note: (044)

$127.99

$

In Stock, only 1 left!

0

30

Gravely 00255400

MUFFLER CLAMP

Note: (044)

$6.49

$

In Stock, only 4 left!

0

31

Gravely 00253900

WMT, MANIFOLD
(Superseded to 00440000)

Note: (044)

$44.99

$

Usually ships in 4-12 days

0

32

Gravely 00255051

MUFFLER BRACKET
(Superseded to 00432000)

Note: (044)

$20.99

$

Usually ships in 4-12 days

0

33

Gravely 00277300

FOAM SEAL, 1.5"X3.5"X24"

$

$

Not available
