915043 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Briggs & Stratton (SN: 005000 & Above) Stabilizer And Roller Brackets With Roller Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Briggs & Stratton

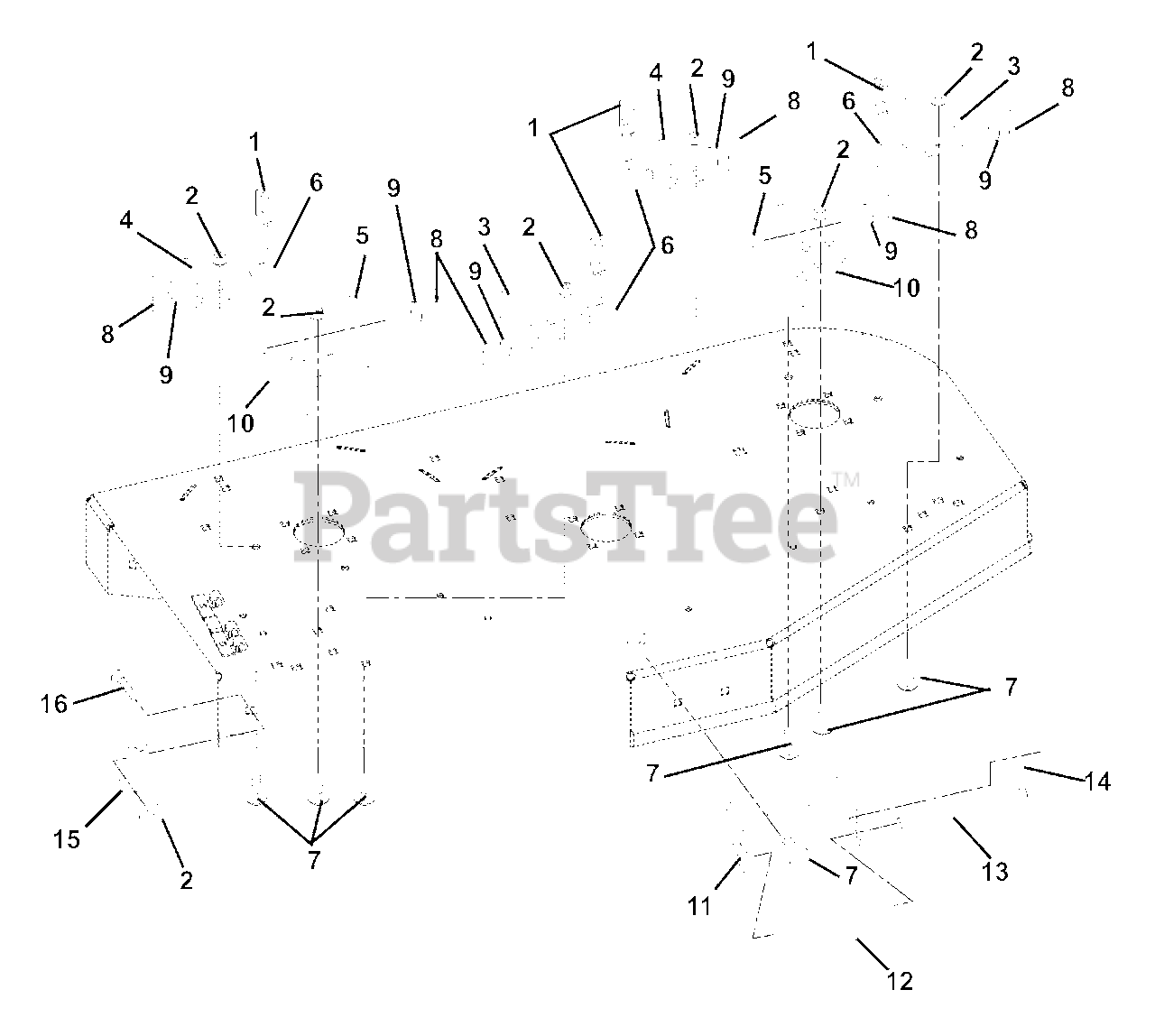

Stabilizer And Roller Brackets With Roller Parts Diagram

  • Title

1

Ariens 00160000

DECK LINK
(Superseded to 03967600)

$34.99

$

In Stock, only 3 left!

0

2

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01590251

BRACKET, MOUNT,FRONT

$38.99

$

In Stock, only 2 left!

0

4

Ariens 01604551

BRACKET, REAR MOUNT

$46.99

$

Usually ships in 4-12 days

0

5

Ariens 01573551

BRACKET, STABILIZER

$33.99

$

Usually ships in 4-12 days

0

6

Ariens 01590400

TRUNNION-.50

$48.99

$

In Stock, only 4 left!

0

7

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

8

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

10

Ariens 00270200

ROD,DRAG LINK

$26.99

$

Usually ships in 4-12 days

0

11

Ariens 00355651

BRACKET, ROLLER MOUNT

$61.99

$

In Stock, only 4 left!

0

12

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

13

Ariens 00356500

PIN, ROLLER

$34.99

$

In Stock, only 1 left!

0

14

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

15

Ariens 01599151

BRACKET, CHUTE LOCK

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0
