915043 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Briggs & Stratton (SN: 000101 - 004999) Steering Controls Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Briggs & Stratton

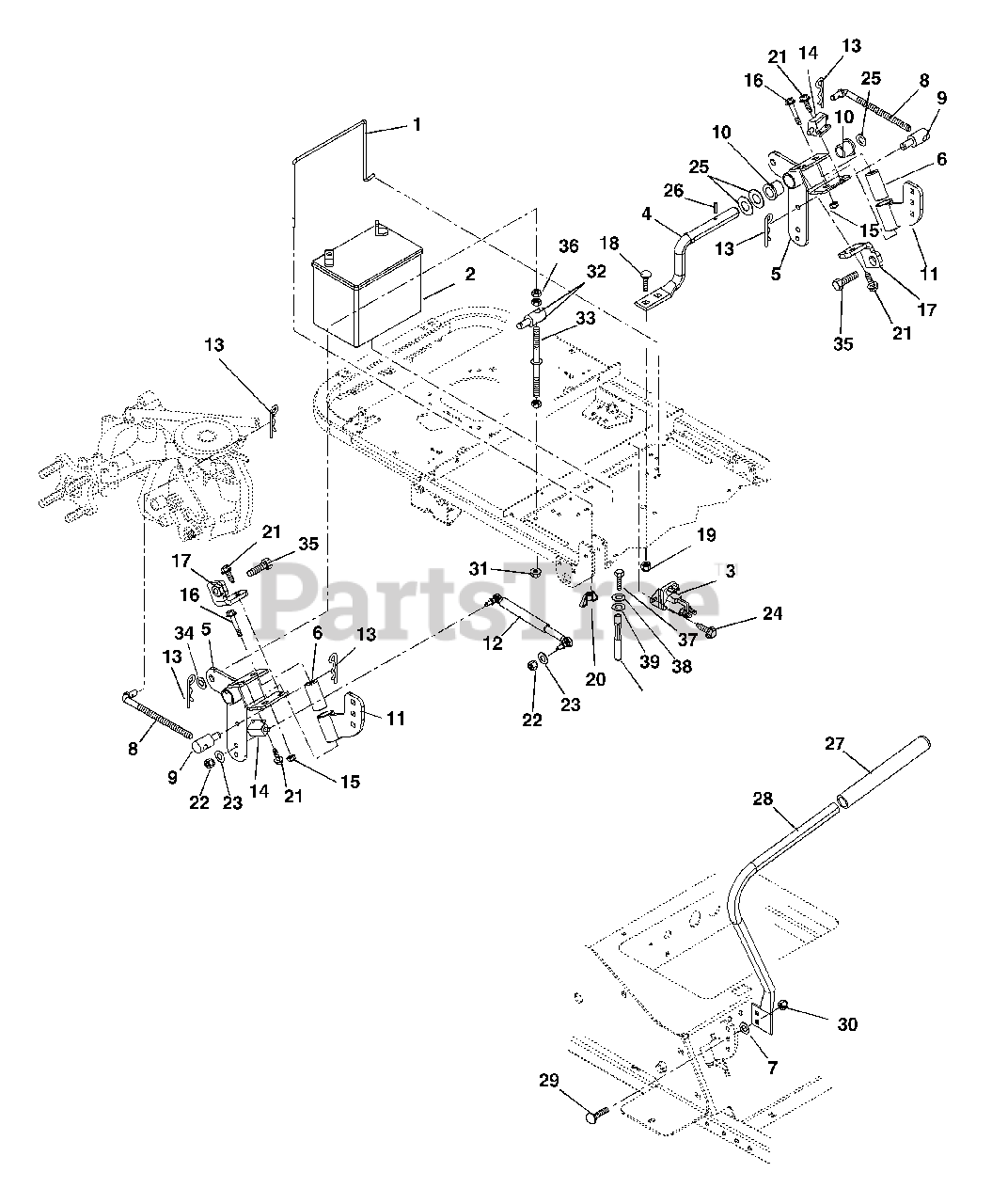

Steering Controls Parts Diagram

  • Title

1

Ariens 01533400

BATTERY ROD

$25.99

$

Usually ships in 4-12 days

0

2

Ariens 01554800

BATTERY, 300 CCA 10U1L

Note: (12 Volt, 330 CCA, 50 Min. Reserve Cap.) (043)

$

$

Not available

2

Ariens 03621100

BATTERY W/ TUBE

Note: (502)

$

$

Not available

3

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

4

Ariens 01581800

ROD PIVOT

$

$

Not available

5

Ariens 01604300

WMT, CONTROL

$75.99

$

In Stock, only 1 left!

0

6

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

7

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

8

Ariens 00186900

LINK,WIREFORM

$

$

Not available

9

Ariens 02493000

PIVOT, ROD (TRUNNION ) .50

$

$

Not available

10

Ariens 01591100

BUSHING-1"X.75"X1"

$

$

Not available

11

Ariens 01604400

WMT, HANDLEBAR

$

$

Not available

12

Ariens 00188700

DAMPER

$97.99

$

In Stock, only 2 left!

0

13

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

15

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

17

Ariens 00184400

WMT, HANDLE STOP

$

$

Not available

18

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

19

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

21

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

22

Ariens 06538600

NUT-HEX M8-1.25 YWZC

$

$

Not available

23

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 17

0

26

Ariens 05802100

PIN-ROLL .188X1.13

$1.99

$

Usually ships in 4-12 days

0

27

Ariens 00188900

GRIP

$13.99

$

In Stock, only 2 left!

0

28

Ariens 01598551

HANDLEBAR WLDM'T RH

$

$

Not available

28

Ariens 01598651

HANDLEBAR WLDM'T LH

$79.99

$

Usually ships in 4-12 days

0

29

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$2.99

$

Usually ships in 4-12 days

0

30

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 00184900

TRACKING ROD

$30.99

$

Usually ships in 4-12 days

0

34

Ariens 06541900

NUT-LK-JAM-PTCH 1.00-20

$30.99

$

Usually ships in 4-12 days

0

35

Ariens 05900004

SCR-SKH .25-20X1.25 PL

$

$

Not available

36

Ariens 00162200

TRUNNION

$20.99

$

Usually ships in 4-12 days

0

37

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 00187100

ROD

$61.99

$

In Stock, only 2 left!

0
