915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 009999) Seat And Seat Support Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

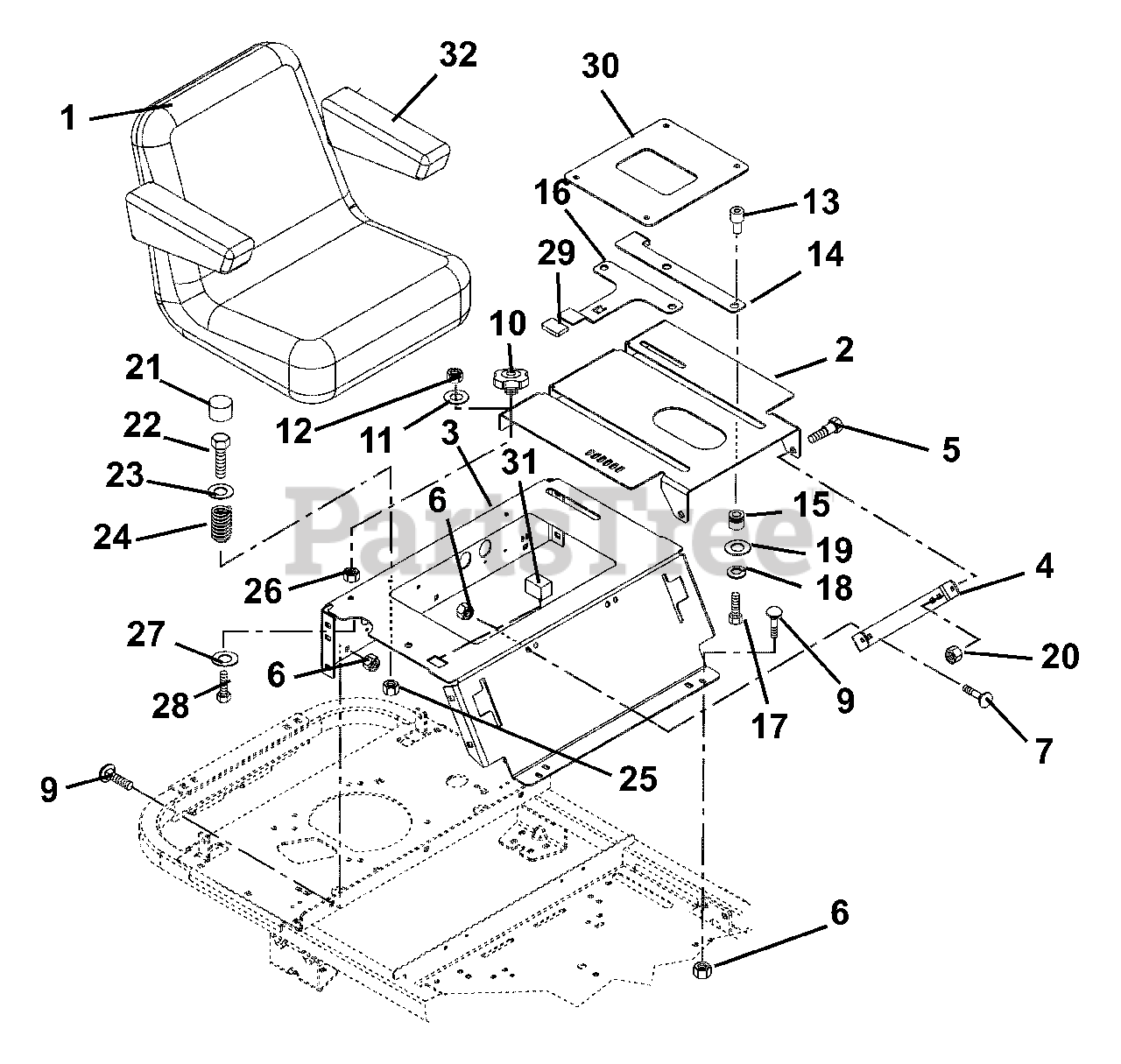

Seat And Seat Support Parts Diagram

  • Title

1

Gravely 01599200

Seat with Arm
(Superseded to 00366300)

$

$

Not available

2

Gravely 00182751

Seat Plate

$

$

Not available

3

Gravely 00183351

Seat Support

$

$

Not available

4

Gravely 00174151

Bracket, Seat Plate

$

$

Not available

5

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

6

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

8

Gravely 04935700

Hour Meter, Quartz
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

9

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

10

Gravely 07534800

Knob, Clamping .312-18 Nyloc

$3.49

$

In Stock, Qty 20+

0

11

Gravely 06437500

Washer-Flat-Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00182100

Spacer, Seat Top

$

$

Not available

14

Gravely 00181351

Seat Stop

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 00183100

Spacer, Seat Bottom

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 00183200

Lever, Seat Adjustment

$

$

Not available

17

Gravely 05963700

Bolt-Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06439700

Washer-Flat-Steel .344 x1.375 x .075
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 00337700

Hub Cap

$2.99

$

In Stock, Qty 20+

0

22

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 00571600

Spring, Compression 2.9 x 2.02 O.D.

$

$

Not available

25

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06439200

Washer-Flat-Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06221300

Bolt-Round Head Square Neck .31-18 x 3.50 Grade 5
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 00189000

Grip

$

$

Not available

30

Gravely 00250751

Seat Support Plate

$45.99

$

Usually ships in 4-12 days

0

31

Gravely 00539300

Plug, Headlight Switch

$9.99

$

Usually ships in 4-12 days

0

32

Gravely 51512900

Armrest
(Superseded to 59204500)

$

$

Not available
