915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 009999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

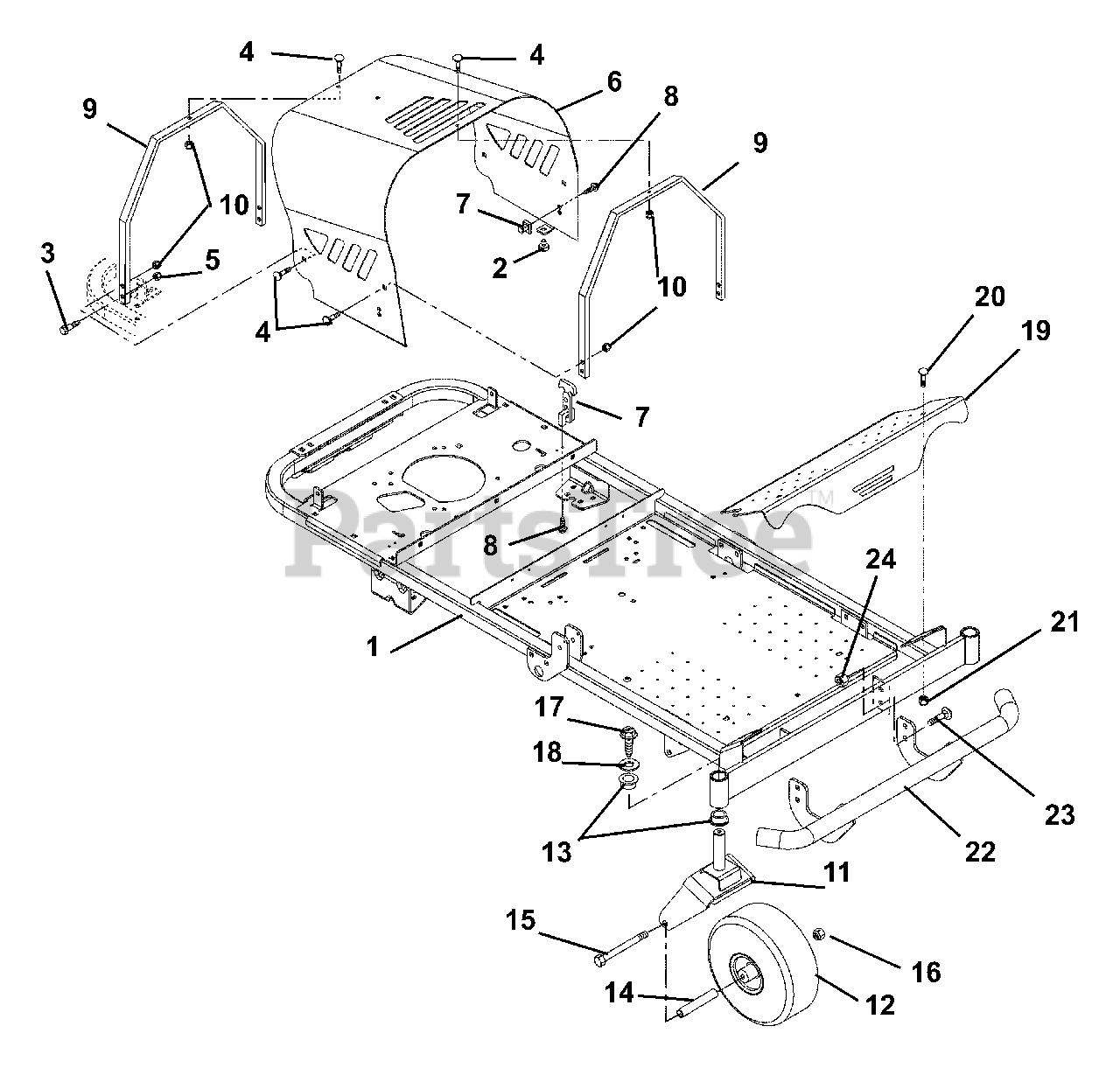

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title
1

Gravely 00182951

Weldment, Fixed Axle Frame

$

$

Not available

2

Gravely 07516000

Button Bumper

$0.99

$

In Stock, Qty 14

0

3

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

4

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 01605053

Hood, Zoom

$

$

Not available

7

Gravely 09079500

Latch, Rubber

$34.99

$

In Stock, only 1 left!

0

8

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 01605151

Brace, Hood

$114.99

$

In Stock, only 1 left!

0

10

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 01547051

Fork, Caster

$151.99

$

Usually ships in 4-12 days

0

12

Gravely 01588100

Assembly, Tire 4 x 11- 2 Ply
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

13

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

14

Gravely 00278500

Spacer, Wheel

$13.99

$

In Stock, Qty 20+

0

15

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

16

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07417100

Screw, Tapping .38-16 x 1.25 Hex Washer Head
(Superseded to 07414700)

$2.99

$

In Stock, only 3 left!

0

18

Gravely 06443400

Washer, Flat Steel .38 x 1.50 x .125
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

19

Gravely 00164253

Foot Rest

$

$

Not available

20

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

21

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 01589551

Bumper, Zoom

$

$

Not available

23

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

24

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+
