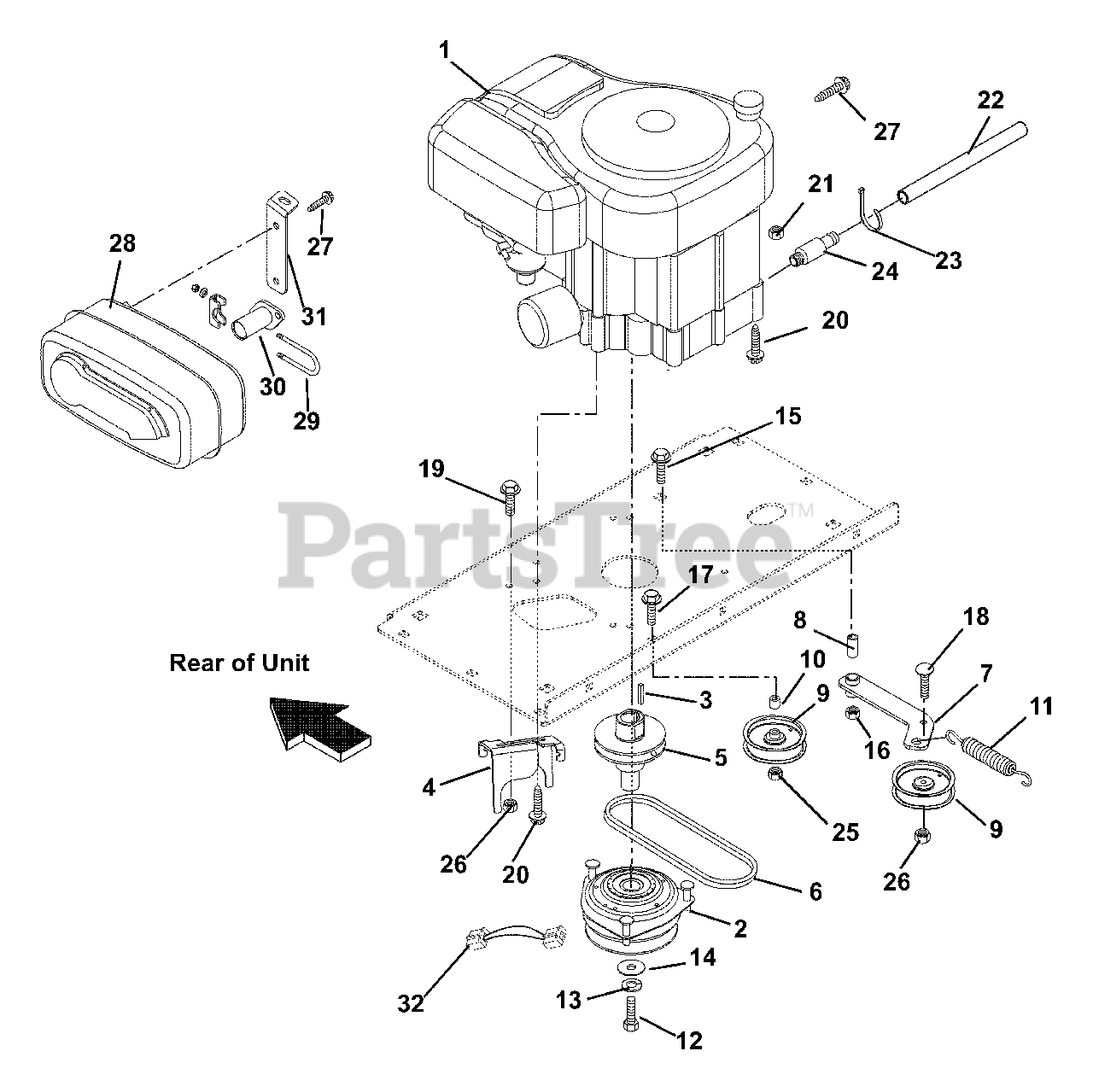

915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 009999) Engine, Exhaust, Belts And Idlers Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Gravely 51512400

Engine, 15HP Kohler

$

$

Not available

2

Gravely 03643100

Clutch/Brake, Electric

$296.99

$

Usually ships in 4-12 days

0

3

Gravely 06604300

Key, Square .25 x 1.50 x .25 SAE 8630 OR SAE 1035

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 00363751

Clutch Stop

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 01602500

Extension Shaft
(Superseded to 00363200)

$323.99

$

Usually ships in 4-12 days

0

6

Gravely 07221000

V-Belt A-Section 25.1 x .495

$33.99

$

Usually ships in 4-12 days

0

7

Gravely 00186300

Weldment, Idler
(Superseded to 51516000)

$164.99

$

Usually ships in 4-12 days

0

8

Gravely 055164500

Bushing, Sleeve .50 x .75 x 1.56

$

$

Not available

9

Gravely 07312500

Pulley, Idler 4.00
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

10

Gravely 00186400

Spacer

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

12

Gravely 05966700

Bolt, Hex .44-20 x 4.50 Grade 8
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

13

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

14

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

15

Gravely 06225500

Bolt, Round Head Square Neck .50-13 x 2.50 Grade 5

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06224400

Bolt, Round Head Square Neck .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

18

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06545400

Nut 5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00191400

Tube, Oil Drain

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

24

Gravely 07067800

Valve, Oil Drain

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 06537200

Nut, Locking, Jam, Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 00182400

Muffler, Kohler Courage Single
(Superseded to 51515900)

$127.99

$

In Stock, only 1 left!

0

29

Gravely 00255400

Clamp, Muffler

$6.49

$

In Stock, only 4 left!

0

30

Gravely 00253900

Weldment, Manifold
(Superseded to 00440000)

$44.99

$

Usually ships in 4-12 days

0

31

Gravely 00255051

Bracket, Muffler
(Superseded to 00432000)

$20.99

$

Usually ships in 4-12 days

0

32

Gravely 09087000

Adapter, Clutch Harness

$

$

Not available
