915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 005000 - 009999) Baffles And Chute Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

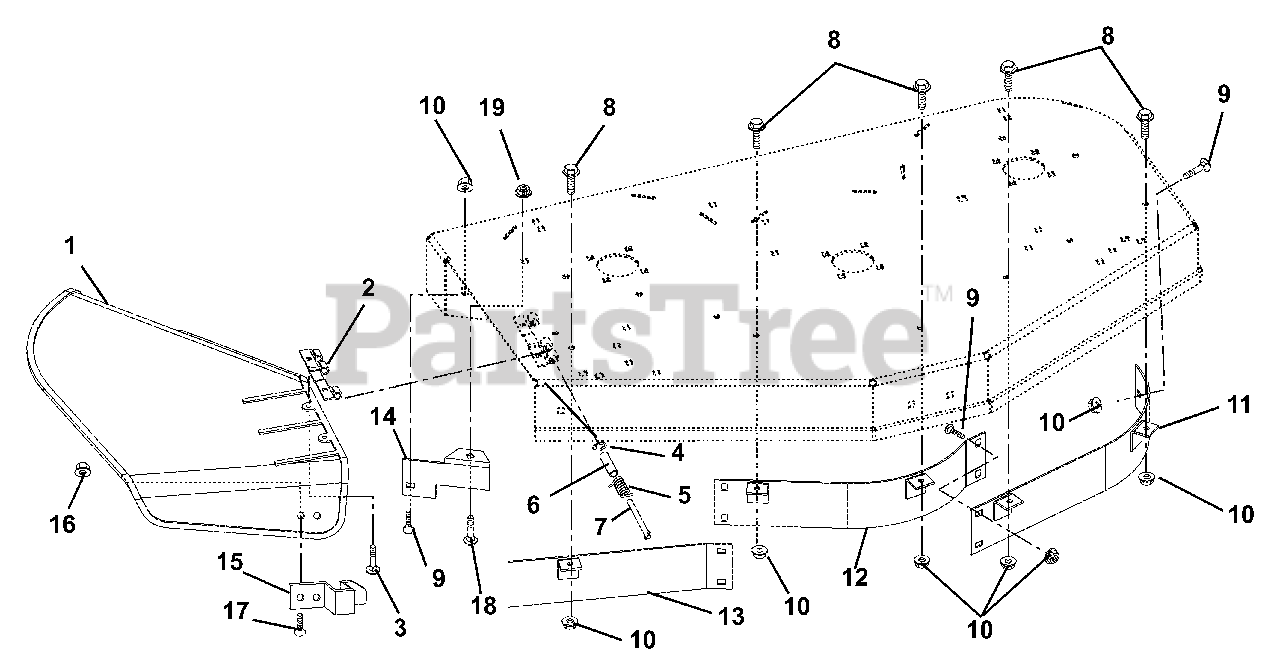

Baffles And Chute Parts Diagram

  • Title

1

Gravely 01585500

Deflector, Chute

$78.99

$

In Stock, only 1 left!

0

2

Gravely 02709551

Hinge, Plate

$27.99

$

In Stock, only 1 left!

0

3

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 05706300

Ring, Retaining External .312 x .025

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 035996

Spring, Torsion .095 x .50 x 1.00
(Superseded to 08307200)

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 035997

Bushing, Sleeve
(Superseded to 02202900)

$5.99

$

In Stock, only 4 left!

0

7

Gravely 03624200

Pin

$51.99

$

In Stock, only 1 left!

0

8

Gravely 07049600

Bolt, Serrated Hex Flange Washer Head .312-18 x .75

$2.99

$

In Stock, Qty 5

0

9

Gravely 06220800

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06545400

Nut-5/16-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 01576151

Weldment, Upper Left Baffle-40"

$72.99

$

Usually ships in 4-12 days

0

12

Gravely 01576251

Weldment, Upper Center Baffle-40"

$69.99

$

Usually ships in 4-12 days

0

13

Gravely 01576351

Weldment, Upper Right Baffle-40"

$66.99

$

Usually ships in 4-12 days

0

14

Gravely 01576751

Deflector, 40"

$34.99

$

In Stock, only 1 left!

0

15

Gravely 01597751

Flat Spring

$20.99

$

Usually ships in 4-12 days

0

16

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

19

Gravely 06545500

Nut-3/8-16 Flange Nylon
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
