915042 (ZT 1540) - Gravely 40" Zero-Turn Mower, 15hp Kohler (SN: 000101 - 004999) Stabilizer And Roller Brackets With Roller Parts Diagram

40" Zero-Turn Mower, 15hp Kohler

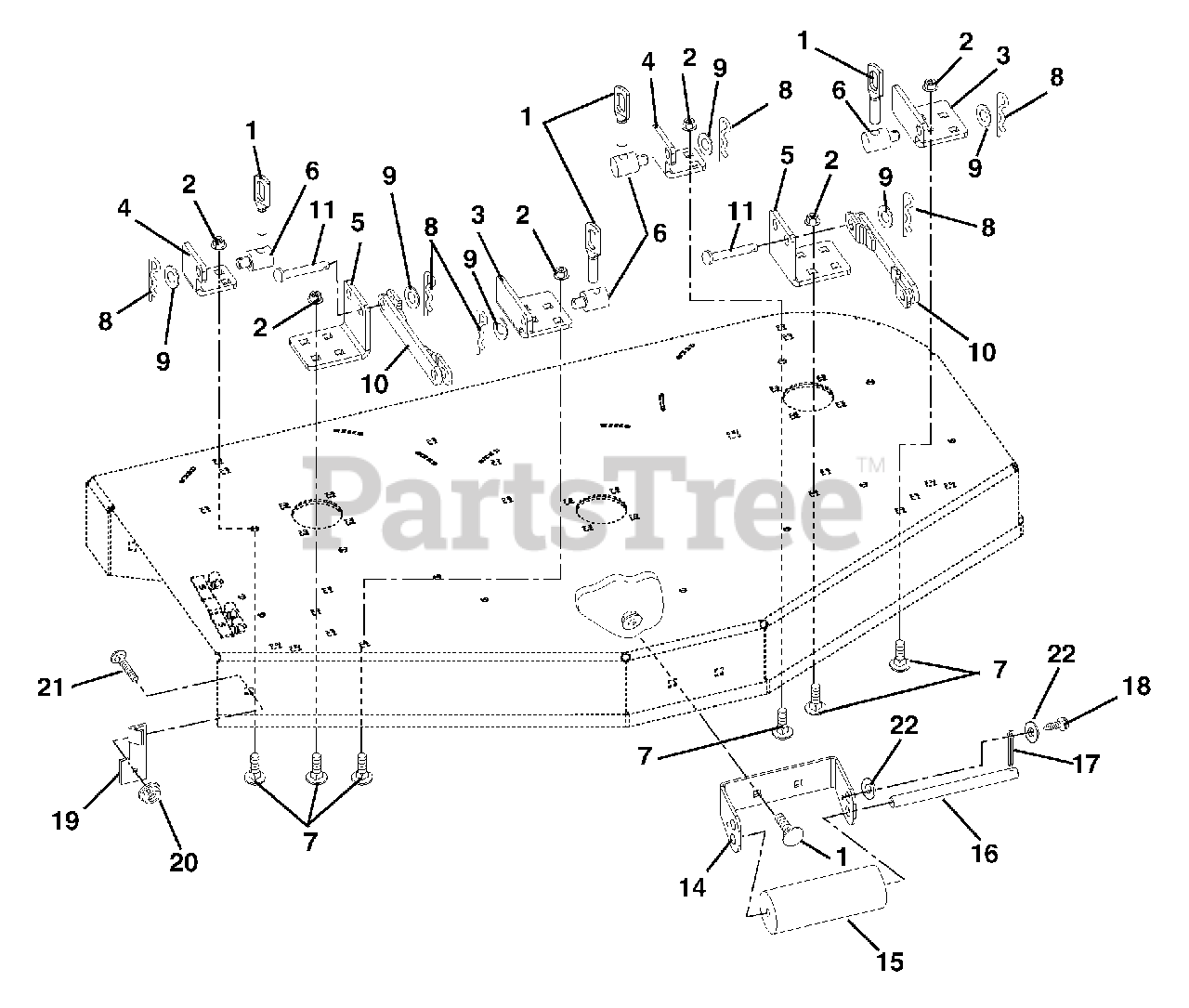

Stabilizer And Roller Brackets With Roller Parts Diagram

  • Title

1

Gravely 00160000

Deck Link
(Superseded to 03967600)

$34.99

$

In Stock, only 3 left!

0

2

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01590251

Bracket, Mount, Front

$38.99

$

In Stock, only 2 left!

0

4

Gravely 01604551

Bracket, Rear Mount

$46.99

$

Usually ships in 4-12 days

0

5

Gravely 01573551

Bracket, Stabilizer

$33.99

$

Usually ships in 4-12 days

0

6

Gravely 01590400

Trunnion

$48.99

$

In Stock, only 4 left!

0

7

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 06714900

Pin, Hair, External

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06436400

Washer-Flat-STL.511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 01573651

Weldment, Stabilizer Arm
(Superseded to 00270200)

$26.99

$

Usually ships in 4-12 days

0

11

Gravely 036568

Clevis Pin, .491/.496 x 1.25
(Superseded to 06821600)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

14

Gravely 01572951

Bracket, Roller Mount

$66.99

$

Usually ships in 4-12 days

0

15

Gravely 039563

Roller
(Superseded to 03114100)

$22.99

$

In Stock, Qty 20+

0

16

Gravely 01575600

Pin, Retainer

$55.99

$

Usually ships in 4-12 days

0

17

Gravely 06713000

Pin, Cotter .25 x 1.00

$1.49

$

In Stock, only 2 left!

0

18

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 01599151

Bracket, Chute Lock

$34.99

$

Usually ships in 4-12 days

0

20

Gravely 06534900

Nut-Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

22

Gravely 06437200

Washer, Flat Steel .344 x .688 x .06
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
