915040 (ZT 2252) - Gravely 52" Zero-Turn Mower, 22hp Briggs & Stratton (SN: 000101 & Above) Steering Controls Parts Diagram

52" Zero-Turn Mower, 22hp Briggs & Stratton

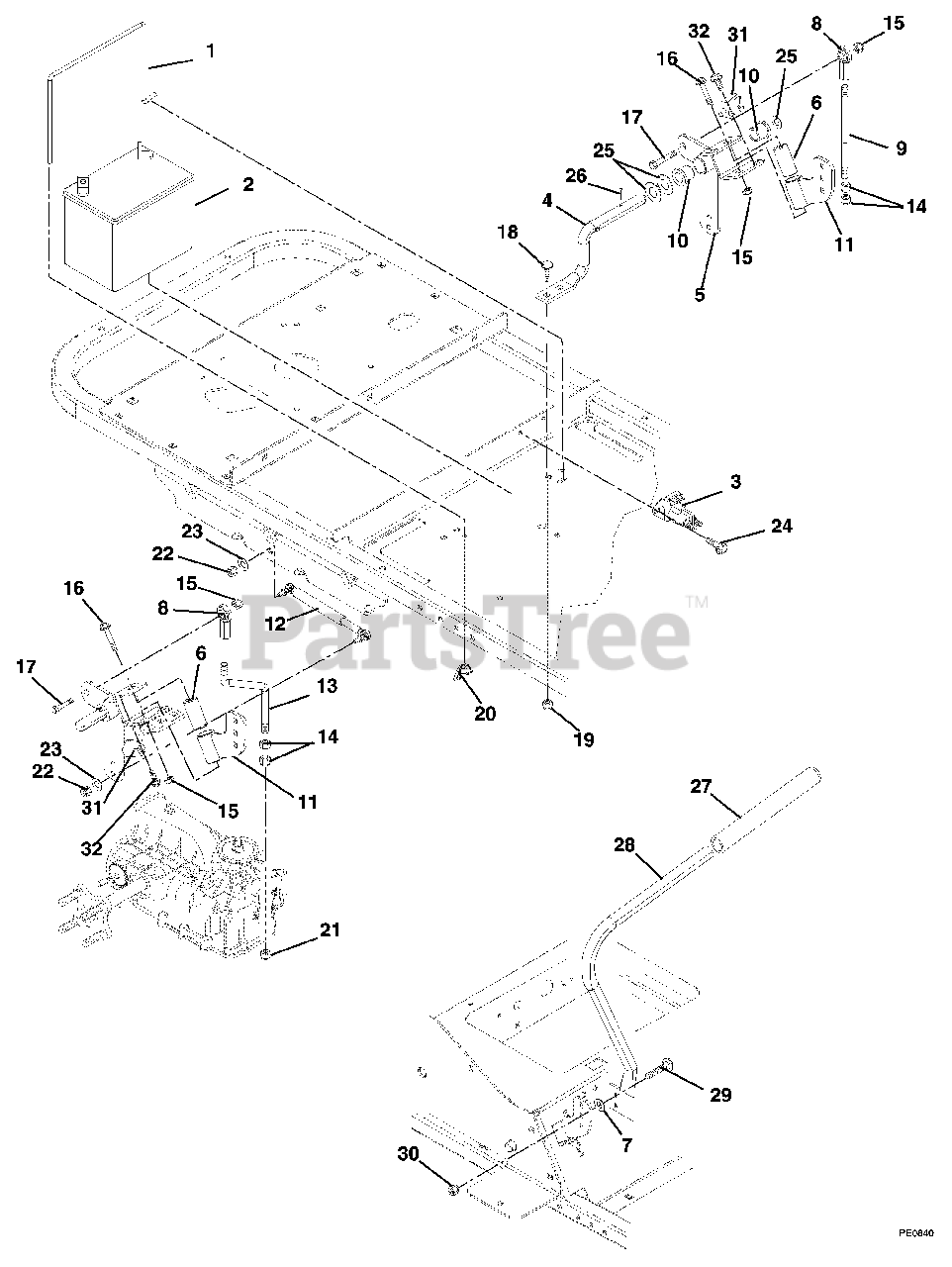

Steering Controls Parts Diagram

  • Title

1

Gravely 01533400

Battery Rod

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 01554800

Battery (12 Volt, 330 CCA, 50 Min. Reserve Cap.) (034, 036, 038, 040)

Note: (12 Volt, 330 CCA, 50 Min. Reserve Cap.) (034, 036, 038, 040)

$

$

Not available

3

Gravely 03679000

Solenoid
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

4

Gravely 01581800

Rod Pivot

$

$

Not available

5

Gravely 01604300

Weldment, Control

$75.99

$

In Stock, only 1 left!

0

6

Gravely 01581700

Spacer

$5.99

$

In Stock, Qty 20+

0

7

Gravely 06307200

Washer, Locking Extenal .326 x .599 x .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 050350

Rod End, .50 Right Hand
(Superseded to 03461700)

$

$

Not available

9

Gravely 01569600

Rod, Transaxle Left Hand

$77.99

$

Usually ships in 4-12 days

0

10

Gravely 01591100

Bushing 1.00 x .75 x 1.00

$

$

Not available

11

Gravely 01604400

Weldment, Handlebar

$

$

Not available

12

Gravely 01589300

Damper

$113.99

$

In Stock, only 1 left!

0

13

Gravely 01569500

Rod, Transaxle Right Hand

$75.99

$

In Stock, only 2 left!

0

14

Gravely 06539500

Nut, Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05959900

Bolt, Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

17

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

18

Gravely 06226600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

19

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 13

0

21

Gravely 06544000

Nut, Jam Nyloc .50-20 Grade 2
(Superseded to 06500818)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 06538600

Nut, Hex M8-1.25

$

$

Not available

23

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 07411600

Screw, Tapping .25-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06444100

Washer, Flat Steel .754 x 1.00 x .032

$2.99

$

In Stock, Qty 17

0

26

Gravely 036146

Pin, Roll .188 x 1.13
(Superseded to 05802100)

$1.99

$

Usually ships in 4-12 days

0

27

Gravely 07534500

Grip, Handlebar

$27.99

$

In Stock, only 2 left!

0

28

Gravely 01598551

Handlebar, Right Hand

$

$

Not available

28

Gravely 01598651

Handlebar, Left Hand

$79.99

$

Usually ships in 4-12 days

0

29

Gravely 06209500

Bolt, Round Head Square Neck .31-18 x .88 Grade 5

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 03606600

Switch, Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

32

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0
