915039 (2048) - Ariens Zoom 48" Zero-Turn Mower, 20hp Briggs & Stratton (SN: 000101 & Above) Mower Deck Lift Parts Diagram

Zoom 48" Zero-Turn Mower, 20hp Briggs & Stratton

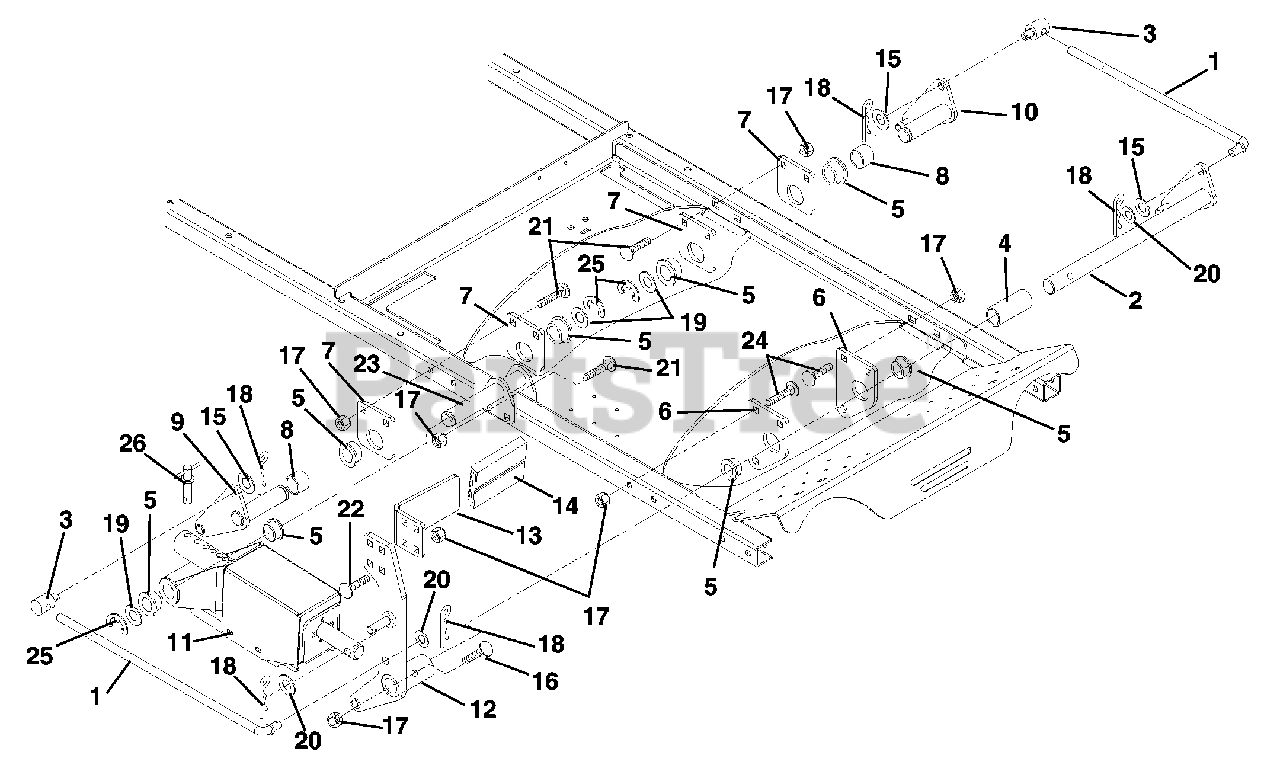

Mower Deck Lift Parts Diagram

  • Title
1

Ariens 01592000

LINKAGE, LIFT
(Superseded to 00270400)

$39.99

$

In Stock, only 2 left!

0

2

Ariens 01592100

WELDMENT, LIFT, FRONT

$

$

Not available

3

Ariens 01590400

TRUNNION-.50

$48.99

$

In Stock, only 4 left!

0

4

Ariens 01592200

BUSHING, FRONT

$

$

Not available

5

Ariens 05520100

BSHG-FLG1.020X1.385X.75X1.75NY

$11.99

$

In Stock, Qty 18

0

6

Ariens 01592351

BRACKET, MOUNT, FRONT
(Superseded to 00182851)

$

$

Not available

7

Ariens 01591951

BRACKET, MOUNT, REAR
(Superseded to 00175851)

$18.99

$

Usually ships in 4-12 days

0

8

Ariens 01591800

BSHG-SPCR 1.032X1.250X.88 PM

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 01591700

WELDMENT, LIFT, REAR - RH

$45.99

$

Usually ships in 4-12 days

0

10

Ariens 01591600

WELDMENT, LIFT, REAR - LH

$51.99

$

Usually ships in 4-12 days

0

11

Ariens 51509600

ZOOM LIFT ASSEMBLY

$

$

Not available

12

Ariens 01600200

WELDMENT, LIFT PEDAL MOUNT

$

$

Not available

13

Ariens 01600351

PEDAL, FOOT LIFT

$6.99

$

Usually ships in 4-12 days

0

14

Ariens 07527300

PAD,PEDAL
(Superseded to 00270100)

$3.49

$

In Stock, Qty 5

0

15

Ariens 06447600

WSHR-FL-STL.511X1.441X.125 BZ
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

17

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

20

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06226900

BLT-RDHDSQNK .38-16X2.50 G5BZ
(Superseded to 06224400)

$3.99

$

In Stock, Qty 20+

0

22

Ariens 06226600

BLT-RDHDSQNK .38-16X1.00 G5BZ
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

23

Ariens 01592500

WELDMENT, PIVOT MOUNT

$

$

Not available

24

Ariens 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

25

Ariens 05716800

RG-RTNG .822X1.500X.050 TYP E

$3.49

$

In Stock, only 3 left!

0

26

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

Usually ships in 4-12 days

0
