915035 (1640) - Ariens Zoom 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Frame, Hood And Footrest Parts Diagram

Zoom 40" Zero-Turn Mower, 16hp Briggs & Stratton

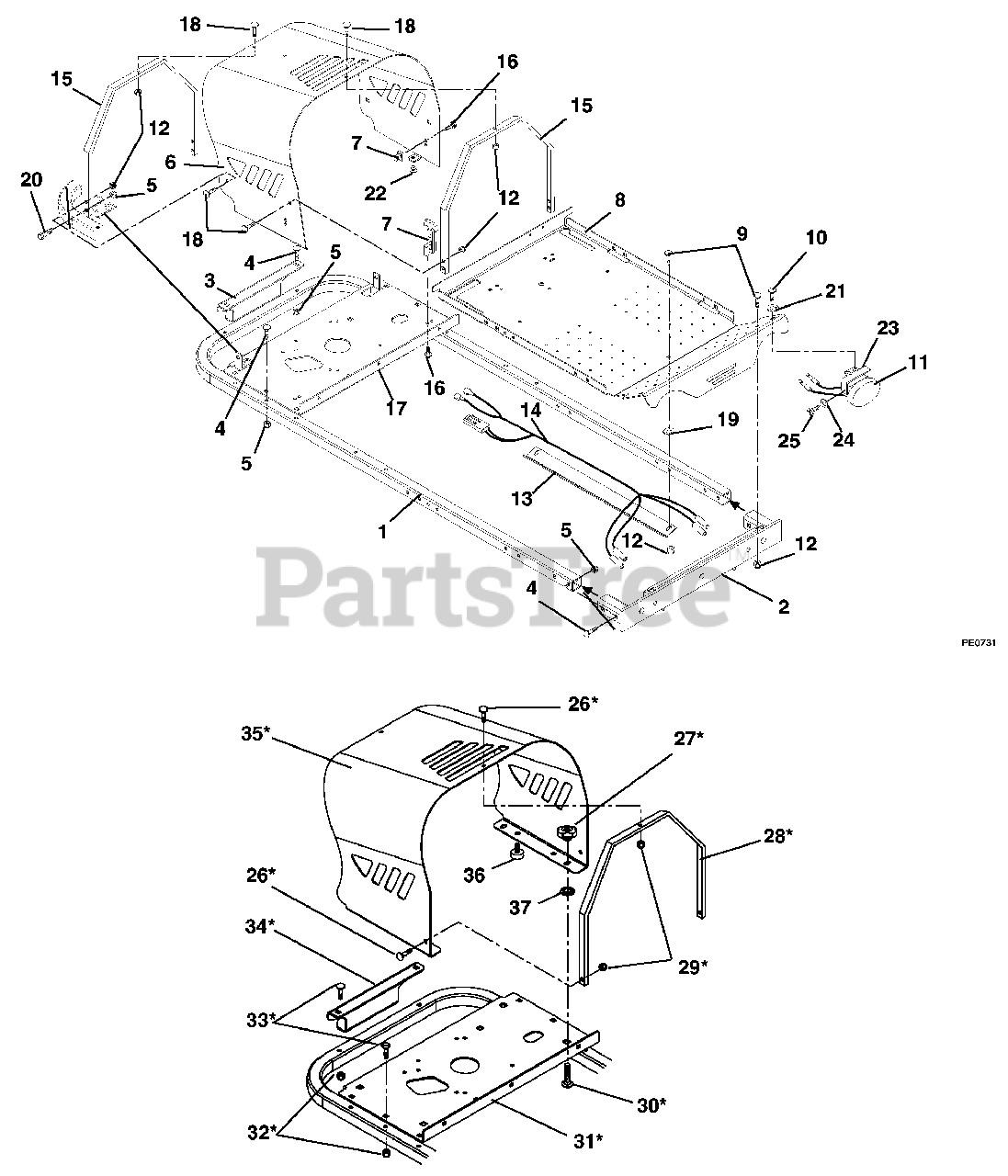

Frame, Hood And Footrest Parts Diagram

  • Title

1

Ariens 01581251

TUBE-FRAME BLK

$239.99

$

Usually ships in 4-12 days

0

2

Ariens 01600951

WMT, AXLE MOUNT

$

$

Not available

3

Ariens 01590151

TRAILER HITCH

$77.99

$

Usually ships in 4-12 days

0

4

Ariens 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

5

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01605059

HOOD, ZOOM

$148.99

$

Usually ships in 4-12 days

0

7

Ariens 09079500

LATCH, RUBBER

$34.99

$

In Stock, only 1 left!

0

8

Ariens 01578359

FOOTREST

$

$

Not available

9

Ariens 06226700

BLT-RDHDSQNK .31-18X.75 G5BZ
(Superseded to 06215700)

Note: (037, 039, 041, 313, 501)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06226700

BLT-RDHDSQNK .31-18X.75 G5BZ
(Superseded to 06215700)

Note: (035)

$2.49

$

In Stock, Qty 20+

0

10

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

Note: (037, 039, 041, 313, 501)

$

$

Not available

11

Ariens 01588200

LIGHT-CONS RIDE ON- SEE B-2124

Note: (Includes Halogen H3 12 Volt 55 Watt Bulb)(037, 039, 041, 313, 501)

$

$

Not available

12

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

Note: (037, 039, 041, 313, 501)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

Note: (035)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 01589951

BKT-HARNESS

Note: (037, 039, 041, 313, 501)

$22.99

$

Usually ships in 4-12 days

0

14

Ariens 01587900

HARNESS, LIGHT

Note: (037, 039, 041, 313, 501)

$

$

Not available

15

Ariens 01605151

BRACE, HOOD

$114.99

$

In Stock, only 1 left!

0

16

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 01605251

PLATE, ENGINE

$

$

Not available

18

Ariens 06227900

BLT-RDHDSQSHNK .31-18X.62 BKZC
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

Note: (037, 039, 041, 313, 501)

$3.49

$

In Stock, only 2 left!

0

20

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

21

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (037, 039, 041, 313, 501)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

23

Ariens 01603100

WMT, LIGHT BRACKET

Note: (037, 039, 041, 313, 501)

$64.99

$

Usually ships in 4-12 days

0

24

Ariens 06311200

WSHR-LK 4MMX1MM REG CL ZINC

Note: (037, 039, 041, 313, 501)

$

$

Not available

25

Ariens 05980400

SCREW-M4X.07X8 SHCS CLZNC

Note: (037, 039, 041, 313, 501)

$1.99

$

In Stock, only 2 left!

0

26

Ariens 06227900

BLT-RDHDSQSHNK .31-18X.62 BKZC
(Superseded to 06212200)

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$3.49

$

In Stock, Qty 20+

0

28

Ariens 01595351

BRACE, HOOD

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$

$

Not available

29

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$1.49

$

In Stock, Qty 20+

0

31

Ariens 01577751

BKT-ENG MOUNT

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$87.99

$

Usually ships in 4-12 days

0

32

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06226800

BLT-RDHDSQNK .38-16X2.25 G5BZ
(Superseded to 06213400)

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$3.99

$

In Stock, only 2 left!

0

34

Ariens 01590151

TRAILER HITCH

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$77.99

$

Usually ships in 4-12 days

0

35

Ariens 01595459

HOOD-ZOOM

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$

$

Not available

36

Ariens 07516000

BUTTON BUMPER

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$0.99

$

In Stock, Qty 14

0

37

Ariens 06514900

NUT-PUSH .312

Note: Model and serical number breaks for the hood and engine plate part number: 915035 >= 000987; 915037 >= 000545; 915039 >= 000472; 915041 >= 000322; 915501 >= 000128

$0.99

$

In Stock, Qty 20+

0
