915034 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Mower Brackets And Rollers Parts Diagram

40" Zero-Turn Mower, 16hp Briggs & Stratton

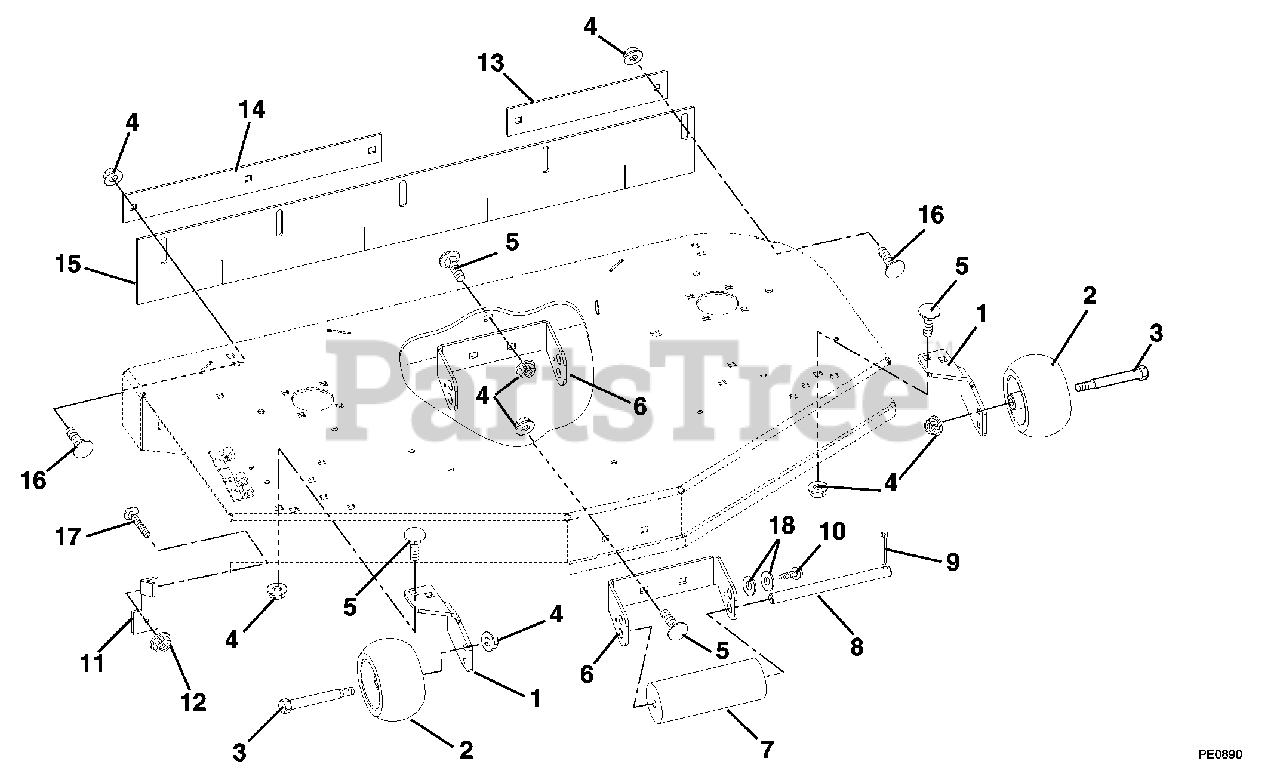

Mower Brackets And Rollers Parts Diagram

  • Title
1

Gravely 01574851

Bracket, Anti Scalp
(Superseded to 02950351)

$29.99

$

In Stock, Qty 10

0

2

Gravely 03471700

Wheel 5 x 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

3

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$6.99

$

In Stock, Qty 20+

0

4

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

6

Gravely 01572951

Bracket, Roller Mount

$66.99

$

Usually ships in 4-12 days

0

7

Gravely 039563

Roller
(Superseded to 03114100)

$22.99

$

In Stock, Qty 20+

0

8

Gravely 01575600

Pin, Retainer

$55.99

$

Usually ships in 4-12 days

0

9

Gravely 06713000

Pin, Cotter .25 x 1.00

$1.49

$

In Stock, only 2 left!

0

10

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 01599151

Bracket, Chute Lock

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 06544600

Nut, Spin Lock Flange .375-16
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 01577451

Bar, Left Hand Retainer Striper

$17.99

$

In Stock, only 1 left!

0

14

Gravely 01576951

Bar, Retaining Striper (034)

Note: (034)

$

$

Not available

14

Gravely 01577651

Bar, Retaining Striper (036)

Note: (036)

$

$

Not available

14

Gravely 01577351

Bar, Retaining Striper (038, 040)

Note: (038, 040)

$27.99

$

In Stock, only 1 left!

0

15

Gravely 01576800

Striper, Rubber-40" (034)

Note: (034)

$60.99

$

Usually ships in 4-12 days

0

15

Gravely 01577500

Striper, Rubber-44" (036)

Note: (036)

$78.99

$

Usually ships in 4-12 days

0

15

Gravely 01577000

Striper, Rubber-48" (038)

Note: (038)

$82.99

$

Usually ships in 4-12 days

0

15

Gravely 01577200

Striper, Rubber-52" (040)

Note: (040)

$

$

Not available

16

Gravely 06226600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 12

0

17

Gravely 06227700

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06224100)

$2.49

$

In Stock, only 4 left!

0

18

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
