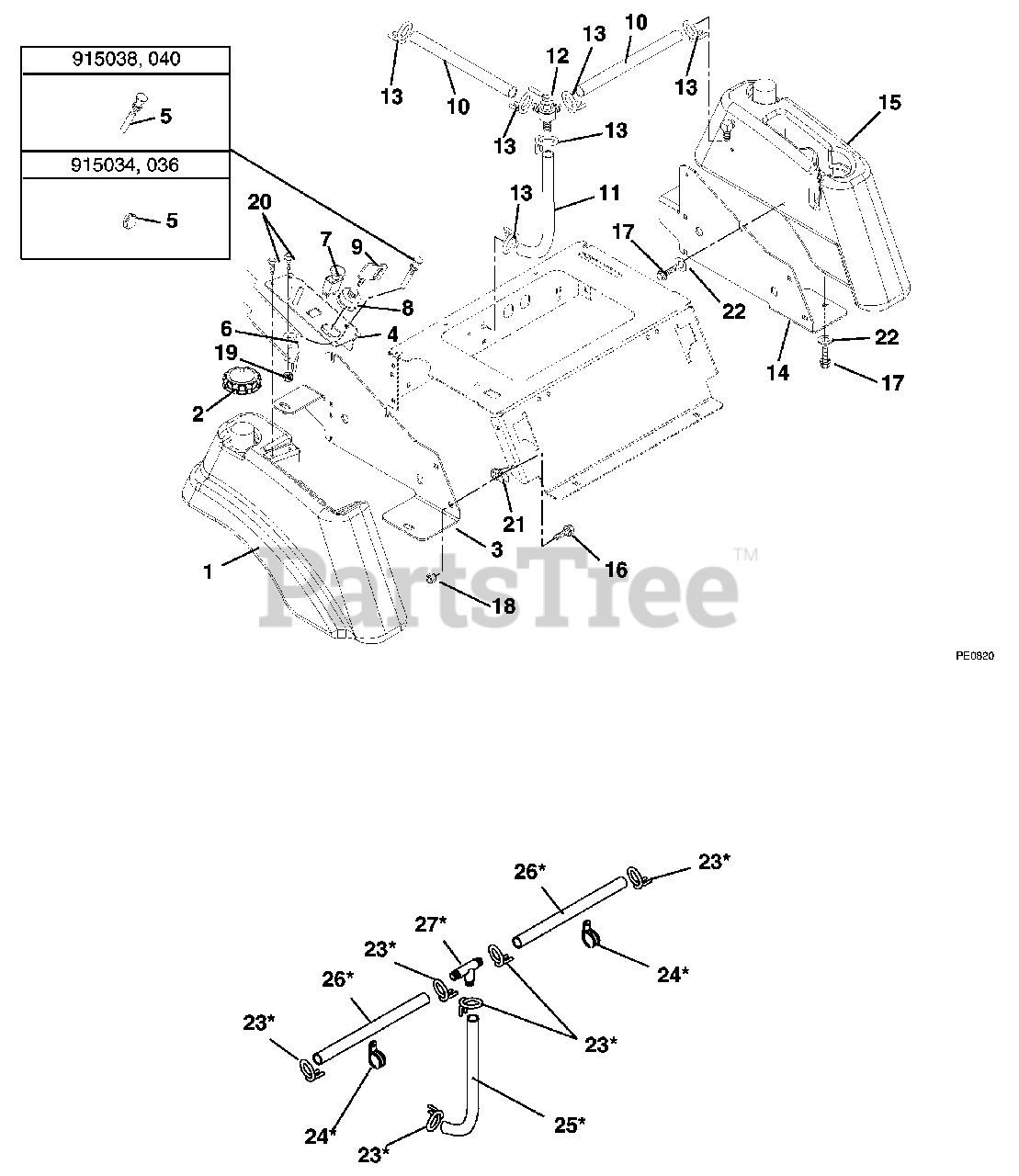

915034 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Fuel Tank Parts Diagram

40" Zero-Turn Mower, 16hp Briggs & Stratton

Fuel Tank Parts Diagram

  • Title

1

Gravely 01575800

Tank, Fuel - Right Hand

$

$

Not available

NS

Gravely 07511400

Fuel Fitting Bushing

$3.49

$

In Stock, Qty 20+

0

2

Gravely 01538400

Fuel Cap

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 01578751

Seat Plate/Tank Support Right Hand

$

$

Not available

4

Gravely 01579451

Bracket, Control

$

$

Not available

5

Gravely 01588400

Choke Cable(038, 040)

Note: (038, 040)

$68.99

$

In Stock, only 1 left!

0

5

Gravely 00529900

Hole Plug, Plastic .44 Hole (034, 036)

Note: (034, 036)

$

$

Not available

6

Gravely 01588500

Throttle Cable (038, 040)

Note: (038, 040)

$

$

Not available

6

Gravely 01588600

Throttle Cable (034, 036)

Note: (034, 036)

$64.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

Switch, Clutch

$25.99

$

In Stock, Qty 20+

0

8

Gravely 01588300

Key Switch

$30.99

$

In Stock, only 1 left!

0

9

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

10

Gravely 021134

Gas Line, Bulk .25 I.D. x 22 Long
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 021134

Gas Line, Bulk .25 I.D. x 14 Long (038, 040)
(Superseded to 03278100)

Note: (038, 040)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 021134

Gas Line, Bulk .25 I.D. x 5.5 Long (034, 036)
(Superseded to 03278100)

Note: (034, 036)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09258200

Valve, Fuel

$47.99

$

In Stock, Qty 20+

0

13

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

$3.99

$

In Stock, Qty 10

0

14

Gravely 01578851

Seat Plate Left Hand

$

$

Not available

15

Gravely 01575700

Tank, Fuel - Left Hand

$

$

Not available

16

Gravely 06227000

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

17

Gravely 07049600

Bolt, Serrated Hex Flange Washer Head .312-18 x .75

$2.99

$

In Stock, Qty 5

0

18

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 00548400

Retainer .38 Push-On

$1.49

$

In Stock, only 2 left!

0

22

Gravely 06437500

Washer, Flat Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

23

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$3.99

$

In Stock, Qty 10

0

24

Gravely 050394

Clamp, Cushioned Steel
(Superseded to 06908200)

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 021134

Gas Line, Bulk .25 I.D. x 14 Long (038, 040)
(Superseded to 03278100)

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$1.49

$

In Stock, Qty 20+

0

25

Gravely 021134

Gas Line, Bulk .25 I.D. x 5.5 Long (034, 036)
(Superseded to 03278100)

Note: (034, 036)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 021134

Gas Line, Bulk .25 I.D. x 22 Long
(Superseded to 03278100)

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$1.49

$

In Stock, Qty 20+

0

27

Gravely 01588800

T-Fitting

Note: 915034 >= 001280; 915036 >= 000636; 915038 >= 000910; 915040 >= 000578

$28.99

$

Usually ships in 4-12 days

0
