915034 (ZT 1640) - Gravely 40" Zero-Turn Mower, 16hp Briggs & Stratton (SN: 000101 & Above) Frame, Hood And Footrest Parts Diagram

40" Zero-Turn Mower, 16hp Briggs & Stratton

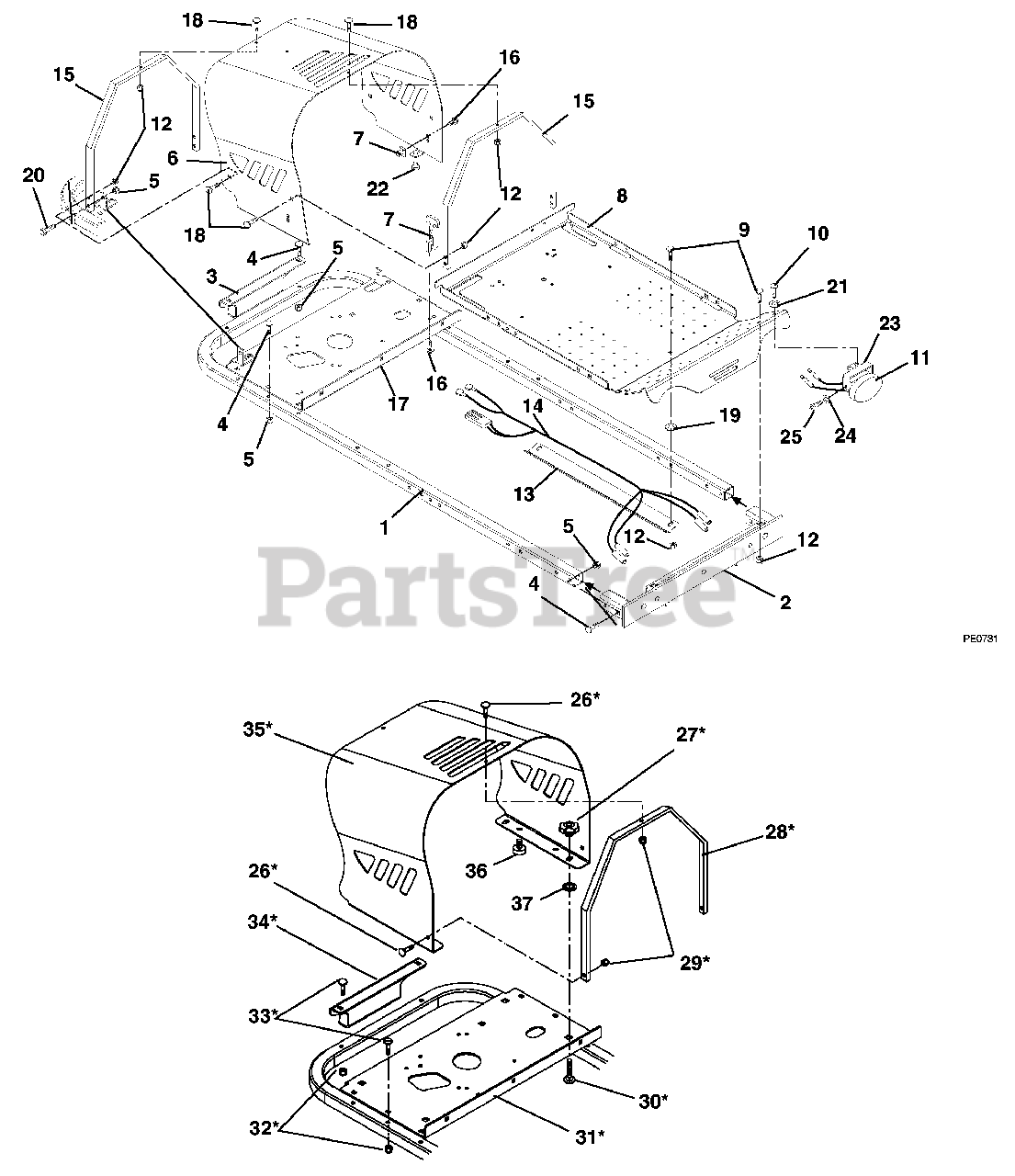

Frame, Hood And Footrest Parts Diagram

  • Title

1

Gravely 01581251

Tube, Frame

$239.99

$

Usually ships in 4-12 days

0

2

Gravely 01600951

Weldment, Axle Mount

$

$

Not available

3

Gravely 01590151

Trailer Hitch

$77.99

$

Usually ships in 4-12 days

0

4

Gravely 06226800

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06213400)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 06544500

Nut, Locking Top Flange .38-16
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 01605053

Hood, Zoom

$

$

Not available

7

Gravely 09079500

Latch, Rubber

$34.99

$

In Stock, only 1 left!

0

8

Gravely 01578353

Footrest

$176.99

$

Usually ships in 4-12 days

0

9

Gravely 06226700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06215700)

Note: (915036, 038, 040)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06226700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06215700)

Note: (915034)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 039062

Screw-Cap Button Head .31-18 x .50 Grade 5
(Superseded to 07008100)

Note: (915036, 038, 040)

$

$

Not available

11

Gravely 71504100

Light Kit, ZoomXL/ ZTXL

Note: (Includes Halogen H3 12 Volt 55 Watt Bulb) (036, 038, 040)

$

$

Not available

12

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

Note: (915036, 038, 040)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

Note: 915034)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 01589951

Bracket, Harness

Note: (915036, 038, 040)

$22.99

$

Usually ships in 4-12 days

0

14

Gravely 01587900

Harness, Light

Note: (915036, 038, 040)

$

$

Not available

15

Gravely 01605151

Brace, Hood

$114.99

$

In Stock, only 1 left!

0

16

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 01605251

Plate, Engine

$

$

Not available

18

Gravely 06227900

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

Note: (915036, 038, 040)

$3.49

$

In Stock, only 2 left!

0

20

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

Note: (915036, 038, 040)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07516000

Button Bumper

$0.99

$

In Stock, Qty 14

0

23

Gravely 01603100

Bracket, Light

Note: (036, 038, 040)

$64.99

$

Usually ships in 4-12 days

0

24

Gravely 06311200

Washer, Locking 4MM x 1MM Regular Cone Lock

Note: (915036, 038, 040)

$

$

Not available

25

Gravely 05980400

Screw, Socket Head Cap M4 x .07 x 8

Note: (915036, 038, 040)

$1.99

$

In Stock, only 2 left!

0

26

Gravely 06227900

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06212200)

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$1.49

$

In Stock, Qty 20+

0

27

Gravely 07534800

Knob, Clamping .31-Nyloc

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$3.49

$

In Stock, Qty 20+

0

28

Gravely 01595351

Brace, Hood

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$

$

Not available

29

Gravely 06544400

Nut, Locking Top Flange .31-18
(Superseded to 06545400)

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$1.49

$

In Stock, Qty 20+

0

31

Gravely 01577751

Bracket, Engine Mount

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$87.99

$

Usually ships in 4-12 days

0

32

Gravely 06544500

Nut, Locking Top Flange .38-18
(Superseded to 06545500)

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06226800

Bolt, Round Head Square Neck .38-16 x 2.25 Grade 5
(Superseded to 06213400)

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$3.99

$

In Stock, only 2 left!

0

34

Gravely 01590151

Trailer Hitch

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$77.99

$

Usually ships in 4-12 days

0

35

Gravely 01595459

Hood Zoom

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$

$

Not available

36

Gravely 07516000

Button Bumper

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$0.99

$

In Stock, Qty 14

0

37

Gravely 040380

Nut, Push .312
(Superseded to 06514900)

Note: 915034 >= 000824; 915036 >= 000425; 915038 >= 000593; 915040 >= 000363

$0.99

$

In Stock, Qty 20+

0
